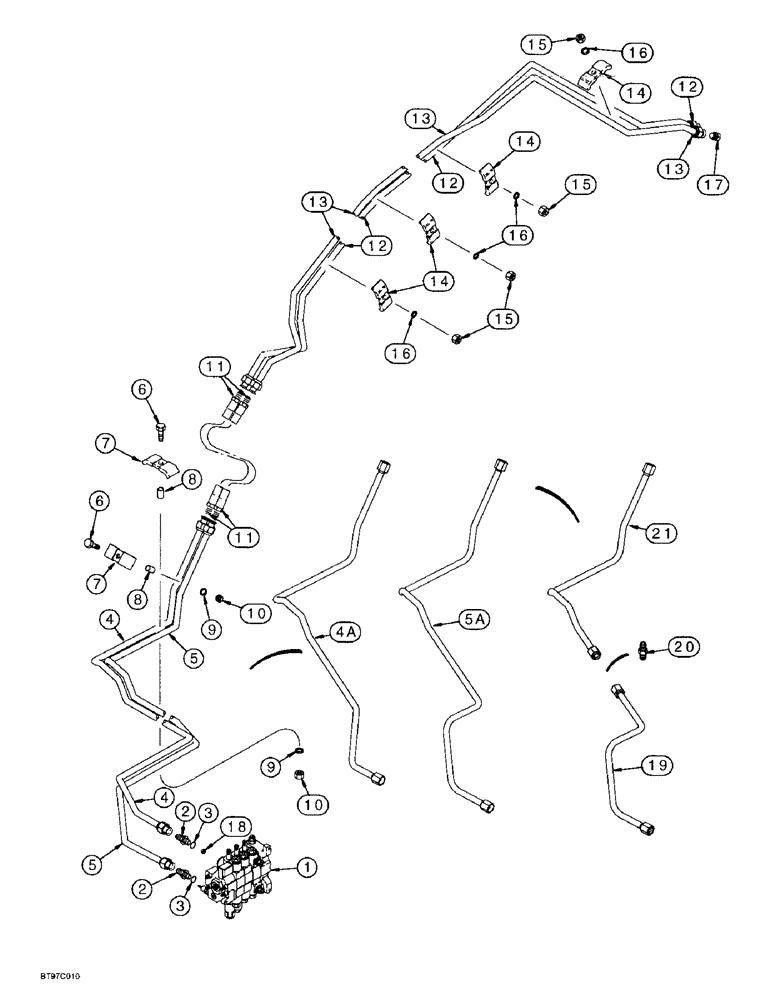

Запчасти Case 580L (8-016) - LOADER CLAM CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

113785A3

DISTRIBUTOR

VALVE ASSEMBLY, loader control, three-spool, see Figure 8-062, for mounting hardware see Figure 9-002

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

192122A1

TUBE

upper port loader valve clam section to hose at loader arm pivot, for service order P/N 190019A1 hose, 580L, Serial Range: -JJG0232658

1шт.

When replacing tube with a service hose, discard mating hose, Ref. 11. The service hose replaces the tube and hose combination.

1шт.

4

192122A1

TUBE

upper port loader valve clam section to hose at loader arm pivot, for service order P/N 190019A1 hose, 570LXT, Serial Range: -JJG0224613

1шт.

When replacing tube with a service hose, discard mating hose, Ref. 11. The service hose replaces the tube and hose combination.

1шт.

4a

225326A1

TUBE

upper port loader valve clam section to hose at loader arm pivot, services itself, 580L, Start Serial: JJG0232658

1шт.

4a

225326A1

TUBE

upper port loader valve clam section to hose at loader arm pivot, services itself, 570LXT, Start Serial: JJG0232658

1шт.

5

192124A1

TUBE

lower port loader valve clam section to hose at loader arm pivot, for service order P/N 190019A1 hose, 580L, Serial Range: -JJG0232658

1шт.

When replacing tube with a service hose, discard mating hose, Ref. 11. The service hose replaces the tube and hose combination.

1шт.

5

192124A1

TUBE

lower port loader valve clam section to hose at loader arm pivot, for service order P/N 190019A1 hose, 570LXT, Serial Range: -JJG0224613

1шт.

When replacing tube with a service hose, discard mating hose, Ref. 11. The service hose replaces the tube and hose combination.

1шт.

5a

225328A1

TUBE

lower port loader valve clam section to hose at loader arm pivot, used in production, for service order P/N 232945A1 and 232947A1 tubes and 218-435 connector, Ref 19-21, 580L, Start Serial: JJG0232658

1шт.

5a

225328A1

TUBE

lower port loader valve clam section to hose at loader arm pivot, used in production, for service order P/N 232945A1 and 232947A1 tubes and 218-435 connector, Ref 19-21, 570XLT, Start Serial: JJG0221613

1шт.

6

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

hex, 10-1.5 x 40 mm

2шт.

7

D138055

CLAMP

tube

2шт.

8

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

tube

2шт.

9

892-11010

LOCK WASHER,M10

2шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

11

138467A1

HOSE,12.7mm ID x 680mm L

680 mm/26-3/4 inch long, at loader arm pivot

2шт.

12

196824A1

TUBE

lower, on loader lift frame, port A, Replaces: P/N 192126A1

1шт.

13

196821A1

TUBE

upper, on loader lift frame, port B, Replaces: P/N 192128A1

1шт.

14

D138055

CLAMP

tube

4шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

16

892-11010

LOCK WASHER,M10

4шт.

17

218-776

PLUG,7/8"-14, 37 Degree

hex, 7/8-14 inch flare, not used on models with clam bucket, if used

2шт.

18

188058A1

ORIFICE

RESTRICTOR check, if used

1шт.

19

232945A1

TUBE

lower port at loader valve, if used

1шт.

20

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

CONNECTOR straight, large hex, 7/8-14 inch flare, if used

1шт.

21

232947A1

TUBE

lower port at loader valve, if used

1шт.

190019A1

HOSE

2380 mm/93-11/16 inch long

1шт.

When replacing tube with a service hose, discard mating hose, Ref. 11. The service hose replaces the tube and hose combination.

1шт.
