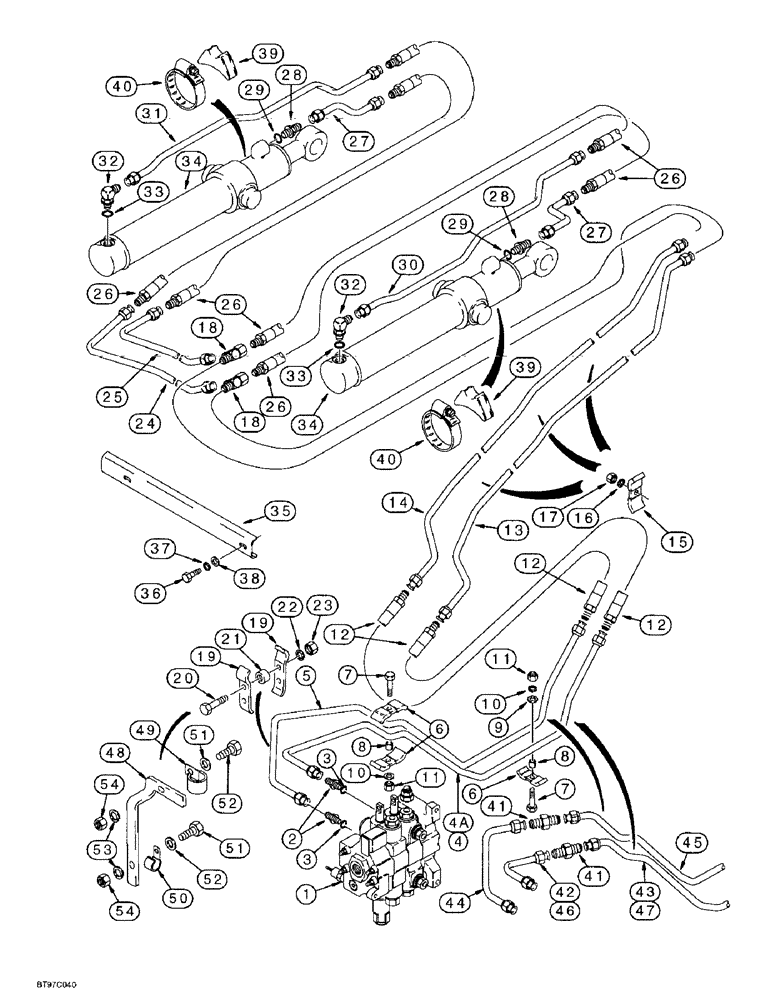

Запчасти Case 580L (8-012) - LOADER BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE ASSEMBLY, loader control, for correct assembly and components, see Figure 8-060 or 8-062, for mounting see Figure 9-002
1шт.
2
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
ADAPTER straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 3
2шт.
3
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
4
220174A1
TUBE
\ bucket section upper port, used in production, Replaces: P/N 192138A1 production tube, for service order 221139A1 and 221141A1 tubes and 218-435 connector, Ref. 41-43 on Figure 8-012, 580L, Serial Range: -JJG0232658
1шт.
4
220174A1
TUBE
bucket section upper port, used in production, Replaces: P/N 192138A1 production tube, for service order 221139A1 and 221141A1 tubes and 218-435 connector, Ref. 41-43 on Figure 8-012, 570LXT, Serial Range: -JJG0224613
1шт.
4a
232447A1
TUBE
bucket section upper port, used in production, for service order P/N 232934A1 and 232936A1 tubes and 218-435 connector, Ref. 41, 46 and 47 on Figure 8-001, 580L, Start Serial: JJG0232658
1шт.
4a
232447A1
TUBE
bucket section upper port, used in production, for service order P/N 232934A1 and 232936A1 tubes and 218-435 connector, Ref. 41, 46 and 47 on Figure 8-001, 570LXT, Start Serial: JJG0224613
1шт.
5
220169A1
TUBE
bucket section lower port, used in production, Replaces: P/N 192136A1 production tube, for service order P/N 221143A1 and 221146A1 tubes and 218-435 connector, Ref. 41, 44 and 45 on Figure 8-012
1шт.
6
D138055
CLAMP
tube
2шт.
7
814-10040
BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8
hex, 10-1.5 x 40 mm
2шт.
8
120303A1
SPACER,11mm ID x 15.82mm OD x 15mm Thk
tube
2шт.
10
892-11010
LOCK WASHER,M10
2шт.
11
829-1410
NUT,M10 x 1.5, Cl 10.9
2шт.
12
138467A1
HOSE,12.7mm ID x 680mm L
680 mm/26-3/4 inch long, at loader arm pivot
2шт.
13
192142A1
TUBE,15.88 mm OD
lower, on right-hand lift arm, from bucket section upper port to closed end of bucket cylinders, tractor 570LXT, Serial Range: -JJG0223064
1шт.
13
192142A1
TUBE,15.88 mm OD
lower, on right-hand lift arm, from bucket section upper port to closed end of bucket cylinders, tractor 580L, Serial Range: -JJG0219288
1шт.
13
196817A1
TUBE
lower, on right-hand lift arm, from bucket section upper port to closed end of bucket cylinders, tractor 570LXT, Start Serial: JJG0223064
1шт.
13
196817A1
TUBE
lower, on right-hand lift arm, from bucket section upper port to closed end of bucket cylinders, tractor 580L, Start Serial: JJG0219288
1шт.
14
192140A1
TUBE,15.88 mm OD
upper, on right-hand lift arm, from bucket section lower port to bucket cylinder rod end, tractor 580L, Serial Range: -JJG0226064
1шт.
14
192140A1
TUBE,15.88 mm OD
upper, on right-hand lift arm, from bucket section lower port to bucket cylinder rod end, tractor 570LXT, Serial Range: -JJG0219288
1шт.
14
196819A1
TUBE
upper, on right-hand lift arm, from bucket section lower port to bucket cylinder rod end, tractor 570LXT, Start Serial: JJG0223064
1шт.
14
196819A1
TUBE
upper, on right-hand lift arm, from bucket section lower port to bucket cylinder rod end, tractor 580L, Start Serial: JJG0219288
1шт.
15
D138055
CLAMP
tube
3шт.
16
892-11010
LOCK WASHER,M10
3шт.
17
829-1410
NUT,M10 x 1.5, Cl 10.9
3шт.
18
218-5220
TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run
swivel, 7/8-14 inch flare branch x flare x swivel, at upper lift frame crossover tube
2шт.
19
221733A1
SHIN
CLAMP tube, attaches to Ref. 5 tube above and Ref. 27 tube on Figure 8-002
2шт.
20
814-10040
BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8
hex, 10 - 1.5 x 40 mm
2шт.
21
120303A1
SPACER,11mm ID x 15.82mm OD x 15mm Thk
tube
2шт.
22
892-11010
LOCK WASHER,M10
2шт.
23
829-1410
NUT,M10 x 1.5, Cl 10.9
2шт.
24
192144A1
TUBE
crossover, rear, upper lift frame tube to rod end of bucket cylinder, tractor 570LXT, Serial Range: -JJG0223064
1шт.
24
192144A1
TUBE
crossover, rear, upper lift frame tube to rod end of bucket cylinder, tractor 580L, Serial Range: -JJG0219288
1шт.
24
196815A1
TUBE
HOSE, FLEXIBLE (Tube), Crossover, Rear, Upper lift frame tube to rod end of bucket cylinder, Tractor 570LXT, Start Serial: JJG0226064
1шт.
24
196815A1
TUBE
HOSE, FLEXIBLE (Tube), Crossover, Rear, Upper lift frame tube to rod end of bucket cylinder, Tractor 580L, Start Serial: JJG0219288
1шт.
25
192150A1
TUBE
crossover, front, lower lift frame tube to bucket cylinder closed end, tractor 570L XT, Serial Range: -JJG0223064
1шт.
25
192150A1
TUBE
crossover, front, lower lift frame tube to bucket cylinder closed end, tractor 580L, Serial Range: -JJG0219288
1шт.
25
196813A1
TUBE
HOSE, FLEXIBLE (Tube), Crossover, Front, Lower lift frame tube to bucket cylinder closed end, Tractor 570L XT, Start Serial: JJG0223064
1шт.
25
196813A1
TUBE
HOSE, FLEXIBLE (Tube), Crossover, Front, Lower lift frame tube to bucket cylinder closed end, Tractor 580L, Start Serial: JJG0219288
1шт.
26
136226A1
HOSE
840 mm/33 inch long, at bucket cylinders
4шт.
27
192152A1
HYD TUBE,15.88 mm OD
TUBE bucket cylinder rod end
2шт.
28
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
ADAPTER straight, 7/8-14 inch flare x O-ring boss
2шт.
29
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
30
192156A1
TUBE,15.88 mm OD
right-hand bucket cylinder closed end
1шт.
31
192154A1
HYD TUBE,15.88 mm OD
TUBE left-hand bucket cylinder closed end
1шт.
32
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
7/8-14 inch flare x adjusting O-ring boss, 90°
2шт.
33
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
34
175238A1
CYLINDER,Double Acting, 38.1mm Rod, 522.3mm Stroke
ASSEMBLY, 70/2-3/4 ID x 522 mm/20-9/16 inch stroke, loader bucket, see Figure 8-124
2шт.
35
250648A1
PROTECTOR
GUARD crossover tube, 3 mm thick, Replaces: P/N 132724A1, 4 mm thick guard
1шт.
36
814-10040
BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8
hex, 10-1.5 x 40 mm
2шт.
37
892-11010
LOCK WASHER,M10
2шт.
38
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
- flat, 11 x 20 x 2 mm
2шт.
39
L79937
SADDLE
SPACER rubber, tube
2шт.
40
214-1464
HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm
CLAMP, HOSE, , Adj. #64, 3.56/4.50 Type F Worm
2шт.
41
218-435
HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC
CONNECTOR straight, large hex, 7/8-14 inch flare
1шт.
42
221139A1
TUBE
bucket section upper port at valve, 570LXT, Serial Range: -JJG0224613
1шт.
42
221139A1
TUBE
bucket section upper port at valve, 580L, Serial Range: -JJG0232658
1шт.
43
221141A1
TUBE
bucket section upper port tube to hose, 570L XT, Serial Range: -JJG0224613
1шт.
43
221141A1
TUBE
bucket section upper port tube to hose, 580L, Serial Range: -JJG0232658
1шт.
44
221143A1
TUBE
bucket section lower port at valve
1шт.
45
221146A1
TUBE
bucket section lower port, Serial Range: tube-hose
1шт.
46
232936A1
TUBE
bucket section upper port at valve, 570LXT, Start Serial: JJG0224613
1шт.
46
232934A1
TUBE,15.88 mm OD
bucket section upper port at valve, 580L, Start Serial: JJG0232658
1шт.
47
232936A1
TUBE
bucket section upper port tube to hose, 570LXT, Start Serial: JJG0224613
1шт.
47
232936A1
TUBE
bucket section upper port tube to hose, 580L, Start Serial: JJG0232658
1шт.
48
253111A1
SUPPORT
BRACKET tube mounting, 570LXT models, if used
1шт.
49
252831A1
SHIN
CLAMP, 1 inch tube, 570LXT models, if used
1шт.
50
252833A1
SHIN
CLAMP, 5/8 inch tube, 570LXT models, if used
1шт.
51
614-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
hex, full threads, 8-1.25 x 25 mm, 570LXT models, if used
2шт.
52
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
flat, 9 x 17 x 1.6 mm, 570LXT models, if used
2шт.
53
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, , 570LXT models, If used M8
2шт.
54
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
- hex, 8 mm - 1.25, class 10, 570LXT models, If used
2шт.
Выбрано товаров: 73
