Запчасти Case 580L (8-010) - LOADER LIFT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

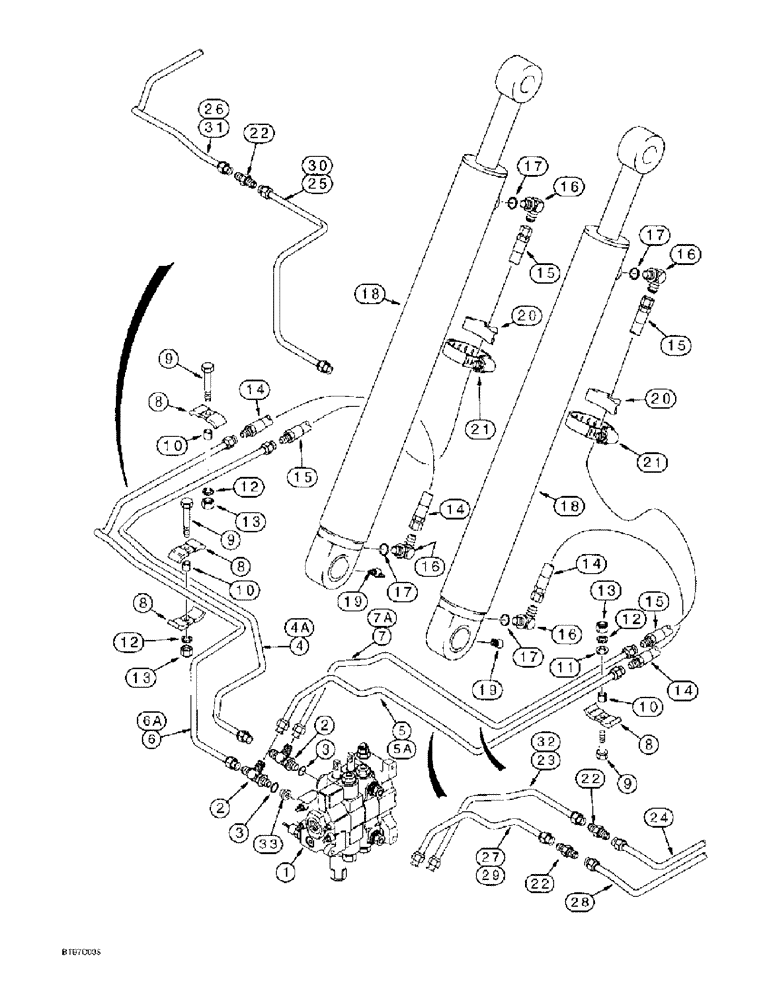

Схема запчастей Case 580L - (8-010) - LOADER LIFT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS
20
12
10
14
15
20
9
15
23
27
3
18
7a
4
6
8
4a
5
17
21
3
10
15
30
7
14
10
31
16
26
11
9
20
19
13
28
22
33
15
2
14
6a
14
1
8
17
16
5a
13
9
22
18
16
12
21
2
22
12
25
32
17
24
17
10
8
16
13
8

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY, loader control, for correct assembly and components, see Figure 8-060 or 8-062

1шт.

2

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch flare branch x flare x adjusting O-ring boss, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

192134A1

TUBE,15.88 mm OD

upper lift port to left-hand loader lift cylinder rod end, used in production, services itself, for service order P/N 192134A1 tube, models without ride control, see Figure 8-057 for parts used on models with ride control, models 580L, Serial Range: -JJG0232658

1шт.

4

192134A1

TUBE,15.88 mm OD

upper lift port to left-hand loader lift cylinder rod end, used in production, services itself, for service order P/N 192134A1 tube, models without ride control, see Figure 8-057 for parts used on models with ride control, models 570LXT, Serial Range: -JJG0224613

1шт.

4a

225330A1

TUBE

upper lift port to left-hand loader lift cylinder rod end, used in production, services itself, for service order P/N 225330A1 tube, Ref 4A, 580L, without ride control, see Figure 8-057, Start Serial: JJG0232658

1шт.

4a

225330A1

TUBE

upper lift port to left-hand loader lift cylinder rod end, used in production, services itself, for service order P/N 225330A1 tube, Ref 4A, 570LXT, without ride control, see Figure 8-057, Start Serial: JJG0224613

1шт.

5

192132A1

TUBE

lower lift port, to right-hand loader lift cylinder closed end, used in production, for service order P/N 221156A1 and 221158A1 tubes and 218-435 connector, see Ref. 22, 27 and 28, 580L, Serial Range: -JJG0233658

1шт.

5

192132A1

TUBE

lower lift port, to right-hand loader lift cylinder closed end, used in production, for service order P/N 221156A1 and 221158A1 tubes and 218-435 connector, see Ref. 22, 27 and 28, 570LXT, Serial Range: -JJG0224613

1шт.

5a

231984A1

TUBE

lower lift port to right-hand loader lift cylinder closed end, used in production, for service order P/N 221158A1 and 232929A1 tubes and 218-435 connector, Ref. 22, 28 and 29, 580L, Start Serial: JJG0232658

1шт.

5a

231984A1

TUBE

lower lift port to right-hand loader lift cylinder closed end, used in production, for service order P/N 221158A1 and 232929A1 tubes and 218-435 connector, Ref. 22, 28 and 29, 570LXT, Start Serial: JJG0224613

1шт.

6

192130A1

TUBE

lower lift port to left-hand loader lift cylinder closed end, used in production, for service order P/N 221152A1 and 221154A1 tubes and 218-435 connector, Ref. 22, 25 and 26), 580L, models without ride control see Figure 8-057 for parts, Serial Range: -JJG0232658

1шт.

192130A1

TUBE

lower lift port to left-hand loader lift cylinder closed end, used in production, for service order P/N 221152A1 and 221154A1 tubes and 218-435 connector, Ref. 22, 25 and 26), 570LXT, models without ride control see Figure 8-057 for parts, Serial Range: -JJG0224613

1шт.

6a

225332A1

TUBE

lower lift port to left-hand loader lift cylinder closed end, used in production, for service order P/N 232939A1 and 232941A1 tubes and 218-435 connector, Ref. 22, 30 and 31, 580L; models without ride control see Figure 8-057 for parts, Start Serial: JJG0232658

1шт.

6a

225332A1

TUBE

lower lift port to left-hand loader lift cylinder closed end, used in production, for service order P/N 232939A1 and 232941A1 tubes and 218-435 connector, Ref. 22, 30 and 31, 570LXT; models without ride control see Figure 8-057 for part, Start Serial: JJG0224613

1шт.

7

192286A1

TUBE

upper lift port to right-hand loader lift cylinder rod end, used in production, for service order P/N 221160A1 and 221162A1 tubes and 218-435 connector, Ref. 22-24, 580L, Serial Range: -JJG0232658

1шт.

7

192286A1

TUBE

upper lift port to right-hand loader lift cylinder rod end, used in production, for service order P/N 221160A1 and 221162A1 tubes and 218-435 connector, Ref. 22-24, 570LXT, Serial Range: -JJG0224613

1шт.

7a

231982A1

TUBE

upper lift port to right-hand loader lift cylinder rod end, used in production, for service order P/N 221162A1 and 232931A1 tubes and 218-435 connector, Ref. 22, 24 and 32, 580L, Start Serial: JJG0232658

1шт.

7a

231982A1

TUBE

upper lift port to right-hand loader lift cylinder rod end, used in production, for service order P/N 221162A1 and 232931A1 tubes and 218-435 connector, Ref. 22, 24 and 32, 570LXT, Start Serial: JJG0224613

1шт.

8

D138055

CLAMP

tube

4шт.

9

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

hex, 10-1.5 x 40 mm

3шт.

10

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

tube

3шт.

11

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

12

892-11010

LOCK WASHER,M10

3шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

14

187535A1

HOSE,12.7mm ID x 720mm L

720 mm/28-11/32 inch long, lift cylinder closed end

2шт.

15

187536A1

HOSE,12.7mm ID x 1090mm L

1090 mm/43 inch long, upper port of control valve to lift cylinder rod end

2шт.

16

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch flare x adjusting O-ring boss, 90°

4шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

18

131417A1

CYLINDER,Double Acting, 44.4mm Rod, 766mm Stroke

ASSEMBLY, 76/3 ID x 766 mm/30-5/32 inch stroke, loader lift, see Figure 8-122

2шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

20

D142787

SPACER

INSULATOR rubber

2шт.

21

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP, HOSE, , Adj. #72, 4.06/5.00 Type F Worm

2шт.

22

218-435

HYD CONNECTOR,7/8" - 14 Male JIC x 7/8" - 14 Male JIC

CONNECTOR straight, large hex, 7/8-14 inch flare

1-3шт.

23

221160A1

TUBE

upper lift port to right-hand loader lift cylinder, 580L, Serial Range: -JJG0232658

1шт.

23

221160A1

TUBE

upper lift port to right-hand loader lift cylinder, 570LXT, Serial Range: -JJG0224613

1шт.

24

221162A1

TUBE

right-hand loader lift cylinder rod end, 580L, Serial Range: -JJG0232658

1шт.

24

221162A1

TUBE

right-hand loader lift cylinder rod end, 570L XT, Serial Range: -JJG0224613

1шт.

25

221152A1

TUBE

lower lift port to left-hand loader lift cylinder, 580L; models without ride control, see Figure 8-056 for parts used on models with ride contro, Serial Range: -JJG0224613

1шт.

25

221152A1

TUBE

lower lift port to left-hand loader lift cylinder, 570LXT; models without ride control, see Figure 8-056 for parts used on models with ride control, Serial Range: -JJG0232658

1шт.

26

221154A1

TUBE

left-hand loader lift cylinder closed end, 580L; models without ride control, see Figure 8-056 for parts used on models with ride contro, Serial Range: -JJG0232658

1шт.

26

221154A1

TUBE

left-hand loader lift cylinder closed end, 570LXT; models without ride control, see Figure 8-056 for parts used on models with ride control, Serial Range: -JJG0224613

1шт.

27

221156A1

TUBE

lower lift port to right-hand loader lift cylinder, 580L, Serial Range: -JJG0232658

1шт.

27

221156A1

TUBE

lower lift port to right-hand loader lift cylinder, 570LXT, Serial Range: -JJG0224613

1шт.

28

221158A1

TUBE

right-hand loader lift cylinder closed end, 580L, Serial Range: -JJG0232658

1шт.

28

221158A1

TUBE

right-hand loader lift cylinder closed end, 570LXT, Serial Range: -JJG0224613

1шт.

29

232929A1

HYD TUBE

TUBE lower lift port to right-hand loader lift cylinder, 580L, Start Serial: JJG0232658

1шт.

29

232929A1

HYD TUBE

TUBE lower lift port to right-hand loader lift cylinder, 570LXT, Start Serial: JJG0224613

1шт.

30

232939A1

TUBE

lower lift port to left-hand loader lift cylinder, 580L; models without ride control, see Figure 8-056 for parts used on models with ride contro, Start Serial: JJG0232658

1шт.

30

232939A1

TUBE

lower lift port to left-hand loader lift cylinder, 580L; models without ride control, see Figure 8-056 for parts used on models with ride control, Start Serial: JJG0224613

1шт.

31

232941A1

TUBE

left-hand loader lift cylinder closed end, 580L; models without ride control, see Figure 8-056 for parts used on models with ride control, Start Serial: JJG0232658

1шт.

31

232941A1

TUBE

left-hand loader lift cylinder closed end, 570LXT; models without ride control, see Figure 8-056 for parts used on models with ride control, Start Serial: JJG0224613

1шт.

32

232931A1

HYD TUBE

TUBE upper lift port to right-hand loader lift cylinder, 580L, Start Serial: JJG0232658

1шт.

32

232931A1

HYD TUBE

TUBE upper lift port to right-hand loader lift cylinder, 570LXT, Start Serial: JJG0224613

1шт.

33

232556A1

RESISTOR

RESTRICTOR drop rate orifice, Replaces: P/N 184893A1 restrictor

1шт.

Выбрано товаров: 55
