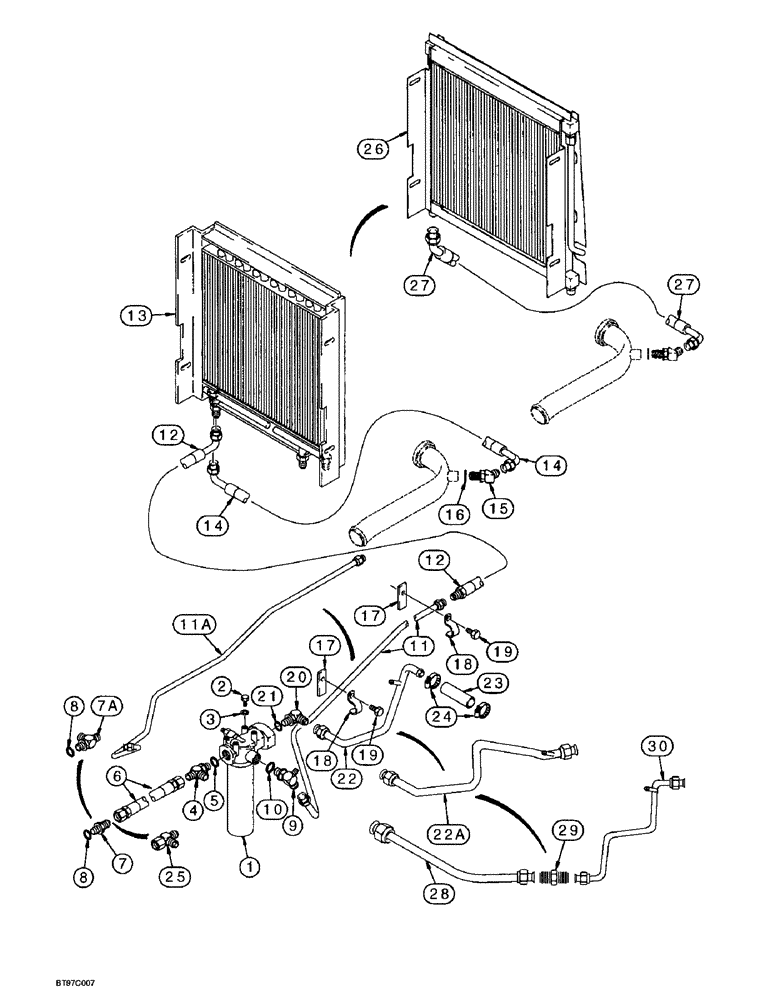

Запчасти Case 580L (8-008) - EQUIPMENT HYDRAULIC SYSTEM, OIL COOLER LINES, RETURN LINES AND FILTER (08) - HYDRAULICS

1

122536A1

HYDRAULIC OIL FILTER

FILTER ASSEMBLY, hydraulic oil, see Figure 8-120

1шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

4шт.

4

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1-5/16-12 inch flare branch x flare x adjusting O-ring boss, loader valve to filter and filter to backhoe control valve, see Figure 8-057C or 8-057G for relocation of tee on models with three-point hitch, Includes: Ref. 5

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

6

144233A1

HOSE,1.0” ID x 890mm L

890 mm/35 inch long, return, backhoe control, Serial Range: valve-filter

1шт.

See Figures 8-036 - 8-041A for fitting and hose used on models with basic auxiliary hydraulics or Figure 8-057C or 8-057G for hose used on models with three-point hitch.

1шт.

7

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, 1-5/16-12 inch flare x O-ring boss, backhoe control valve outlet port, models without extendable dipper

1шт.

See Figures 8-036 - 8-041A for fitting and hose used on models with basic auxiliary hydraulics or Figure 8-057C or 8-057G for hose used on models with three-point hitch.

1шт.

7a

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1-5/16-12 inch flare branch x flare x adjusting O-ring boss, backhoe control valve outlet port, models with extendable dipper, if used, Includes: Ref. 8

1шт.

See Figures 8-036 - 8-041A for fitting and hose used on models with basic auxiliary hydraulics or Figure 8-057C or 8-057G for hose used on models with three-point hitch.

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk, P/N 218-5069 or 218-5245 fitting

1шт.

9

228959A1

FITTING

TEE - special, replaces 131002A1 tee, Includes: Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

122176A1

TUBE

filter to cooler, if used, not used on 570LXT models with creeper

1шт.

11a

227286A2

TUBE

filter to cooler, if used

1шт.

12

144220A1

HOSE,12.7mm ID x 595mm L

595 mm/23-7/16 inch long, Serial Range: filter-cooler

1шт.

13

231280A1

COOLER, OIL

COOLER hydraulic oil, see Figure 6-020 for cooler mounting hardware, Replaces: P/N 139783A1 cooler, if used

1шт.

14

144214A1

HOSE,12.7mm ID x 573mm L

573 mm/22-9/16 inch long, cooler return, used with P/N 139783A1 or 231280A1 cooler

1шт.

15

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch flare x adjusting O-ring boss, 45°, Incl. Ref 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

115633A1

SUPPORT

PLATE mounting

2шт.

18

D143430

CLAMP

tube

2шт.

19

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

20

218-5275

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

1-5/16-12 flare x 1-5/8-12 inch adjusting O-ring boss, 45°, Includes: Ref. 21

1шт.

21

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

22

184789A1

TUBE

return to tank, 580L, if used, Serial Range: -JJG0232658

1шт.

22

184789A1

TUBE

return to tank, 570LXT, Serial Range: -JJG0224613

1шт.

22a

229245A1

TUBE

return to tank, used in production, for service order P/N 232902A1 tube, P/N 218-739 connector and P/N 232900A1 tube, Ref 28-30, 580L, if used, Start Serial: JJG0232658

1шт.

22a

229245A1

TUBE

return to tank, used in production, for service order P/N 232902A1 tube, P/N 218-739 connector and P/N 232900A1 tube, Ref 28-30, 570LXT, if used, Start Serial: JJG0224613

1шт.

23

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

89 mm/3-1/2 inch long, cut from P/N S118383X bulk hose, return tube to tank, see Figure 7-008 for attaching brake line clamp

1шт.

24

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

25

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

1-1/16-12 flare branch x 1-5/16-12 inch flare x swivel

1шт.

Used on models with auxiliary hydraulics. When installing auxiliary hydraulics, this tee is mounted between Ref. 6 hose and Ref. 7 adapter on standard dipper or between Ref. 6 hose and Ref. 7A tee on extendable models.

1шт.

26

235811A1

COOLER, OIL

COOLER hydraulic oil, heavy duty, see Figure 6-021A for cooler mounting hardware, if used

1шт.

27

236231A1

HOSE

300 mm/11-13/16 inch long, used with P/N 235811A1 cooler, Ref 26, if used

1шт.

28

232902A1

TUBE,25.4 mm OD

return, if used

1шт.

29

218-739

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

CONNECTOR straight, 1-5/16-12 inch flare, if used

1шт.

30

232900A1

TUBE

return, if used

1шт.

Not illustrated correctly. The end that connects to tank is a hose bib, not threaded fitting.

1шт.

S118383X

LARGE HOSE

HOSE, bulk, 25/1 x 38/1-1/2 x 4877 mm/192 inch long

1шт.
