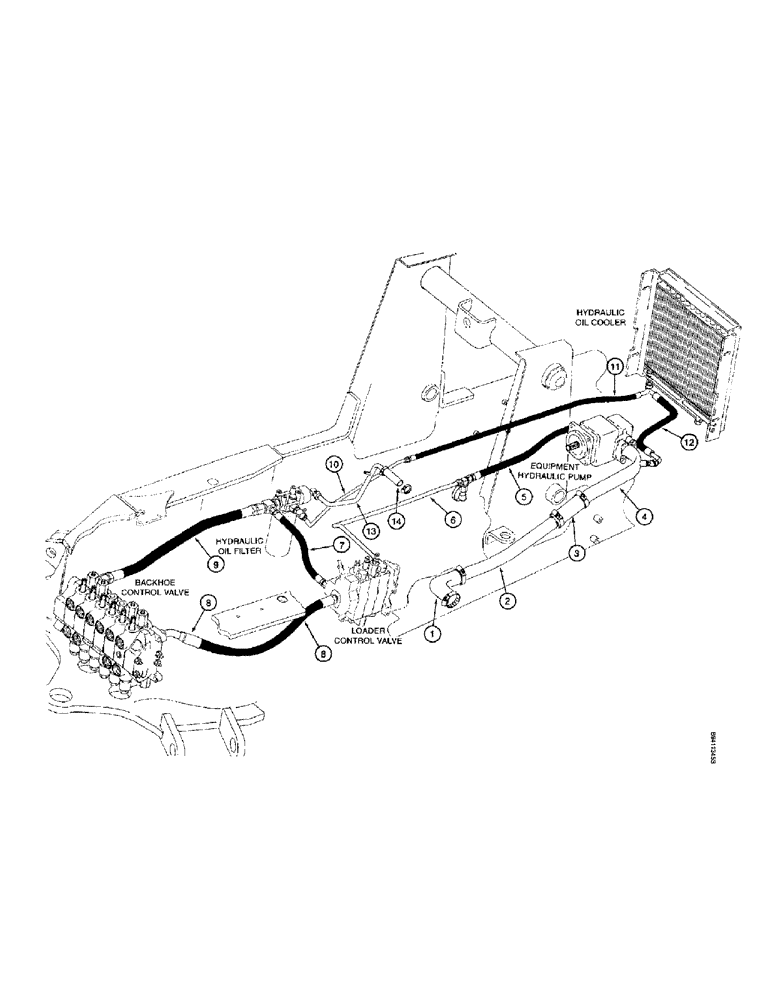

Запчасти Case 580L (1-012) - PICTORIAL INDEX, EQUIPMENT HYDRAULICS, HYDRAULIC PUMP TO OIL FILTER, CONTROL VALVES & RETURN TO TANK (00) - PICTORIAL INDEX

1

Suction hose at hydraulic tank, Figure 8-002

1шт.

2

Suction tube at hydraulic tank, Figure 8-002

1шт.

3

Coupler hose, Figure 8-002

1шт.

4

Suction tube at hydraulic equipment pump, Figure 8-002

1шт.

5

Hose at large pump section port, Figure 8-002, 8-006

1шт.

6

Tube at tee to loader control valve inlet, Figures 8-002, 8-006

1шт.

7

Loader valve to filter hose, Figure 8-002

1шт.

8

Hose at loader valve power beyond port to backhoe control valve inlet, Figure 8-006

1шт.

9

Return hose at backhoe control valve to filter, Figures 8-008, 8-034

1шт.

10

Oil filter to oil cooler tube, Figure 8-008

1шт.

11

Hose at oil cooler, Figure 8-008

1шт.

12

Oil cooler return hose, Figure 8-008

1шт.

13

Return to tank tube, Figure 8-008

1шт.

14

Return to tank hose, Figure 8-008

1шт.
