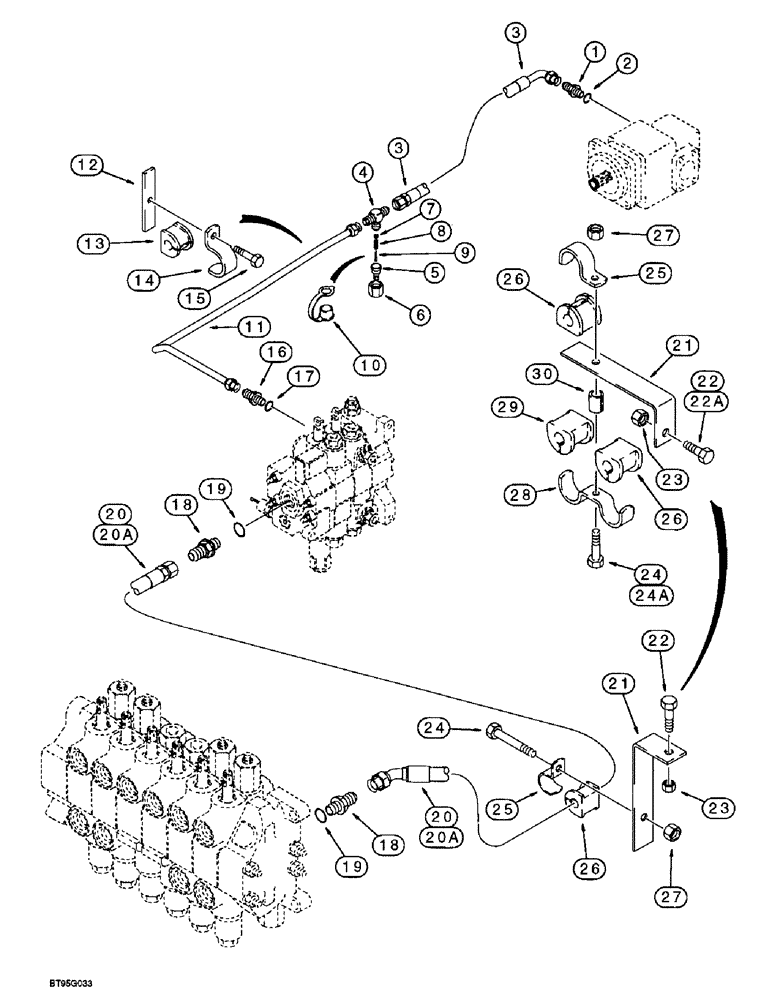

Запчасти Case 580L (8-006) - EQUIPMENT HYDRAULIC SYSTEM, EQUIPMENT PUMP AND LOADER CONTROL VALVE TO BACKHOE CONTROL VALVE (08) - HYDRAULICS

1

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring boss, Incl. Ref. 2

1шт.

2

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

3

144215A1

HOSE,19.05mm ID x 576mm L

576 mm/22-11/16 inch long, large pump section port

1шт.

4

218-587

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br

1-1/16-12 flare branch x 1-5/16-12 inch flare x flare

1шт.

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

COUPLING - quick disconnect, Includes Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

BODY coupling

1шт.

6

425-1120

NUT,1 1/4"-12, G5

hex, 1-1/4 inch NF

1шт.

7

NSS

NOT SOLD SEPARAT

SEAT spring

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING coupling

1шт.

9

NSS

NOT SOLD SEPARAT

POPPET coupling

1шт.

10

H434163

DUST CAP

CAP - dust, coupler

1шт.

11

122125A1

TUBE

tee, to loader control valve inlet

1шт.

12

115507A1

SUPPORT

PLATE mounting

1шт.

13

D67297

BLOCK

INSULATOR rubber, tube

1шт.

14

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

tube

1шт.

15

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

16

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 17

1шт.

17

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

18

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 19

2шт.

19

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

20

144240A1

HOSE,3/4" ID, 1028mm L

1028 mm/40-1/2 inch long, loader valve power beyond port to backhoe control valve inlet, models with two spool loader control valve

1шт.

See Figures 8-057C - 8-057G for hose used on models with three-point hitch.

1шт.

20a

144241A1

HOSE,19.05mm ID x 977mm L

977 mm/38-15/32 inch long, loader valve power beyond port to backhoe control valve inlet, models with three spool loader control valve

1шт.

See Figures 8-057C - 8-057G for hose used on models with three-point hitch.

1шт.

21

136008A1

SUPPORT

BRACKET mounting, hose

1шт.

Female coupling for running check, order from service tool 213165. Mates to the quick disconnect coupling, Ref. 21.

1шт.

22

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

hex, 12-1.75 x 45 mm, if used

1шт.

22a

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, if used

1шт.

23

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

1шт.

24

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

hex, 10-1.5 x 80 mm, if used

1шт.

24a

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

If used Hex, M10 x 50, 8.8

1шт.

25

144479A1

CLAMP

isolation, if used

1шт.

26

144477A1

ISOLATOR

Rubber, if used

1-2шт.

27

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

28

D143422

SHIN

CLAMP double tube

1шт.

29

D143797

SHOCK ABSORBER

INSULATOR, 5/8 inch, tube, swing signal hose, see Figure 8-034 for hose on models without auxiliary hydraulics and Figure 8-036 on models with auxiliary hydraulics

1шт.

30

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

split, 22 mm/7/8 inch long

1шт.
