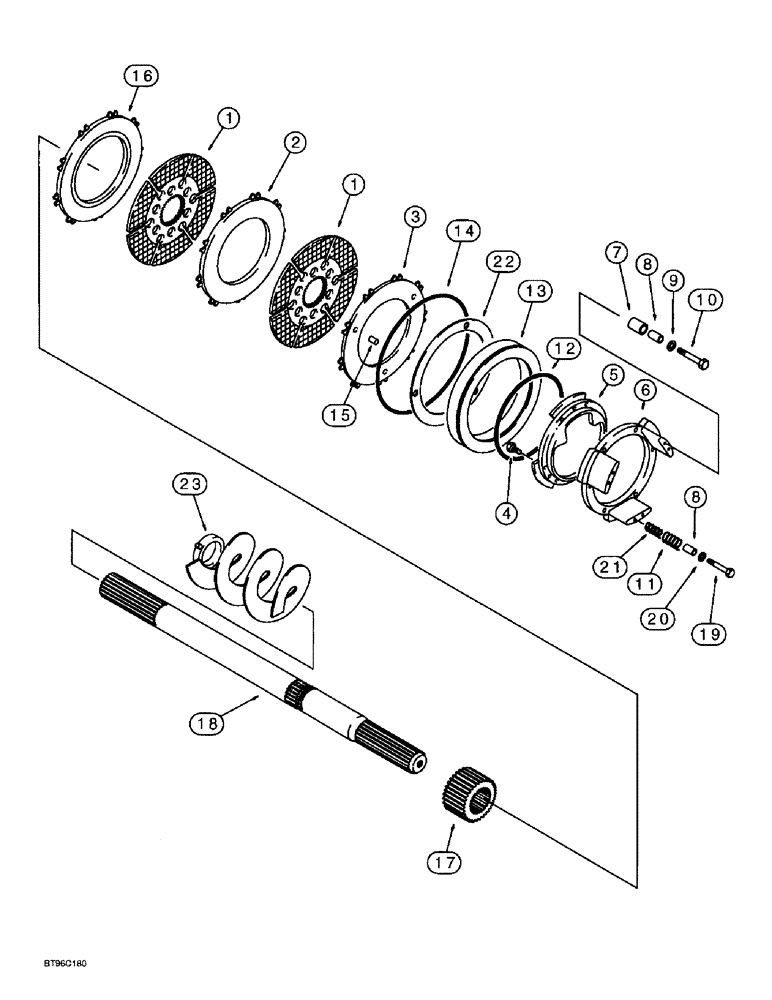

Запчасти Case 580L (7-003A) - 114367A4 OR 114367A5 REAR DRIVE AXLE, DIFFERENTIAL BRAKE (07) - BRAKES
№
Артикул
Название
Примечание
Количество
114367A4
AXLE, REAR
AXLE ASSEMBLY, rear drive, see Figure 6-053A - 6-060, 7-003A and 7-004, also includes P/N 187562A2 bracket, Ref. 18 on Figure 6-050, no longer available, order P/N 114367A5 axle, Includes: Ref. 1 - 25
1шт.
114367A5
AXLE, REAR
AXLE ASSEMBLY, rear drive, see Figure 6-053A - 6-060, 7-003A and 7-005A, also includes P/N 187562A2 bracket, Ref. 18 on Figure 6-050, Includes: Ref. 1 - 25
1шт.
1
237021A1
LARGE PLATE
DISC brake
4шт.
3
237023A1
LARGE PLATE
PLATE piston
2шт.
4
864-8016
HEX SOC SCREW,M8 x 16mm, Cl 8.8
SCREW, Hex Soc Hd, M8 x 16, 8.8
18шт.
5
190461A1
FLANGE
inner
2шт.
6
190460A1
FLANGE
outer
2шт.
7
190449A1
SPLIT PIN
SPACER split, 18 x 20 mm, no longer sold separately, order P/N 248071A1 kit
6шт.
Part of Brake Self-adjuster Kit P/N 248071A1.
1шт.
8
190496A1
BUSHING
spacer, no longer sold separately, order P/N 248071A1 kit
12шт.
Part of Brake Self-adjuster Kit P/N 248071A1.
1шт.
9
190450A1
WASHER
flat, special
6шт.
10
814-6035
BOLT,Hex, M6 x 1 x 35mm, Cl 8.8
6шт.
11
237026A1
SPRING
outer
6шт.
12
190492A1
O-RING,6.984" ID x 7.262" OD x 0.139"
small
2шт.
13
190502A1
PISTON
brake
2шт.
15
190447A1
SPLIT PIN
PIN split, 6 x 14 mm
6шт.
16
237024A1
LARGE PLATE
PLATE friction, outer
2шт.
17
190453A1
SLEEVE
splined
2шт.
18
190470A1
SHAFT
splined
2шт.
19
864-6035
HEX SOC SCREW,M6 x 35mm, Cl 8.8
BOLT hex socket, 6-1.0 x 35 mm
6шт.
20
190500A1
COVER
spring
6шт.
21
237025A1
SPRING
inner
6шт.
22
190504A1
SHIM
GASKET piston
2шт.
24
192549A1
AUGER
oil, left-hand, includes weld-on clamp and bolt, not shown
1шт.
25
863-6020
HEX SOC SCREW,M6 x 20mm, Cl 12.9
SCREW - hex socket, 6 - 1.0 x 20 mm, class 12.9, not shown, right-hand or left-hand auger
2шт.
248071A1
SERVICE KIT
KIT brake self adjuster, Includes: Ref. 7 and 8, spacer and bushing, plus an instruction sheet
1шт.
Выбрано товаров: 29
