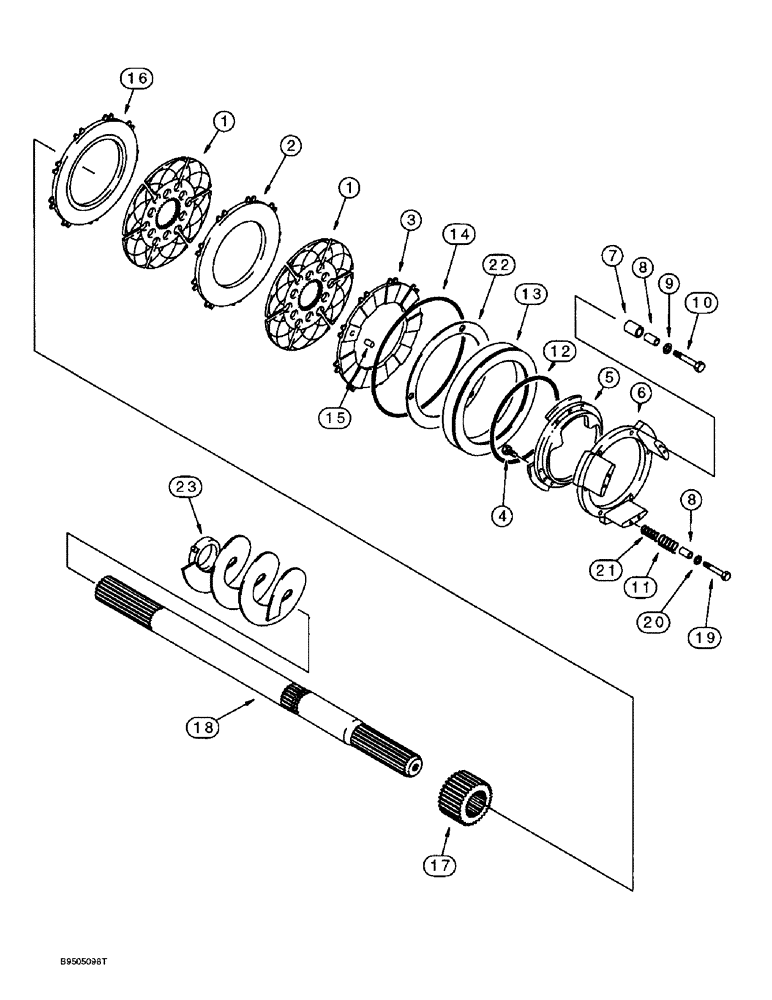

Запчасти Case 580L (7-002) - 114367A2 OR 114367A3 REAR DRIVE AXLE, DIFFERENTIAL BRAKE (07) - BRAKES

114367A2

AXLE, REAR

AXLE ASSEMBLY, rear drive, Carraro No. 132844, see Figure 6-052 - 6-060, 7-002 and 7-004, no longer available, order P/N 114367A5 axle on Figure 6-053A, Includes: Ref. 1 - 25

1шт.

114367A3

AXLE, REAR

AXLE ASSEMBLY, rear drive, Carraro No. 134170, see Figure 6-053A - 6-060, 7-002 and 7-004, also includes P/N 187562A2 bracket, Ref. 18 on Figure 6-050, no longer available, order P/N 114367A5 axle on Figure 6-053A, Includes: Ref. 1 - 25

1шт.

1

190462A1

DISC

brake

4шт.

If your brake discs, Ref. 1, have swirled grooves and the piston plates, Ref. 3, have raised sections (see illustration), refer to Service Bulletin NLB MP 006 96 for instructions. Service both ends of the axle. Do not mix old and new parts or service/replace parts on just one end of the axle.

1шт.

2

190455A1

LARGE PLATE

PLATE friction, inner

2шт.

If your brake discs, Ref. 1, have swirled grooves and the piston plates, Ref. 3, have raised sections (see illustration), refer to Service Bulletin NLB MP 006 96 for instructions. Service both ends of the axle. Do not mix old and new parts or service/replace parts on just one end of the axle.

1шт.

3

190474A1

LARGE PLATE

PLATE piston

2шт.

If your brake discs, Ref. 1, have swirled grooves and the piston plates, Ref. 3, have raised sections (see illustration), refer to Service Bulletin NLB MP 006 96 for instructions. Service both ends of the axle. Do not mix old and new parts or service/replace parts on just one end of the axle.

1шт.

4

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

SCREW, Hex Soc Hd, M8 x 16, 8.8

18шт.

5

190461A1

FLANGE

inner

2шт.

6

190460A1

FLANGE

outer

2шт.

7

190449A1

SPLIT PIN

SPACER, 18 x 20 mm

6шт.

8

190496A1

BUSHING

spacer

12шт.

9

190450A1

WASHER

flat, special

6шт.

10

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

6шт.

11

190499A1

SPRING

outer

6шт.

If your brake discs, Ref. 1, have swirled grooves and the piston plates, Ref. 3, have raised sections (see illustration), refer to Service Bulletin NLB MP 006 96 for instructions. Service both ends of the axle. Do not mix old and new parts or service/replace parts on just one end of the axle.

1шт.

12

190492A1

O-RING,6.984" ID x 7.262" OD x 0.139"

small

2шт.

13

190502A1

PISTON

brake

2шт.

14

190493A1

O-RING,0.139" Thk x 8.234" ID, -267, 90 Duro

large

2шт.

15

190447A1

SPLIT PIN

PIN split, 6 x 14 mm

6шт.

16

190454A1

LARGE PLATE

PLATE friction, outer

2шт.

If your brake discs, Ref. 1, have swirled grooves and the piston plates, Ref. 3, have raised sections (see illustration), refer to Service Bulletin NLB MP 006 96 for instructions. Service both ends of the axle. Do not mix old and new parts or service/replace parts on just one end of the axle.

1шт.

17

190453A1

SLEEVE

splined

2шт.

18

190470A1

SHAFT

splined

2шт.

19

864-6035

HEX SOC SCREW,M6 x 35mm, Cl 8.8

BOLT hex socket, 6-1.0 x 35 mm

6шт.

20

190500A1

COVER

spring

6шт.

21

190498A1

SPRING

inner

6шт.

If your brake discs, Ref. 1, have swirled grooves and the piston plates, Ref. 3, have raised sections (see illustration), refer to Service Bulletin NLB MP 006 96 for instructions. Service both ends of the axle. Do not mix old and new parts or service/replace parts on just one end of the axle.

1шт.

22

190504A1

SHIM

GASKET piston

2шт.

23

192424A1

AUGER

oil, right-hand, includes weld-on clamp and bolt

1шт.

24

192549A1

AUGER

oil, left-hand, includes weld-on clamp and bolt, not shown

1шт.

25

863-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

SCREW - hex socket, 6 - 1.0 x 20 mm, class 12.9, not shown, right-hand and left-hand auger

2шт.
