(6-062) - DRIVE SHAFT FOR REAR DRIVE AXLE, REAR DRIVE AXLE TO TRANSMISSION

Запчасти Case 580L (6-062) - DRIVE SHAFT FOR REAR DRIVE AXLE, REAR DRIVE AXLE TO TRANSMISSION (06) - POWER TRAIN

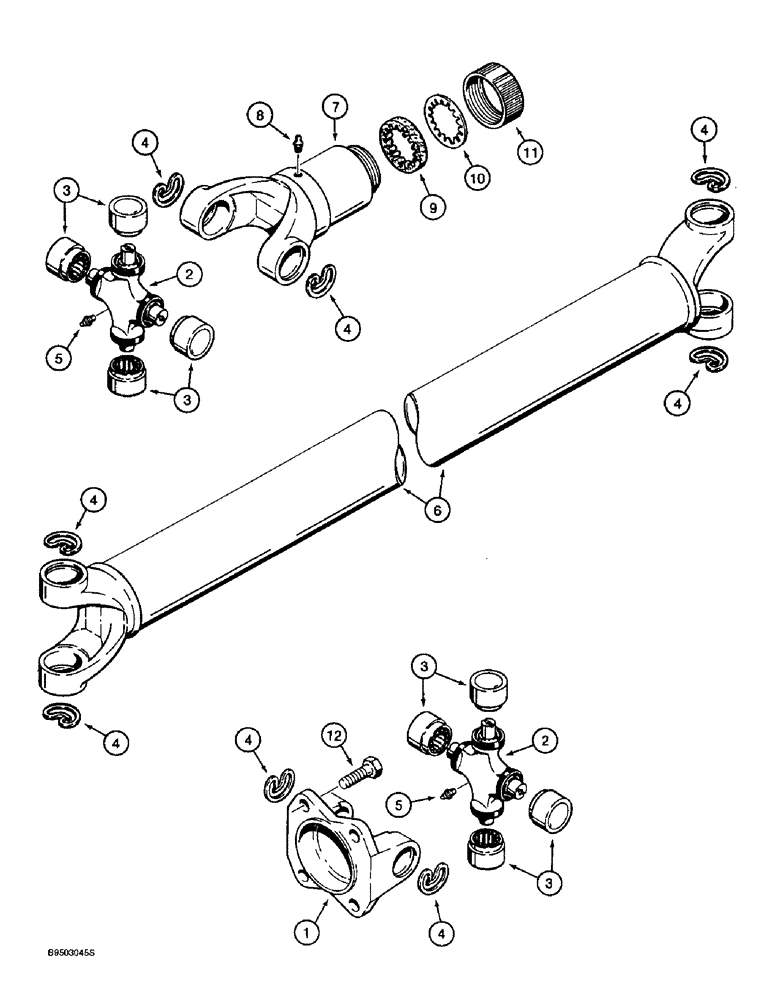

Схема запчастей Case 580L - (6-062) - DRIVE SHAFT FOR REAR DRIVE AXLE, REAR DRIVE AXLE TO TRANSMISSION (06) - POWER TRAIN
3
12
1
3
4
7
9
4
5
5
4
4
4
11
3
8
4
3
6
2
4
4
2
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

119045A1

DRIVE SHAFT

SHAFT ASSEMBLY, drive, Includes: Ref. 1 - 11

1шт.

1

144280A1

YOKE

flange

1шт.

144278A1

PACKAGE,SERVICE

KIT universal joint, Includes: Ref. 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

JOINT universal, drive shaft

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING universal joint

4шт.

4

NSS

NOT SOLD SEPARAT

RING retaining

4шт.

5

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING grease, straight, 1/4-28 taper x 11/16 inch

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT drive, transmission to rear axle

1шт.

7

144279A1

YOKE

tube, splined, to rear axle

1шт.

8

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING grease, straight, 1/4-28 taper x 11/16 inch

1шт.

D149860

SERVICE KIT

KIT, SERVICE - Dust cap, Incl. Ref 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER cork

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER steel

1шт.

11

NSS

NOT SOLD SEPARAT

CAP dust, seal retaining

1шт.

12

608-12025

BOLT,Hex, M12 x 25mm, Cl 10.9

hex, self-locking, 12-1.75 x 25 mm, class 10.9, not included with drive shaft assembly, purchase separately

4шт.
