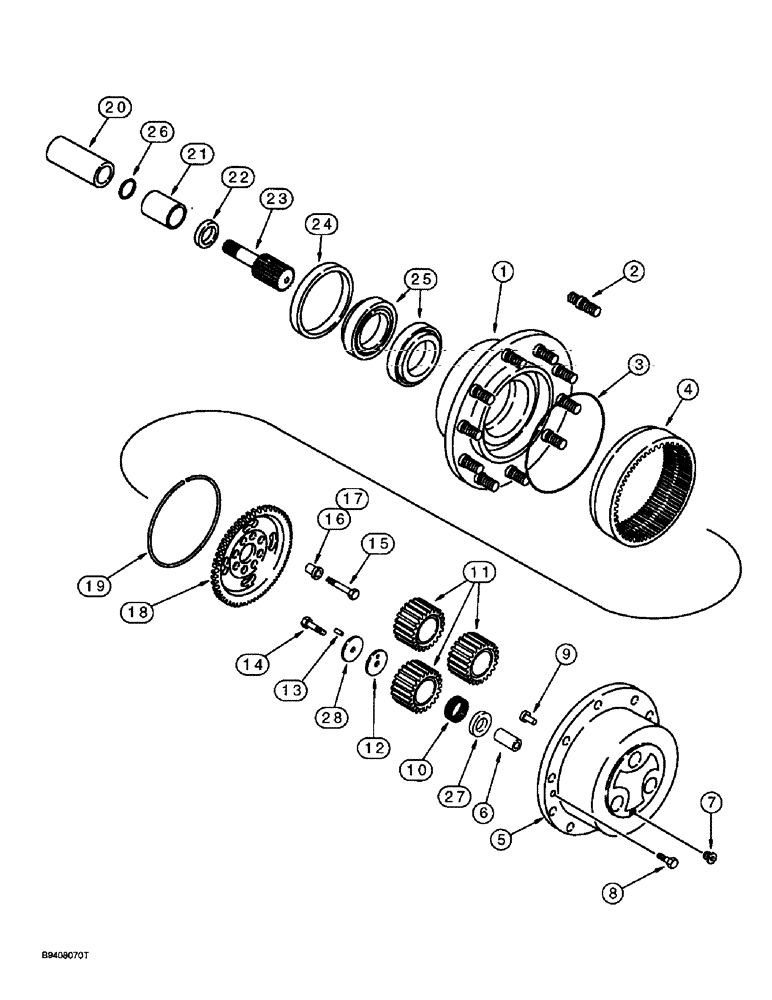

Запчасти Case 580L (6-060) - REAR DRIVE AXLE, PLANETARY (06) - POWER TRAIN

114367A2

AXLE, REAR

AXLE ASSEMBLY, rear drive, Carraro No. 132884, see Figure 6-052 - 6-060, 7-002 and 7-004, no longer available, order P/N 114367A5 axle Includes: Ref. 1 - 28

1шт.

114367A3

AXLE, REAR

AXLE ASSEMBLY, rear drive, Carraro No. 134170, see Figure 6-053A- 6-060, 7-002 and 7-004, also includes P/N 187562A2 bracket, Ref. 18 on Figure 6-050, no longer available, order P/N 114367A5 axle, Includes: Ref. 1 - 28

1шт.

114367A4

AXLE, REAR

AXLE ASSEMBLY, rear drive, see 6-053A - 6060, 7-003A and 7-004, also includes P/N 187562A2 bracket, Ref. 18 on Figure 6-050, no longer available, order P/N 114367A5 axle, Includes: Ref. 1 - 28

1шт.

114367A5

AXLE, REAR

AXLE ASSEMBLY, rear drive, see Figure 6-053A - 6-060, 7-003A and 7-005A, also includes P/N 187562A2 bracket, Ref. 18 on Figure 6-050, Includes: Ref. 1 - 28

1шт.

1

175974A1

HUB

ASSEMBLY, wheel attaching

2шт.

2

D142986

STUD,88mm L

special, without flanged collar

20шт.

Need STUD with collar, part number is 196090A1

1шт.

3

P2930467

SEAL,0.139" Thk x 9.984" ID, -274, Cl 5, 75 Duro

O-RING sealing

2шт.

4

175976A1

PINION

GEAR ring, planetary

2шт.

5

175977A1

CARRIER

ASSEMBLY, planetary

2шт.

6

NSS

NOT SOLD SEPARAT

SHAFT pinion gear

6шт.

7

100557A1

PLUG, DRAIN,M30 x 2

PLUG - drain, Includes 238-6121 O-ring

2шт.

8

905876R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 10.9

Special, Planetary cover plate Hex Soc Flat Hd, M8 x 20, 10.9

4шт.

9

K395093

HEADED PIN,12mm OD x 15mm L

PIN locking, planetary carrier

2шт.

10

175978A1

NEEDLE BEARING

BEARING needle, package of 10 needles, 168 needles required, planetary gear

17шт.

11

175979A1

SUN GEAR

GEAR pinion, planetary

6шт.

12

175980A1

THRUST WASHER

WASHER thrust, pinion gear

6шт.

13

247550A1

NEEDLE BEARING,5 mm OD x 10 mm

Needle, Used As A Pin, Package Of 10, Six Required; Replaces (6) 175981A1 Pins

1шт.

14

175982A1

LOCK BOLT,Hex, M10 x 1.25 x 50mm, Cl 10.9

BOLT hex, self-locking, special, 10-1.25 x 50 mm, class 10.9

6шт.

15

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

BOLT, , Special, Self-locking Hex, M14 x 65, Cl 10.9

16шт.

16

107072A1

CENTERING RING

BUSHING centering, 24 mm OD; Used With Ref 18 175983A1 Ring Gear Hub; If Used

2шт.

17

107071A1

BUSHING

- Centering, 20 mm OD

14-16шт.

18

175983A1

CROWN WHEEL

HUB ring gear; With (14) 20 mm Holes and (2) 24 mm Holes; Used With Ref 16 and 17 Bushings; Used With 222691A1 & 175953A1 Axle Trumphet Housings On Figure 6-53A

2шт.

18

295580A1

PINION CARRIER

Ring Gear; With 4 Threaded Puller Holes; Uses (16) 20 mm OD Bushings, Ref 17; No Longer Available, Order 310492A1

2шт.

18

310492A1

PINION CARRIER

Ring Gear; With 2 Threaded Puller Holes; Uses (16) 20 mm OD Bushings, Ref 17; No Longer Available, Order 85817684

2шт.

18

85817684

GEAR

Ring Gear; Uses (16) 20 mm OD Bushings, Ref 17

2шт.

19

175984A1

RING, LOCKING

RING lock

2шт.

20

175985A1

COUPLING

drive

2шт.

21

100532A1

BUSHING

drive

2шт.

22

175987A1

OIL SEAL

oil

2шт.

23

175986A1

SHAFT

drive

2шт.

24

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

Oil, 149 x 176 x 16

2шт.

25

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

BEARING ball, hub

4шт.

26

175988A1

CIRCLIP

RING lock

2шт.

27

175989A1

THRUST WASHER

WASHER thrust, pinion gear, outer

6шт.

28

175990A1

THRUST WASHER

WASHER thrust, pinion gear, inner

6шт.
