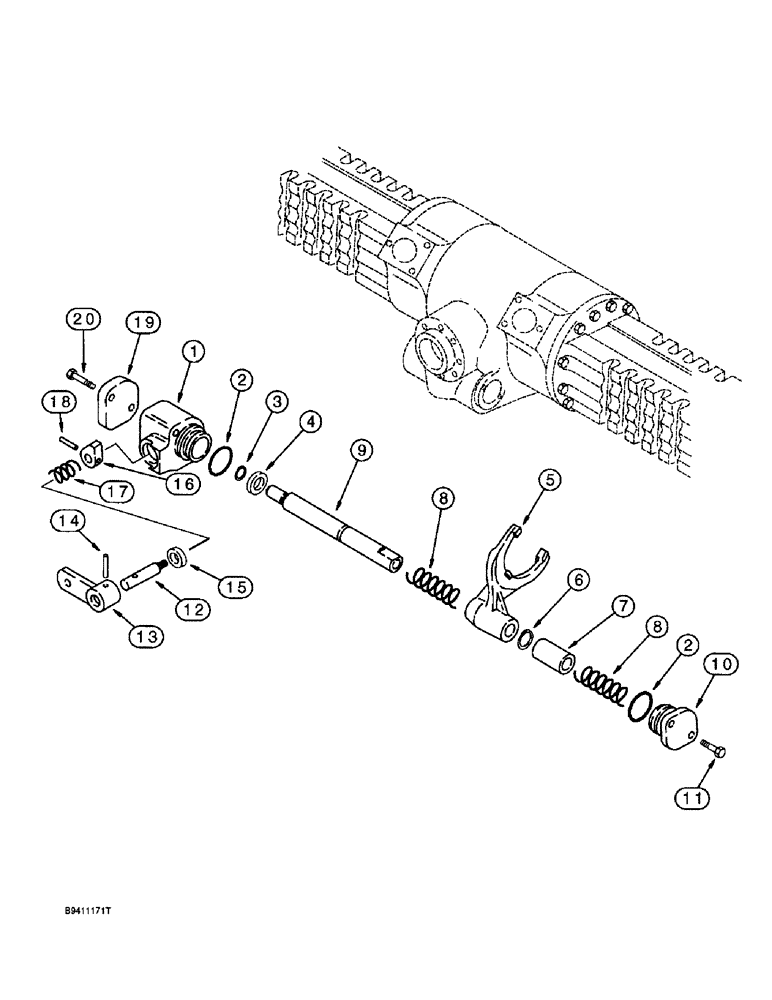

Запчасти Case 580L (6-058) - REAR DRIVE AXLE, DIFFERENTIAL LOCK (06) - POWER TRAIN

114367A2

AXLE, REAR

AXLE ASSEMBLY, rear drive, Carraro No. 132884, see Figure 6-052 - 6-060, 7-002 and 7-004, no longer available, order P/N 114367A5 axle, Includes: Ref. 1 - 20

1шт.

114367A3

AXLE, REAR

AXLE ASSEMBLY, rear drive, Carraro No. 134170, see Figure 6-053A - 6-060, 7-002 and 7-004, also includes P/N 187562A2 bracket, Ref. 18 on Figure 6-050, no longer available, order P/N 114367A5 axle, Includes: Ref. 1 - 20

1шт.

114367A4

AXLE, REAR

AXLE ASSEMBLY, rear drive, see Figure 6-053A - 6-060, 7-003A - 7-004, also includes P/N 187562A2 bracket, Ref. 18 on Figure 6-050, no longer available, order P/N 114367A5, Includes: Ref. 1 - 20

1шт.

114367A5

AXLE, REAR

AXLE ASSEMBLY, rear drive, see Figure 6-053A - 6-060, 7-003A and 7-005A, also includes 187562A2 bracket, Ref. 18 on Figure 6-050, Includes: Ref. 1 - 20

1шт.

1

175962A1

SUPPORT

HOUSING locking cam

1шт.

2

128376A1

O-RING

sealing

2шт.

3

800-1114

SNAP RING,M14, Ext

RING external retaining, No. 14

1шт.

4

175963A1

WASHER

WASHER flat, used as spacer

1шт.

5

175964A2

FORK

shift; Replaces 175964A1

1шт.

6

800-5120

SNAP RING,M20, Ext

RING external heavy retaining, No. 20

1шт.

7

175965A1

BUSHING

rail, shifter fork

1шт.

8

175966A1

SPRING

rail, shifter fork

2шт.

9

175967A1

SHAFT

RAIL shifter fork

1шт.

10

175968A1

SUPPORT

COVER housing

1шт.

11

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, full threads, 8-1.25 x 25 mm

2шт.

12

175969A1

SPLIT PIN/SAFETY PIN

PIN cam

1шт.

13

175970A1

LEVER

BELLCRANK cam pin

1шт.

14

905793R1

PIN,6mm OD x 36mm L, Coiled

roll

1шт.

15

175971A1

OIL SEAL

SEAL oil

1шт.

16

175972A1

CAM

locking

1шт.

17

1967599C1

SPRING

cam

1шт.

18

139111A1

SPLIT PIN/SAFETY PIN

PIN roll, 6 x 20 mm

1шт.

19

175973A1

COVER

cam housing

1шт.

20

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

HH, CL 8.8, M8 x 1.25 x 70

2шт.
