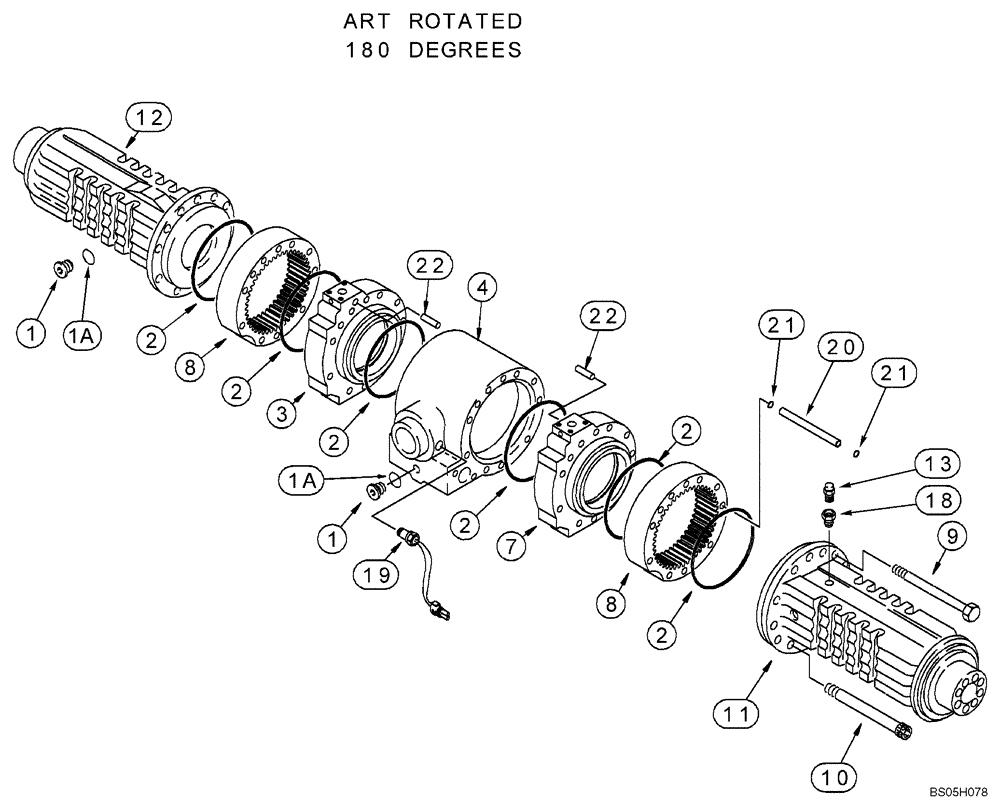

Запчасти Case 580L (6-053A) - 114367A3, 114367A4 OR 114367A5 REAR DRIVE AXLE, AXLE HOUSING (06) - POWER TRAIN

114367A3

AXLE, REAR

AXLE ASSEMBLY, rear drive, Carraro No. 134170, see Figure 6-053A - 6-060, 7-002 and 7-004, also includes 187562A2 bracket, Ref.18 on Figure 6-050, no longer available, order P/N 114367A5 axle, Includes: Ref. 1 - 21

1шт.

114367A4

AXLE, REAR

AXLE ASSEMBLY, rear drive, see Figure 6-053A - 6-060, 7-002 and 7-004, also includes 187562A2 bracket, Ref.18 on Figure 6-050, no longer available, order P/N 114367A5 axle, Includes: Ref. 1 - 21

1шт.

114367A5

AXLE, REAR

AXLE ASSEMBLY, rear drive, see Figure 6-053A - 6-060, 7-002 and 7-004, also includes P/N 187562A2 bracket, Ref. 18 on Figure 6-050, Includes: Ref. 1 - 21

1шт.

87350701

REMAN-AXLE

Remanufactured, 114367A5 Axle, North America Only; Parts On This Page Do Not Apply to Remanufactured Assy

1шт.

87350702

CORE-AXLE

Return Number, 114367A5 Axle, Core, Use This Part Number To Return Core For Credit When Using A Remanufactured Assy

1шт.

1

100557A1

PLUG, DRAIN,M30 x 2

PLUG drain, Includes 238-6121 O-ring

2шт.

1a

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

2

238-5270

O-RING,0.139" Thk x 8.984" ID, -270, Cl 5, 75 Duro

6шт.

3

190457A2

CYLINDER

brake, right-hand; Replaces 190457A1; No Longer Available, Order 315550A1 Cylinder Kit

1шт.

315550A1

SET OF PARTS

Cylinder Kit, Brake, Right-Hand; Includes 190457A2 Cylinder With Cross Drilled Hole, Plus D142898 M10 x 1 Plug For Hole; Replaces 190457A1, 190457A2

1шт.

4

222689A1

HOUSING

center, axle

1шт.

7

190458A2

CYLINDER

brake, left-hand; Replaces 190458A1; No Longer Available, Order 315551A1 Cylinder Kit

1шт.

315551A1

SET OF PARTS

Cylinder Kit, Brake, Left-Hand; Includes 190458A2 Cylinder With Cross Drilled Hole, Plus D142898 M10 x 1 Plug For Hole; Replaces 190458A1, 190458A2

1шт.

8

190459A1

FLANGE

SLEEVE gear housing

2шт.

9

814-14140

BOLT,Hex, M14 x 2 x 140mm, Cl 8.8

22шт.

10

864-12130

HEX SOC SCREW,M12 x 130mm, Cl 8.8

BOLT hex socket, 12-1.75 x 130 mm

4шт.

11

222691A1

HOUSING

Left-Hand; Used With 175983A1 Ring Gear, Ref 18 on Figure 6-60, Which Uses (2) 24 mm OD Bushings and (14) 20 mm OD Bushings; No Longer Available, Order (1) 295574A1 Housing Below and (1) 85817684 Hub Ring, (2) 107071A1 20 mm OD Bushings On Fig 6-60

1шт.

11

295574A1

BEAM

Left-Hand Housing; Used With 295580A1 Ring Gear, Ref 18 on Figure 6-60 Which Uses (16) 20 mm OD Bushings

1шт.

12

175953A1

HOUSING

Right-Hand; Used With 175983A1 Ring Gear, Ref 18 on Figure 6-60, Which Uses (2) 24 mm OD Bushings and (14) 20 mm OD Bushings; No Longer Available, Order (1) 295573A1 Housing Below and (1) 85817684 Hub Ring, (2) 107071A1 20 mm OD Bushings On Fig 6-60

1шт.

12

295573A1

BEAM

Right-Hand Housing; Used With 295580A1 Ring Gear, Ref 18 on Figure 6-60 Which Uses (16) 20 mm OD Bushings

1шт.

13

5194153

BREATHER,M10 x 1

Axle housing; Replaces 1966149C1, 1966149C2 M10 x 1

1шт.

18

E135750

AXLE PIN

EXTENSION breather

1шт.

19

192481A1

SENSOR

SWITCH oil temperature, may have one or two wires

1шт.

20

222688A1

TUBE

internal

1шт.

21

100760A1

O-RING

sealing, tube

2шт.

22

D142898

PLUG,M10 x 1

M10 x 1, Sealing, Hole

2шт.
