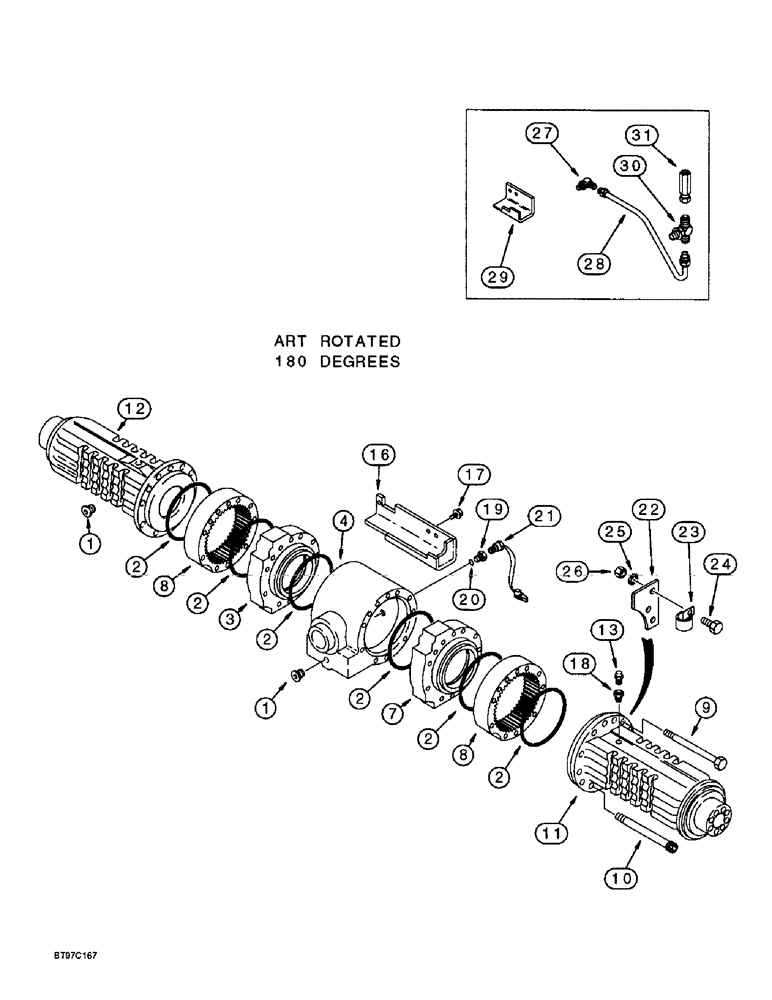

Запчасти Case 580L (6-052) - *114367A2 REAR DRIVE AXLE (06) - POWER TRAIN

114367A2

AXLE, REAR

AXLE ASSEMBLY rear drive, Carraro No. 132884, see Figure 6-052 - 6-060, 7-002 and 7-004, no longer available, order P/N 114367A5 rear drive axle on Figure 6-053A

1шт.

1

100557A1

PLUG, DRAIN,M30 x 2

PLUG drain, axle housing, uses P/N 238-6121 O-ring

2шт.

2

238-5270

O-RING,0.139" Thk x 8.984" ID, -270, Cl 5, 75 Duro

Axle housing -270, 70 Duro, 8.984" ID x .139" Thk

6шт.

3

190457A1

HOUSING

CYLINDER brake, right-hand, axle housing

1шт.

4

175951A1

HOUSING

center, axle housing

1шт.

7

190458A1

HOUSING

CYLINDER brake, left-hand, axle housing, use P/N D142898 plug with loctite under the breather

1шт.

8

190459A1

FLANGE

SLEEVE gear housing axle

2шт.

9

814-14140

BOLT,Hex, M14 x 2 x 140mm, Cl 8.8

Axle housing Hex, M14 x 140, 8.8

22шт.

10

864-12130

HEX SOC SCREW,M12 x 130mm, Cl 8.8

BOLT hex socket, 12-1.75 x 130 mm, axle housing

4шт.

11

175952A1

HOUSING

axle, left-hand side

1шт.

12

175953A1

HOUSING

axle, right-hand side

1шт.

13

1966149C1

BREATHER

axle housing

1шт.

16

190497A1

GUARD

BRACKET center axle housing

1шт.

17

614-14030

BOLT,Hex, M14 x 2 x 30mm, Cl 8.8, Full Thd

Replaces P/N 190446A1 bolt, if used, axle housing Hex, M14 x 30, 8.8, Full Thd

2шт.

17

30237R1

BOLT,Hex, M18 x 2.5 x 40mm, Class 8.8

special, 18 x 40 mm, if used, axle housing

2шт.

18

E135750

AXLE PIN

EXTENSION breather, axle housing

1шт.

19

193044A1

ADAPTER

oil temperature switch, to center housing axle

1шт.

20

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

Adapter to center housing axle -119, 70 Duro, .924" ID x .103" Thk

1шт.

21

192481A1

SENSOR

SWITCH oil temperature, may have one or two wires, axle housing

1шт.

22

193285A1

BRACKET

J-clamp mounting, mounts to left-hand axle housing with existing hardware

1шт.

23

516-23158

CLAMP,J, 11/16" Insul, 3/8" Bolt

J-type, 5/8 inch ID, oil temperature switch, Replaces: P/N D147383 clamp, axle housing

1шт.

24

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

J-clamp to bracket, axle housing Hex, M10 x 20, 8.8, Full Thd

1шт.

25

892-11010

LOCK WASHER,M10

Axle housing M10

1шт.

26

829-1410

NUT,M10 x 1.5, Cl 10.9

Axle Housing M10, Cl 10

1шт.

259050A1

SET OF PARTS

KIT lube tube, center axle housing, if used, Includes: Ref. 27 - 31

1шт.

27

115229A1

ELBOW

special, lube tube kit, 90°

1шт.

28

190491A1

TUBE

axle lube kit

1шт.

29

190497A1

GUARD

BRACKET center axle housing, if stock is exhausted, may order P/N 196064A1 bracket, lube tube kit

1шт.

30

259049A1

FITTING

TEE special, lube tube kit

1шт.

31

278986A1

NUT

swivel, special, oil temperature switch, lube tube kit

1шт.
