Запчасти Case 580L (6-048) - REAR DRIVE AXLE MOUNTING (06) - POWER TRAIN

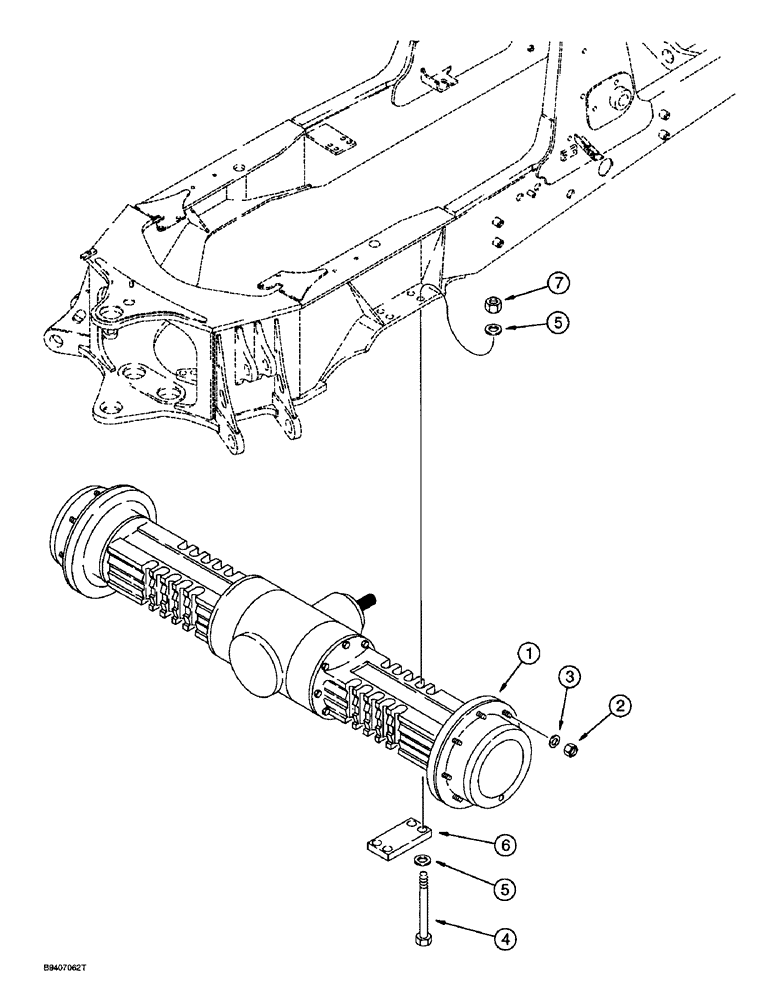

Схема запчастей Case 580L - (6-048) - REAR DRIVE AXLE MOUNTING (06) - POWER TRAIN
5
3
4
2
6
7
1
5

Артикул

Название

Примечание

Количество

1

114367A2

AXLE, REAR

AXLE ASSEMBLY, rear drive, Carraro No. 132884, see Figure 6-052 - 6-060, 7-002 and 7-004, no longer available, order P/N 114367A5

1шт.

1

114367A3

AXLE, REAR

AXLE ASSEMBLY, rear drive, Carraro No. 134170, see Figure 6-053A - 6-060, 7-002 and 7-004, also includes P/N187562A2 bracket, Ref. 18 Figure 6-050, no longer available, order P/N 114367A5 axle

1шт.

1

114367A4

AXLE, REAR

AXLE ASSEMBLY, rear drive, see Figure 6-053A - 6-060, 7-003A and 7-004, also includes P/N 187562A2 bracket, Ref.18 on Figure 6-050, no longer available, order P/N 114367A5 axle

1шт.

1

114367A5

AXLE, REAR

AXLE ASSEMBLY, rear drive, see Figure 6-053A - 6-060, 7-003A and 7-005A, also includes P/N187562A2 bracket, Ref. 18 on Figure 6-050

1шт.

87350701

REMAN-AXLE

Remanufactured, 114367A5 Axle, North America Only; Parts On This Page Do Not Apply to Remanufactured Assy

1шт.

87350702

CORE-AXLE

Return Number, 114367A5 Axle, Core, Use This Part Number To Return Core For Credit When Using A Remanufactured Assy

1шт.

2

D138492

NUT,M22 X 1.5 - 6 HVY HEX

hex, special, 22 mm - 1.5

20шт.

3

D138380

WASHER,22.8mm ID x 44.5mm OD x 5.56mm Thk

flat, hardened, special

20шт.

4

827-20230

BOLT,Hex, M20 x 2.5 x 230mm, Cl 10.9

- hex, 20 - 2.5 x 230 mm, class 10.9

8шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, hardened, 22 x 37 x 4 mm

16шт.

6

117933A1

LARGE PLATE

PLATE axle mounting

2шт.

7

829-1420

NUT,M20, Cl 10

8шт.

Выбрано товаров: 12
