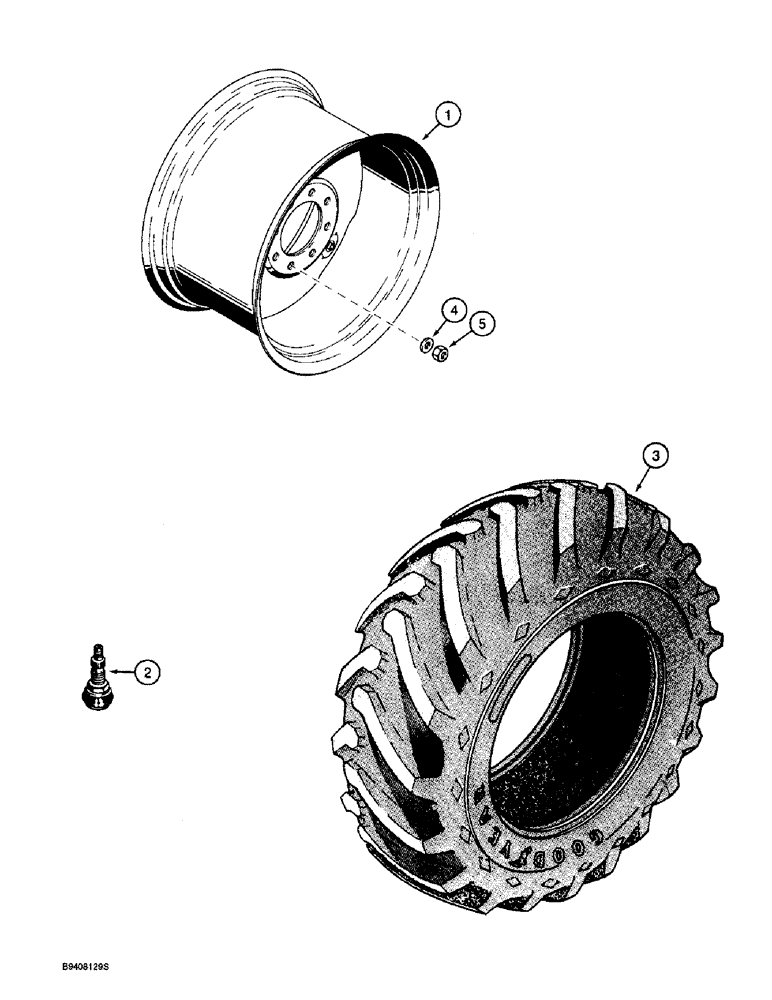

Запчасти Case 580L (6-046) - REAR WHEELS AND TIRES, TWO WHEEL OR FOUR WHEEL DRIVE (06) - POWER TRAIN

1

104907A1

WHEEL,W16Lx24, 10 Holes, CASE Power Tan

Rim, 19.5L x 24, 10 Ply

2шт.

2

A20058

VALVE STEM

Wheel, 19.5L x 24, 10 ply

2шт.

3

REF

INSTRUCTION

TIRE rear, purchase locally, 19.5L x 24, 10 PLY

2шт.

1

119241A1

WHEEL,W15Lx24, 10 Holes, CASE Power Tan

Rim, 17.5L x 24, 10 Ply

2шт.

2

A20058

VALVE STEM

Wheel, 17.5L x 24, 10 ply

2шт.

3

REF

INSTRUCTION

TIRE rear, purchase locally, 17.5L x 24, 10 PLY

2шт.

4

D138380

WASHER,22.8mm ID x 44.5mm OD x 5.56mm Thk

flat, hardened, special, Wheel nuts

20шт.

5

D138492

NUT,M22 X 1.5 - 6 HVY HEX

hex, special, 22 mm - 1.5, Wheel nuts

20шт.
