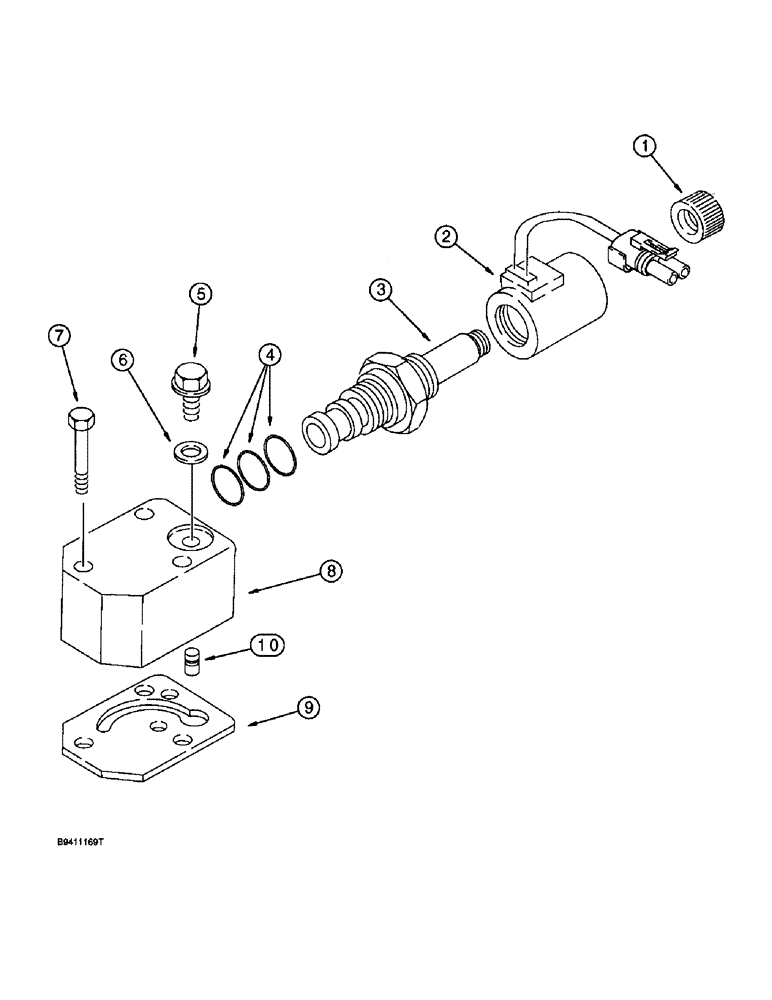

Запчасти Case 580L (6-044) - TRANSMISSION ASSEMBLY, SOLENOID VALVE - FOUR-WHEEL DRIVE (06) - POWER TRAIN

123843A1

TRANSMISSION

ASSEMBLY, four wheel drive, 580L models, see Figures 6-024 and 6-028 - 6-044, see Figure 6-024 for remanufactured transmission part numbers, Includes: P/N 190432A1 and Ref. 1 - 9

1шт.

130787A1

TRANSMISSION

ASSEMBLY, four wheel drive, 570LXT models, see Figures 6-024 and 6-028 - 6-044, see Figure 6-024 for remanufactured transmission part numbers, Includes: P/N 190432A1 and Ref. 1 - 9

1шт.

130787A1R

REMAN-TRANSMISSION

Reman Transmission for PN 130787A1

1шт.

130787A1C

CORE-TRANSMISSION

Return Number

1шт.

190432A1

SOLENOID

VALVE ASSEMBLY, solenoid

1шт.

1

NSS

NOT SOLD SEPARAT

NUT cap

1шт.

2

NSS

NOT SOLD SEPARAT

COIL solenoid

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE solenoid

1шт.

4

181149A1

SEAL PACKAGE

KIT seal, solenoid, Includes: 1 each: P/N 238-5014, 238-5015 and 237-6010 O-ring, not available for service, order P/N 190432A1 valve

1шт.

Part of Transmission Overhaul Seal Kit P/N 278836A1

1шт.

5

181100A1

PLUG,1/8 CAS x 8

valve

2шт.

6

934667R1

SEALING RING,M10 x 14 x 1

WASHER - flat, copper, special, 10 x 14 x 1 mm

2шт.

Part of Transmission Overhaul Seal Kit P/N 278836A1

1шт.

7

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

3шт.

8

190429A1

HOUSING

BODY solenoid valve

1шт.

9

190430A1

GASKET

GASKET, body to transmission housing

1шт.

Part of Transmission Overhaul Seal Kit P/N 278836A1

1шт.

10

190431A1

VALVE

solenoid, installed between Ref. 8 and Ref. 9

1шт.

278836A1

SET OF PARTS

KIT seal, transmission overhaul, four-wheel drive, Includes: Ref. 4, 6, 9 and parts on Figures 6-024, 6-028 and 6-032 - 6-044

1шт.
