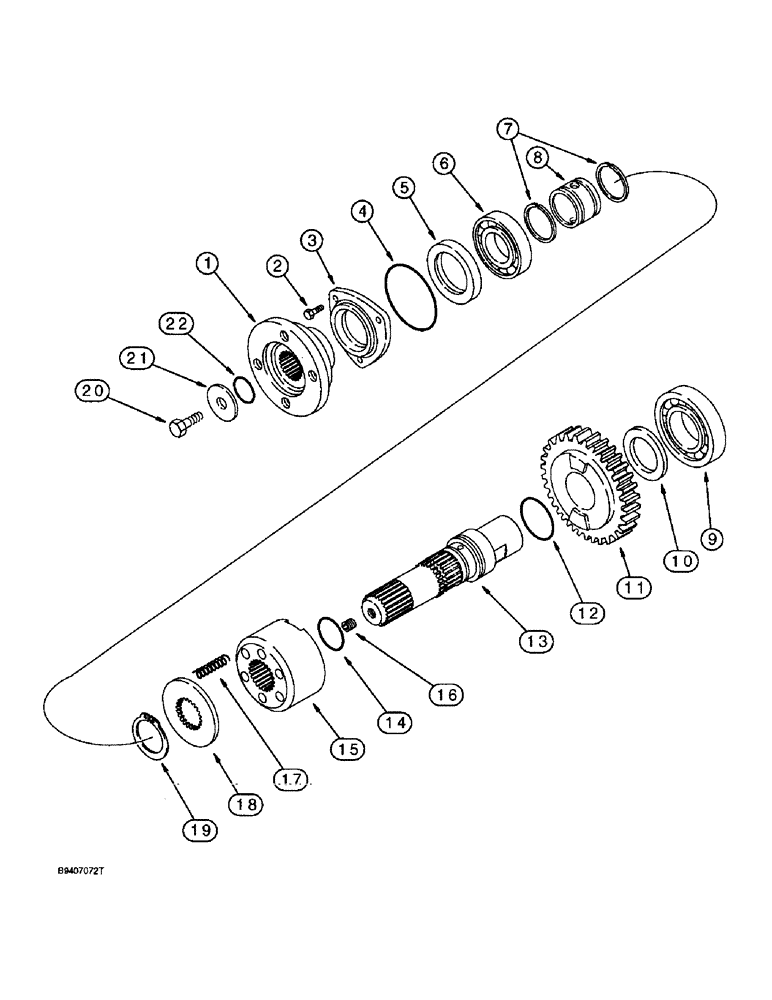

Запчасти Case 580L (6-040) - TRANSMISSION ASSEMBLY, FOUR WHEEL DRIVE OUTPUT SHAFT (06) - POWER TRAIN

123843A1

TRANSMISSION

ASSEMBLY, four wheel drive, 580L models, see Figure 6-024 and 6-028 - 6-044, see Figure 6-024 for remanufactured transmission part numbers, Includes: Ref. 1 - 22

1шт.

130787A1

TRANSMISSION

ASSEMBLY, four wheel drive, 570LXT models, see Figure 6-024 and 6-028 - 6-044, see Figure 6-024 for remanufactured transmission part numbers, Includes: Ref. 1 - 22

1шт.

130787A1R

REMAN-TRANSMISSION

Reman Transmission for PN 130787A1

1шт.

130787A1C

CORE-TRANSMISSION

Return Number

1шт.

1

181230A1

FLANGE

shaft

1шт.

2

614-8022

BOLT,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 22 mm

3шт.

3

181198A1

COVER

front

1шт.

4

112517A1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

cover

1шт.

Part of Transmission Overhaul Seal Kit P/N 278836A1

1шт.

5

181123A1

OIL SEAL,60mm ID x 75mm OD x 8mm Thk

SEAL oil, 60 x 75 x 8 mm

1шт.

Part of Transmission Overhaul Seal Kit P/N 278836A1

1шт.

6

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING ball

1шт.

7

181152A2

SEALING RING

SEAL oil, Replaces: P/N 181152A1

2шт.

Part of Transmission Overhaul Seal Kit P/N 278836A1

1шт.

8

181194A1

BUSHING

grooved

1шт.

9

181126A1

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING ball

1шт.

10

181154A1

THRUST WASHER,45mm ID x 65mm OD x 4mm Thk

WASHER thrust, 65 x 45 mm

1шт.

Part of Transmission Overhaul Seal Kit P/N 278836A1

1шт.

11

181221A1

PINION

GEAR driven, MFD, 37 teeth, P/N 130787A1 transmission, 570LXT models

1шт.

If replacing Ref. 11, 13 and 15 withj new gear 369471A1, shaft 369470A1, and sleweve 369472A1, you no longer need Ref. 10 thrust washer, do not reinstall it.

1шт.

11

181223A1

PINION

GEAR driven, MFD, 36 teeth, P/N 123843A1 transmission, 580L models

1шт.

12

100747A1

O-RING

shaft, large

1шт.

Part of Transmission Overhaul Seal Kit P/N 278836A1

1шт.

13

181182A1

SHAFT

output

1шт.

If replacing Ref. 11, 13 and 15 withj new gear 369471A1, shaft 369470A1, and sleweve 369472A1, you no longer need Ref. 10 thrust washer, do not reinstall it.

1шт.

14

100748A1

O-RING,1.421" ID x 1.699" OD x 0.139"

shaft, small

2шт.

Part of Transmission Overhaul Seal Kit P/N 278836A1

1шт.

15

181248A1

SLEEVE

shaft, has 4 notches in it instead of the 2 as shown in illustration

1шт.

If replacing Ref. 11, 13 and 15 withj new gear 369471A1, shaft 369470A1, and sleweve 369472A1, you no longer need Ref. 10 thrust washer, do not reinstall it.

1шт.

16

D142898

PLUG,M10 x 1

shaft, 10 x 1 mm

1шт.

17

100753A1

SPRING,Compression, 15mm OD x 41.2mm L

sleeve

6шт.

Part of Transmission Overhaul Seal Kit P/N 278836A1

1шт.

18

181276A1

WASHER

- flat, special

1шт.

Part of Transmission Overhaul Seal Kit P/N 278836A1

1шт.

19

181120A1

RING, SNAP

RING - snap

1шт.

Part of Transmission Overhaul Seal Kit P/N 278836A1

1шт.

20

P3533055

SCREW,M12 x 1.25 x 25mm

- locking, special, 12 - 1.25 x 25 mm

1шт.

Part of Transmission Overhaul Seal Kit P/N 278836A1

1шт.

21

P2745466

WASHER

- flat, special

1шт.

Part of Transmission Overhaul Seal Kit P/N 278836A1

1шт.

22

238-8217

O-RING,0.139" Thk x 1.171" ID, -217, Cl 8, 90 Duro

1шт.

Part of Transmission Overhaul Seal Kit P/N 278836A1

1шт.

278836A1

SET OF PARTS

KIT seal, transmission overhaul, four wheel drive, Includes: Ref. 4, 5, 7, 10, 12, 14, 17-22 and parts on Figures 6-024, 6-028 and 6-030 - 6-044

1шт.
