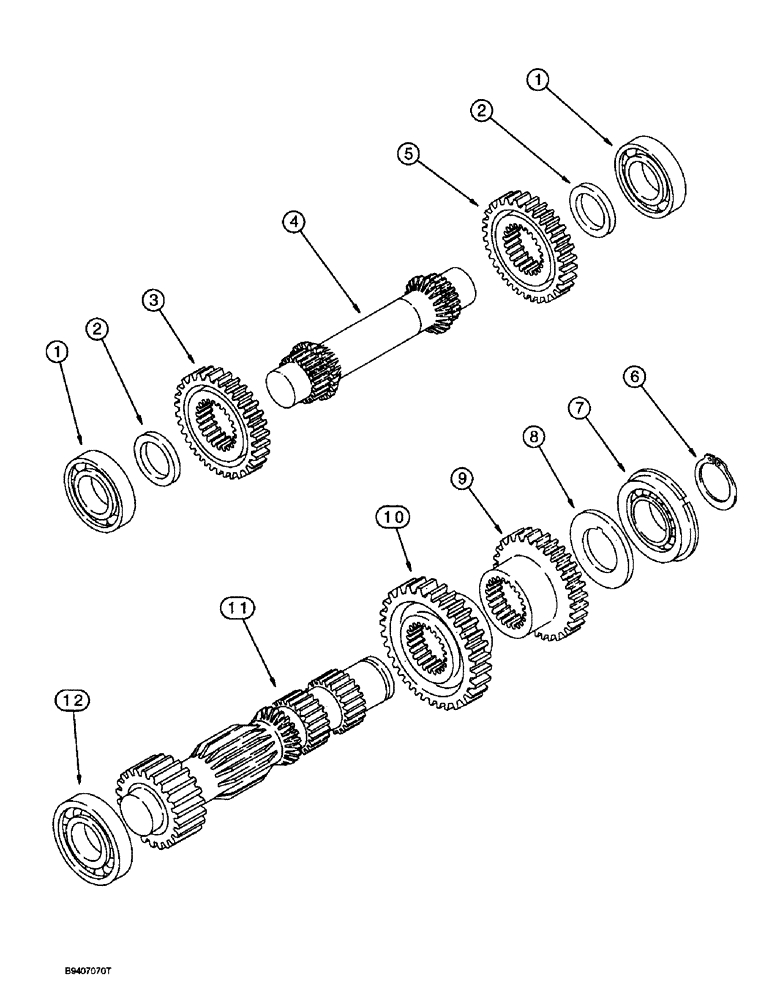

Запчасти Case 580L (6-034) - TRANSMISSION ASSEMBLY, IDLER AND PRIMARY SHAFT, TWO WHEEL OR FOUR WHEEL DRIVE (06) - POWER TRAIN

123842A1

TRANSMISSION

ASSEMBLY, two wheel drive, 580L models, see Figure 6-024, 6-026, 6-030 - 6-038 and 6-042, see Figure 6-024 for remanufactured transmission part numbers, Includes: Ref. 1 - 12

1шт.

130786A1

TRANSMISSION

ASSEMBLY, two wheel drive, 570LXT models, see Figure 6-024, 6-026, 6-030 - 6-038 and 6-042, see Figure 6-024 for remanufactured transmission part numbers, Includes: Ref. 1 - 12

1шт.

123843A1

TRANSMISSION

ASSEMBLY, four wheel drive, 580L models, see Figures 6-024 and 6-028 - 6-044, see Figure 6-024 for remanufactured transmission part numbers, Includes: Ref. 1 - 12

1шт.

130787A1

TRANSMISSION

ASSEMBLY, four wheel drive, 570LXT models, see Figures 6-024 and 6-028 - 6-044, see Figure 6-024 for remanufactured transmission part numbers, Includes: Ref. 1 - 12

1шт.

130787A1R

REMAN-TRANSMISSION

Reman Transmission For PN 130787A1

1шт.

130787A1C

CORE-TRANSMISSION

Return Number

1шт.

1

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING ball

2шт.

2

181151A1

BLOCK

SHIM bearing, 52 x 35.1 x 4 mm

2шт.

3

181186A1

PINION

GEAR idler, 27 teeth, 580L models

1шт.

3

181225A1

GEAR

idler, 27 teeth, 570LXT models

1шт.

4

181181A1

SHAFT

idler

1шт.

5

181186A1

PINION

GEAR idler, 27 teeth

1шт.

6

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

RING snap

1шт.

Part of Transmission Overhaul Seal Kit P/N 278302A1

1шт.

Part of Transmission Overhaul Seal Kit P/N 278836A1

1шт.

7

181128A1

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING ball

1шт.

8

181154A1

THRUST WASHER,45mm ID x 65mm OD x 4mm Thk

WASHER thrust, 65 x 45 mm

1шт.

Part of Transmission Overhaul Seal Kit P/N 278302A1

1шт.

Part of Transmission Overhaul Seal Kit P/N 278836A1

1шт.

9

181188A1

PINION

GEAR drive, third, 28 teeth

1шт.

10

181187A1

GEAR

drive, fourth, 39 teeth

1шт.

11

181184A1

SHAFT

primary

1шт.

12

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

BEARING roller

1шт.

Part of Transmission Overhaul Seal Kit P/N 278302A1

1шт.

Part of Transmission Overhaul Seal Kit P/N 278836A1

1шт.

278302A1

SET OF PARTS

KIT seal, transmission overhaul, two wheel drive, Includes: Ref. 6, 8 and 12, also see kit parts on Figures 6-024, 6-026, 6-032 - 6-308 and 6-042

1шт.

278836A1

SET OF PARTS

KIT seal, transmission overhaul, four wheel drive, Includes: Ref. 6, 8 and 12, also see kit parts on Figures 6-024, 6-028 and 6-032 - 6-044

1шт.
