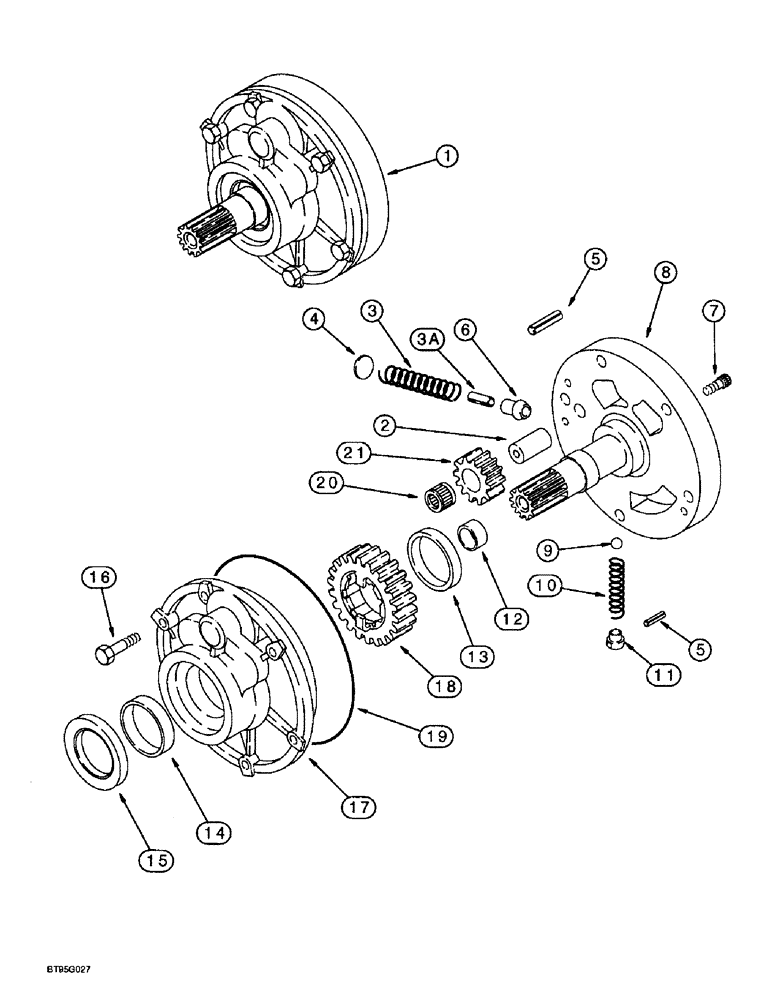

Запчасти Case 580L (6-030) - TRANSMISSION ASSEMBLY, OIL PUMP, TWO WHEEL OR FOUR WHEEL DRIVE (06) - POWER TRAIN

123842A1

TRANSMISSION

ASSEMBLY, two wheel drive, 580L models,see Figure 6-024, 6-026, 6-030 - 6-038 and 6-42, see Figure 6-024 for remanufactured part numbers, Includes: Ref. 1 -21

1шт.

130786A1

TRANSMISSION

ASSEMBLY, two wheel drive, 570LXT models,see Figure 6-024, 6-026, 6-030 - 6-038 and 6-42, see Figure 6-024 for remanufactured part numbers, Includes: Ref. 1 -21

1шт.

123843A1

TRANSMISSION

ASSEMBLY, four wheel drive, 580L models, see Figure 6-024 and 6-028 - 6-044, see Figure 6-024 for remanufactured part numbers, Includes: Ref. 1 -21

1шт.

130787A1

TRANSMISSION

ASSEMBLY, four wheel drive, 580L models, see Figure 6-024 and 6-028 - 6-044, see Figure 6-024 for remanufactured part numbers, Includes: Ref. 1 -21

1шт.

130787A1R

REMAN-TRANSMISSION

Reman Transmission for PN 1320787A1

1шт.

130787A1C

CORE-TRANSMISSION

Return Number

1шт.

1

181199A3

PUMP

ASSEMBLY, oil, transmission, Replaces: P/N 181199A2, no longer available, order P/N 181199A4 , Includes: Ref. 2-21

1шт.

1

181199A4R

REMAN-HYD PUMP

570LXT, 580L

1шт.

1

181199A4C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

181143A1

SHAFT

small, not available for service, order P/N 181199A4 pump

1шт.

3

181270A1

SPRING

detent, not available for service, order P/N 181199A4 pump

1шт.

3a

192803A1

SPLIT PIN/SAFETY PIN

PIN valve

1шт.

4

198713A1

WASHER

STOP spring, not available for service, order P/N 181199A4 pump

1шт.

5

181109A1

SPLIT PIN

PIN roll, 5 x 22 mm, not available for service, order P/N 181199A4 pump

2шт.

6

192802A1

PISTON

VALVE piston

1шт.

7

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

Not available for service, Order P/N 181199A4 pump Hex Soc Hd, M6 x 25, 8.8

2шт.

8

NSS

NOT SOLD SEPARAT

SUPPORT pump

1шт.

9

181145A1

BALL

check, not available for service, order P/N 181199A4 pump

1шт.

10

181214A1

SPRING

detent, not available for service, order P/N 181199A4 pump

1шт.

11

198712A1

SPLIT PIN/SAFETY PIN

GUIDE spring, not available for service, order P/N 181199A4 pump

1шт.

12

181215A1

BUSHING

pump support, small, not available for service, order P/N 181199A4 pump

1шт.

13

181217A1

BUSHING

pump support, large, not available for service, order P/N 181199A4 pump

1шт.

14

181216A1

BUSHING

pump housing, not available for service, order P/N 181199A4 pump

1шт.

15

181205A1

OIL SEAL

SEAL oil, pump housing

1шт.

16

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

6шт.

17

NSS

NOT SOLD SEPARAT

HOUSING oil pump

1шт.

18

181269A1

PINION

GEAR large, 23 teeth, not available for service, order P/N 181199A4 pump

1шт.

19

181142A1

O-RING,2.5mm Thk x 183mm ID, 70 Duro

pump housing

1шт.

20

246767A1

BEARING, NEEDLE

BEARING needle, Replaces: P/N 181134A1 bearing, not available for service, order P/N 181199A4 pump

1шт.

21

181218A1

PINION

GEAR small, 12 teeth, not available for service, order P/N 181199A4 pump

1шт.

1

181199A4

PUMP

ASSEMBLY, oil, transmission, Carraro No. CA134725, Replaces: P/N 181199A2 or 181199A3 pump, Includes: Ref. 2 - 4

1шт.

1

181199A4R

REMAN-HYD PUMP

570LXT, 580L

1шт.

1

181199A4C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

247744A1

SHAFT

small, not available for service, order P/N 181199A4 pump

1шт.

3

181270A1

SPRING

detent, not available for service, order P/N 181199A4 pump

1шт.

3a

NSS

NOT SOLD SEPARAT

PIN valve, order P/N 247749A1 piston valve kit below

1шт.

Part of Piston Valve Kit P/N 247749A1

1шт.

4

198713A1

WASHER

STOP spring, not available for service, order P/N 181199A4 pump

1шт.

181199A4

PUMP

ASSEMBLY, oil, transmission, Carraro No. CA134725, Replaces: P/N 181199A2 or 181199A3 pump, Includes: Ref. 5 - 21

1шт.

5

181109A1

SPLIT PIN

PIN roll, 5 x 22 mm, not available for service, order P/N 181199A4 pump

2шт.

6

NSS

NOT SOLD SEPARAT

VALVE piston, order P/N 247749A1 piston valve kit

1шт.

Part of Piston Valve Kit P/N 247749A1

1шт.

7

864-6025

HEX SOC SCREW,M6 x 25mm, Cl 8.8

Not available for service, Order P/N 181199A4 pump Hex Soc Hd, M6 x 25, 8.8

2шт.

8

NSS

NOT SOLD SEPARAT

SUPPORT pump

1шт.

9

181145A1

BALL

check, not available for service, order P/N 181199A4 pump

1шт.

10

181214A1

SPRING

detent, not available for service, order P/N 181199A4 pump

1шт.

11

198712A1

SPLIT PIN/SAFETY PIN

GUIDE spring, not available for service, order P/N 181199A4 pump

1шт.

12

181215A1

BUSHING

pump support, small, not available for service, order P/N 181199A4 pump

1шт.

13

247746A1

BUSHING

pump support, large, not available for service, order P/N 181199A4 pump

1шт.

14

181216A1

BUSHING

pump housing

1шт.

15

181205A1

OIL SEAL

SEAL oil, pump housing

1шт.

16

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

6шт.

17

NSS

NOT SOLD SEPARAT

HOUSING oil pump

1шт.

18

247748A1

PINION

GEAR 23 teeth, charge pump, large, not available for service, order P/N 181199A4 pump

1шт.

19

181142A1

O-RING,2.5mm Thk x 183mm ID, 70 Duro

pump housing

1шт.

20

246767A1

BEARING, NEEDLE

BEARING needle, not available for service, order P/N 181199A4 pump

1шт.

21

181218A1

PINION

GEAR small, 12 teeth, not available for service, order P/N 181199A4 pump

1шт.

247749A1

SPARE PART SET

KIT piston valve, Includes: Ref. 3A and 6, not available for service, order P/N 181199A4 pump

1шт.
