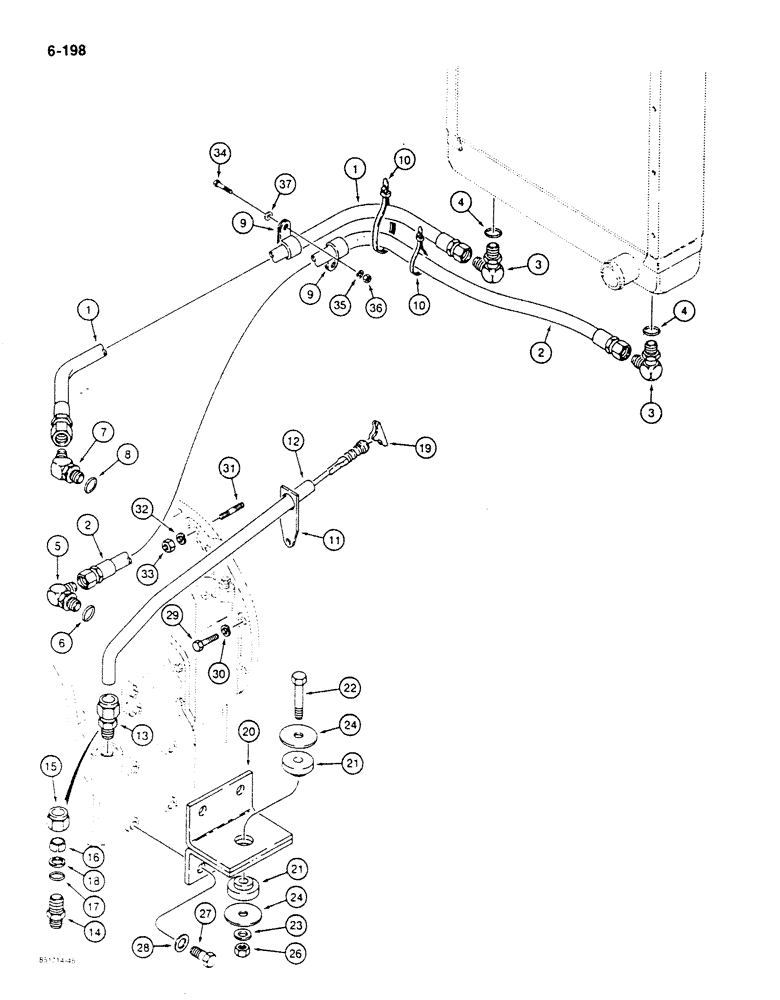

Запчасти Case 680K (6-198) - TRANSMISSION COOLING SYSTEM, MOUNTING AND DIPSTICK (06) - POWER TRAIN

1

L112690

HOSE,0.63" ID x 54.00"

Transmission to Cooler 0.63" ID x 54.00"

1шт.

2

L112691

HOSE,0.63" ID x 70.00", SAE J1402

Transmission from Cooler 0.63" ID x 70.00", SAE J1402

1шт.

3

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, male, Includes: Ref. 4

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

5

218-5550

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, adjustable, Includes: Ref. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

7

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, adjustable, Includes: Ref. 8

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

9

515-23254

CLAMP,1", Insul, 3/8" Bolt

Hose 1", Insul, 3/8" Bolt

2шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

11

D132042

SUPPORT ASSY.

SUPPORT - dipstick tube holder

1шт.

12

D132031

TUBE

- transmission dipstick

1шт.

13

222-3006

FITTING,1 1/2"-12 x 3/4" NPT

CONNECTOR ASSEMBLY - straight, dipstick, Includes: Ref. 14 - 18

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

15

222-3111

TUBE NUT,1"-12

NUT - connector

1шт.

16

222-3105

SLEEVE,1" Tube

- connector

1шт.

17

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

Connector -214, 70 Duro, .984" ID x .139" Thk

1шт.

18

D54295

RING

BACKUP RING - connector O-ring

1шт.

19

D132030

DIPSTICK

- transmission oil level

1шт.

20

D128660

BRACKET

- transmission mounting

2шт.

21

R49482

RUBBER MOUNTING

INSULATOR - mount

4шт.

22

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

23

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 3/4" ID x 1-3/8" OD, plated, hardened

2шт.

24

496-81011

WASHER,21/32" x 3" x .179", HDN

- flat, 5/8" ID x 1" OD, hardened

4шт.

26

231-41110

LOCK NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

27

7703572

BOLT,Hex 3/4" - 10 x 1 1/2", Gr 5

- hex head, 3/4" - 10 NC x 1-1/2", plated

8шт.

28

496-11078

WASHER

- flat, 3/4" ID x 1-1/2" OD, hardened, plated

8шт.

29

930051R1

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex head, 10 mm - 1.5 x 40 mm, plated

10шт.

30

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

10шт.

31

L112126

STUD

-, Serial Range: transmission-housing

2шт.

32

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

2шт.

33

825-1410

NUT,M10, Cl 8

2шт.

34

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", plated

1шт.

35

492-11038

LOCK WASHER,3/8"

1шт.

36

425-106

NUT,3/8"-16, Cl 5

1шт.

37

495-21044

WASHER,3/8"

1шт.
