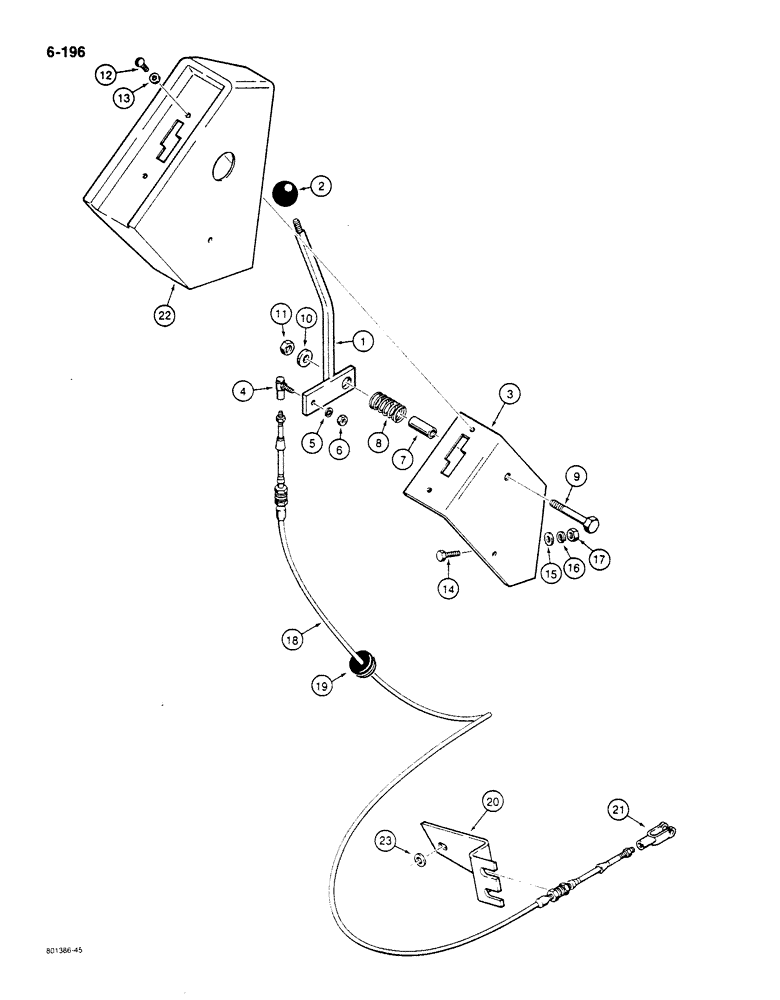

Запчасти Case 680K (6-196) - TRANSMISSION RANGE CONTROL (06) - POWER TRAIN

1

L101666

LEVER

- range control

1шт.

2

A18852

KNOB

- control lever

1шт.

3

L105156

BRACKET

- mounting, range control lever

1шт.

4

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT - ball, control lever

1шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4" -28 NF, plated

1шт.

7

L108369

BUSHING

SPACER - control lever mounting

1шт.

8

L101655

VALVE SPRING

SPRING - detent

1шт.

9

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex head, 1/2" - 13 NC x 2-3/4", plated

1шт.

10

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 1/2" ID x 1" OD, plated

1шт.

11

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" -13 NC, plated

1шт.

12

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- machine, oval Phillips head, No. 10 -24 NC x 3/4", black

3шт.

13

F43576

WASHER

- special

3шт.

14

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", plated

2шт.

15

495-21044

WASHER,3/8"

2шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

425-106

NUT,3/8"-16, Cl 5

2шт.

18

L112451

CABLE

- transmission range control

1шт.

19

248-2373

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

Cable 1/2" ID x 1 1/4" Groove Dia, Str Cut

1шт.

20

L101551

BRACKET

- cable shift

1шт.

21

A18709

CLEVIS

- cable

1шт.

22

L111760

HOUSING

CONSOLE - range control lever

1шт.

23

495-21050

WASHER,7/16"

- flat, , plated 7/16"

2шт.
