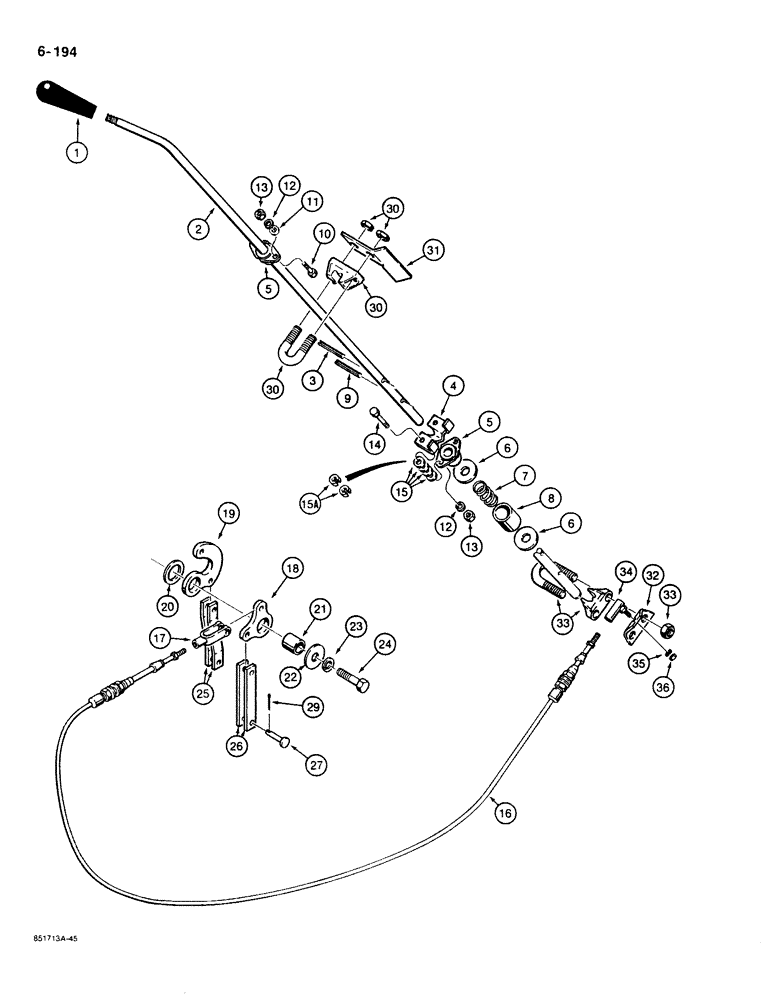

Запчасти Case 680K (6-194) - TRANSMISSION CONTROLS FORWARD AND REVERSE (06) - POWER TRAIN

1

L55721

HANDLE

- shift lever

1шт.

2

L108604

LEVER

- shift, forward and reverse

1шт.

3

553050R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, 1/4" x 1 3/4", Slotted

1шт.

4

L103553

PLATE

BRACKET - forward and reverse lever

1шт.

5

H755785

FLANGED BEARING,15.88mm ID

BEARING - forward and reverse lever

2шт.

6

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 3/4" ID x 1-3/8" OD, plated, hardened

2шт.

7

L74517

VALVE SPRING

SPRING - forward and reverse

1шт.

8

L12479

SLEEVE

- spring

1шт.

9

438-11624

ROLL PIN,6.35mm OD x 38.1mm L

Pin, 1/4" x 1 1/2", Slotted

1шт.

10

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/4" - 20 NC x 3/4", plated

2шт.

11

95-21031

WASHER,1/4"

- flat, , plated 1/4"

2шт.

12

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

13

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4" -20 NC, plated

4шт.

14

7703473

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

-hex head,, 1/4" - 20 NC x 1-1/4", plated

2шт.

15

95-21031

WASHER,1/4"

- flat, , plated, if used 1/4"

8шт.

15a

D123465

SPACER

- split, if used

2шт.

16

D127025

CABLE PULLING GRIP

CABLE - transmission shuttle control

1шт.

17

A18709

CLEVIS

- cable end

1шт.

18

L101546

LEVER

- shuttle

1шт.

19

D147826

CRANK LEVER

LEVER - range

1шт.

20

195-2102

WASHER,1 1/16" x 1 1/2" x .032"

- flat, 1", special, shim

1шт.

21

L101545

BUSHING

BUSING - bellcrank

1шт.

22

195-2053

WASHER,17/32" x 1 1/2" x .083"

- flat, 1/2", special

1шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

24

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

25

L101554

DRAG LINK

LINK - range control

2шт.

26

L101553

DRAG LINK

LINK - shuttle control

2шт.

27

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

plated 5/16" x .940", HDN

6шт.

29

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

6шт.

30

L79112

CLAMP

- transmission control, includes U-bolt and nuts

1шт.

31

L108304

PLATE ASSY.

PLATE - shuttle stop

1шт.

32

L108603

BRACKET

- shuttle cable

1шт.

33

L79112

CLAMP

- shuttle cable, includes U-bolt and nuts

1шт.

34

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT - ball, shuttle cable

1шт.

35

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

36

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4" - 28 NF, plated

1шт.
