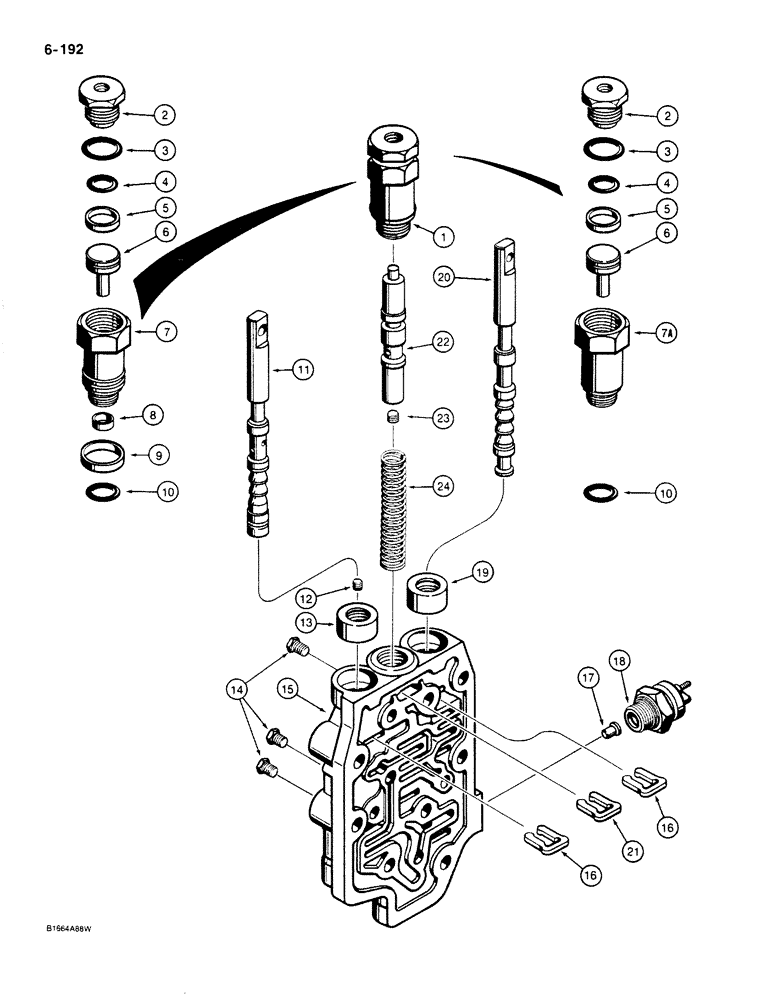

Запчасти Case 680K (6-192) - TRANSMISSION CONTROL VALVE ASSEMBLY (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - forward and reverse, see Figure 6-172 for transmission options, parts list Figures 6-172 thru 6-192, Includes: Valve Assy and Ref. 1 - 24

1шт.

N8879

LOCK VALVE

VALVE ASSEMBLY - transmission control, Includes: Ref. 1 - 20

1шт.

1

L33552

VALVE

PISTON ASSEMBLY - air, if used, Includes: Ref. 2 - 10

1шт.

1

N13301

HOUSING

PISTON ASSEMBLY - air, if used, Includes: Ref. 2 - 10

1шт.

2

N13302

PLUG

CAP - piston housing

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Piston housing cap

1шт.

4

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Piston -114, 70 Duro, .612" ID x .103" Thk

1шт.

5

L33575

RING

- piston

1шт.

6

L33576

PISTON

- air

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - piston, L33552 piston assembly

1шт.

7a

S300127

BODY

HOUSING - piston, N13301 piston assembly

1шт.

8

D87168

OIL SEAL

- oil, used with Ref. 7 housing only

1шт.

9

L30394

SEAL,23.02mm ID x 27mm OD x 6.35mm Thk

- band, used with Ref. 7 housing only

1шт.

10

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

Seal -115, 70 Duro, .674" ID x .103" Thk

1шт.

NSS

NOT SOLD SEPARAT

SPOOL ASSEMBLY - transmission control valve, Includes: Ref. 11 - 20

1шт.

11

E114395

SPOOL

- range selector, Includes: Ref. 12

1шт.

12

221-850

PLUG,Hex Soc, 1/16"-27

- hex socket head, 1/16" NPT, range selector spool

1шт.

13

D63387

OIL SEAL,15.88mm ID x 28.7mm OD x 13.87mm Thk

- oil, body

1шт.

14

221-850

PLUG,Hex Soc, 1/16"-27

- hex head, 1/16" NPT, magnetic

3шт.

15

NSS

NOT SOLD SEPARAT

BODY - transmission control valve

1шт.

16

E114397

STOP

- spool

2шт.

17

E114398

PIN

- neutral start switch

1шт.

18

E114399

SWITCH

- neutral start, see Figures 4-94 and 4-96 for electrical connections

1шт.

19

D63387

OIL SEAL,15.88mm ID x 28.7mm OD x 13.87mm Thk

- oil, body

1шт.

20

N7205

SPOOL

- control valve, forward and reverse

1шт.

21

E114397

STOP

- spool

1шт.

22

N7204

SPOOL

- clutch cutout, Includes: Ref. 23

1шт.

23

221-850

PLUG,Hex Soc, 1/16"-27

- hex socket head, 1/16" NPT, spool

1шт.

24

E114402

SPRING

- control valve

1шт.
