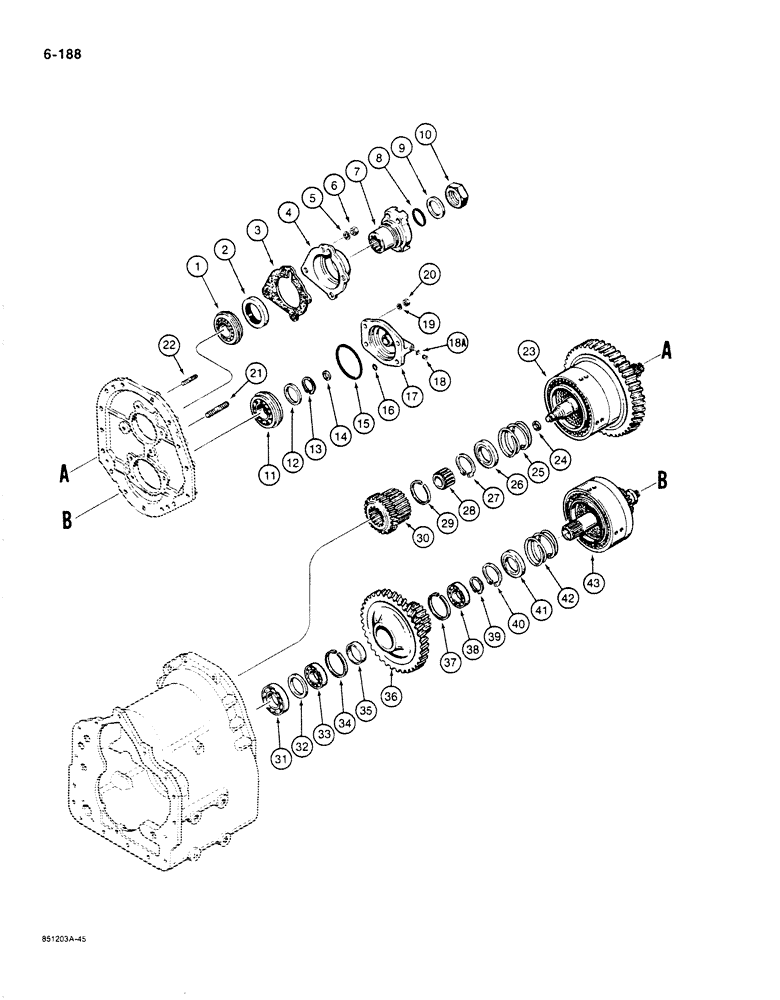

Запчасти Case 680K (6-188) - TRANSMISSION OUTPUT SHAFT, LOW AND THIRD GEARS (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - forward and reverse, see Figure 6-172 for transmission options, parts list Figures 6-172 through 6-192, Includes: Ref. 1 - 43

1шт.

1

1537147C1

BALL BEARING,39.99mm ID x 89.99mm OD x 22.94mm W

BEARING - rear, output shaft

1шт.

2

E114372

OIL SEAL,53.98mm ID x 79.55mm OD x 9.53mm Thk

- oil, rear bearing cap

1шт.

3

N7206

GASKET

- bearing cap

1шт.

4

N7207

BEARING CAP

CAP - output shaft rear bearing

1шт.

5

492-11056

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

4шт.

6

425-119

NUT,Hex, 9/16"-18, G5

- hex, 9/16" - 12 NC, plated

4шт.

7

A19928

FLANGE

- output

1шт.

8

238-5220

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

Flange -220, 70 Duro, 1.359" ID x .139" Thk

1шт.

9

A17938

WASHER

- flange, large

1шт.

10

A55863

LOCK NUT

- flange, special

1шт.

11

N7276

BALL BEARING,50mm ID x 110mm OD x 27mm W

BEARING - rear, low speed shaft

1шт.

12

E114268

BEARING WASHER

WASHER - rear bearing support

1шт.

13

E114334

CLIP

RING - rear bearing retainer

1шт.

14

E114360

RING,16.77mm ID x 19.47mm OD x 3.1mm Thk

- piston, low shaft

1шт.

15

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

Rear bearing cap, large -247, 70 Duro, 4.609" ID x .139" Thk

1шт.

16

238-5110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

. Bearing cap, rear, small -110, 70 Duro, .362" ID x .103" Thk

1шт.

D142270

CAP

HOUSING ASSEMBLY - rear bearing cap, Includes: Ref. 17 - 18A

1шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - rear bearing

1шт.

18

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Includes Ref. 18A Hex Hd, 3/8"-24 ORB

1шт.

18a

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, Plug

1шт.

19

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

20

50456

NUT,7/16"-20, G5

NUT - hex, 7/16" - 20 NF, plated

4шт.

21

N7209

BEARING CAP

STUD - bearing cap

4шт.

22

N7210

STUD

- output bearing cap, rear

4шт.

23

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - third, output shaft, parts list Figure 6-190

1шт.

24

E114360

RING,16.77mm ID x 19.47mm OD x 3.1mm Thk

- piston, output shaft

1шт.

25

E114331

SPRING

- piston return

1шт.

26

E114332

RETAINER

- spring

1шт.

27

N7269

RING

- retaining, spring

1шт.

28

N7211

ROLLER CAGE BEARING,38.1mm ID x 47660mm OD x 25.4mm

BEARING - pilot

1шт.

29

S117877

RING

- retainer, third gear and hub

1шт.

30

N8418

GEAR WHEEL

GEAR - third, 29 tooth, used on D140040 transmission, Includes: Ref. 30A

1шт.

30a

N13129

RING

- oil retaining, gear, third, not shown

1шт.

The oil retaining ring is an internal part of the hub and gear and it is recommended that the ring should not be removed.

1шт.

31

E114340

BALL BEARING

BEARING - front, low speed clutch shaft

1шт.

32

E114341

SPACER

- front bearing

1шт.

33

G10418

BEARING, BALL

BEARING - gear, low speed

1шт.

34

S89658

RING

- locating, low speed gear bearing

1шт.

35

N7213

SPACER

- low speed gear

1шт.

36

N7214

GEAR

HUB - low gear, 53 tooth used on D140040 transmission, Includes: Ref. 36A

1шт.

36a

N13129

RING

- oil retaining, low gear hub, not shown

1шт.

The oil retaining ring is an internal part of the hub and gear and it is recommended that the ring should not be removed.

1шт.

37

S89658

RING

- locating, bearing

1шт.

38

G10418

BEARING, BALL

BEARING - low speed gear

1шт.

39

E114334

CLIP

RING - retaining, bearing

1шт.

40

N7269

RING

- snap, spring retainer

1шт.

41

E114332

RETAINER

- spring

1шт.

42

E114331

SPRING

- piston return

1шт.

43

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - low, parts list Figure 6-178

1шт.
