Запчасти Case 680K (6-186) - CHARGING PUMP AND REVERSE IDLER (CONTD) (06) - POWER TRAIN

REF

INSTRUCTION

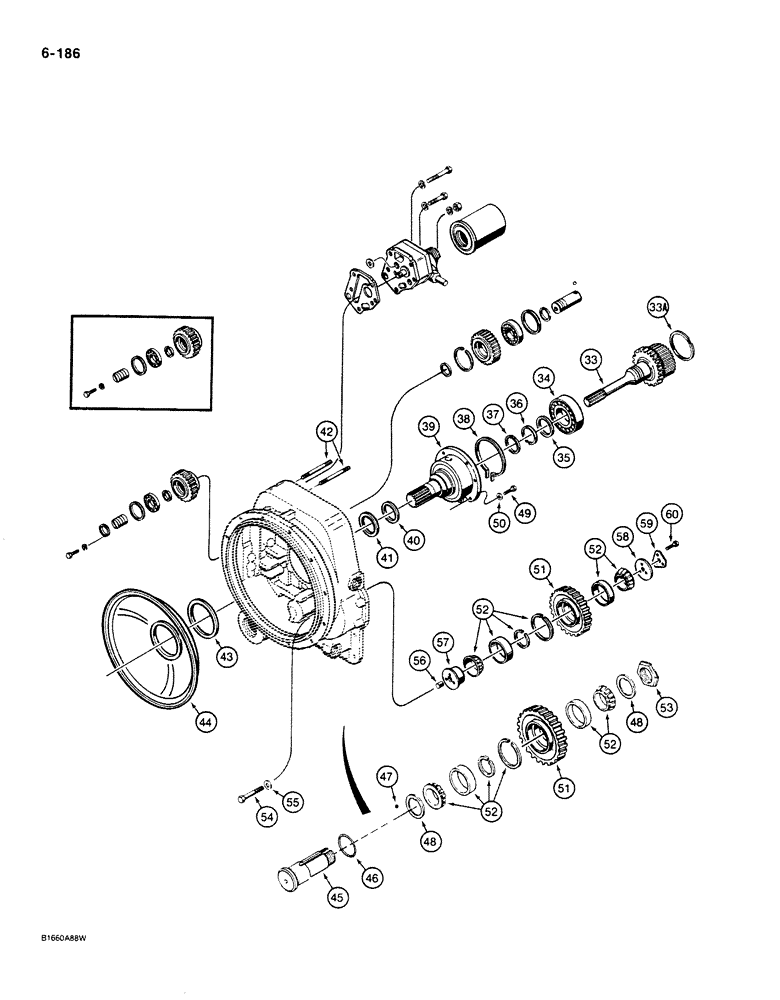

TRANSMISSION ASSEMBLY - forward and reverse, see Figure 6-172 for transmission options, parts list Figures 6-172 through 6-192, Includes: Ref. 1 - 32 on Figure 6-184 and Ref. 33 - 60 on this figure

1шт.

33

N7150

SHAFT

- turbine and hub, Includes: Ref. 33A

1шт.

33a

N13129

RING

- retaining, turbine and hub shaft

1шт.

The oil retaining ring is an internal part of the shaft and it is recommended that the ring should not be removed.

1шт.

34

N7486

BALL BEARING,1.9685" ID x 4.3307" OD x 1.063"

BEARING - turbine shaft

1шт.

35

E114268

BEARING WASHER

WASHER - bearing locating

1шт.

36

E104161

RING

- bearing retaining

1шт.

37

A17901

SEAL

RING - piston

1шт.

38

292417A1

CIRCLIP

RING - locating, bearing

1шт.

39

N8545

SUPPORT

- stator

1шт.

40

D87245

RING

SPRING - piston ring expander

1шт.

41

N7152

RING

- piston

1шт.

42

N7153

STUD

- pump mounting

3шт.

43

S117088

OIL SEAL

SEAL - oil, baffle

1шт.

44

E114272

BAFFLE

- housing

1шт.

45

E135857

SHAFT

- reverse idler, if used

1шт.

46

238-5223

O-RING,0.139" Thk x 1.609" ID, -223, Cl 5, 75 Duro

Idler shaft, if used -223, 70 Duro, 1.609" ID x .139" Thk

1шт.

47

211-208

BALL,5/16" Dia

- 5/16", grade 25, chrome alloy steel, if used

1шт.

48

D142277

PLATE ASSY.

PLATE - thrust, if used

2шт.

49

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1"

6шт.

50

492-11038

LOCK WASHER,3/8"

6шт.

51

N7155

GEAR

- reverse idler

1шт.

52

N7190

BEARING ASSY,45.24mm ID x 77.81mm OD x 44.67mm W

BEARING - reverse idler gear, matched parts not serviced separately

1шт.

53

D142278

BEARING LOCK NUT

NUT - special, if used

1шт.

54

28-744

BOLT,Hex, 7/16" - 20 x 2-3/4", Gr 8

- hex head, 7/16" -20 NF x 2-3/4", grade 8, if used

3шт.

55

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , If used 7/16"

3шт.

56

E114275

PIN

- shaft, reverse idler, if used

1шт.

57

N7154

SHAFT

- reverse idler, if used

1шт.

58

E114278

PLATE

- retaining, reverse idler gear, if used

1шт.

59

E114279

PLATE ASSY.

PLATE - lock, if used

1шт.

60

328-716

BOLT,Hex, 7/16" - 20 x 1", Gr 8

If used Hex, 7/16"-20 x 1", G8, Full Thd

3шт.
