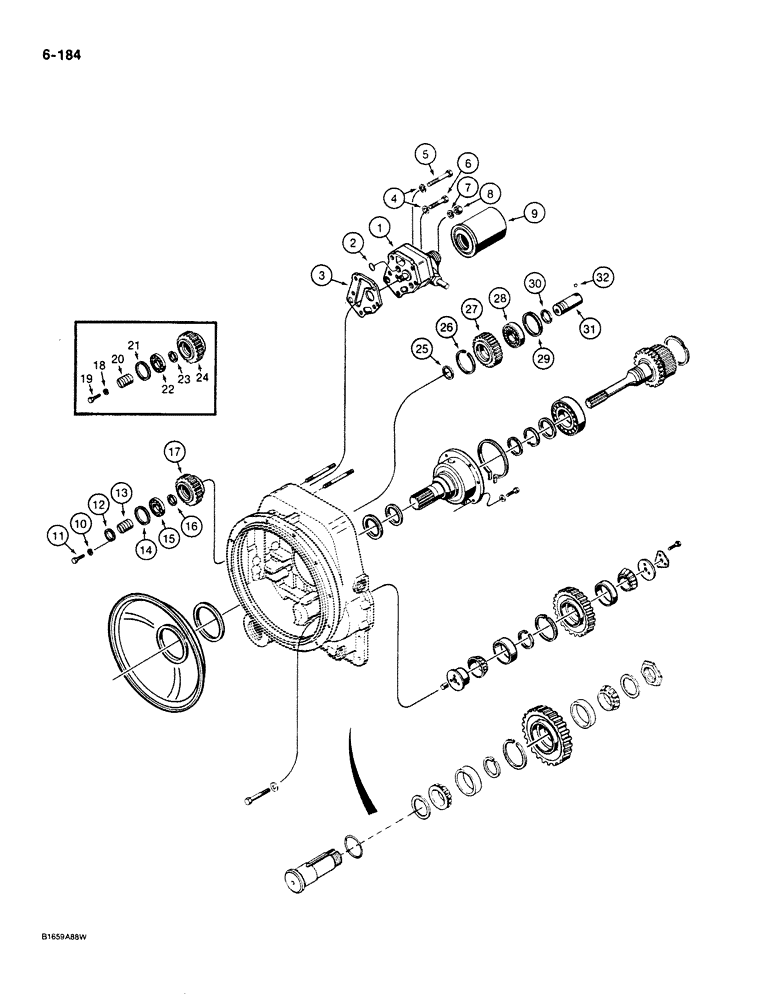

Запчасти Case 680K (6-184) - CHARGING PUMP AND REVERSE IDLER (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - forward and reverse, see Figure 6-172 for transmission options, parts list Figures 6-172 through 6-192, Includes: Ref. 1 - 32 on this figure and Ref. 33 - 60 on Figure 6-186

1шт.

1

D87252

PUMP

- charging, transmission

1шт.

2

E114251

O-RING

- charging pump

1шт.

3

E114250

GASKET

- charging pump to converter housing

1шт.

4

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

5

113-352

BOLT,Hex, 7/16" - 14 x 4-1/2", Gr 5

1шт.

6

413-764

BOLT,Hex, 7/16" - 14 x 4", Gr 5

- hex head, 7/16" - 14 NC x 4", plated

2шт.

7

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Pump mounting stud 7/16"

3шт.

8

50456

NUT,7/16"-20, G5

NUT - hex, 7/16" - 20 NF, pump mounting stud, plated

3шт.

9

D146735

FILTER

- charging pump

1шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", plated

2шт.

12

E114258

RING

- bearing locating

1шт.

13

E114259

SUPPORT

- pump drive bearing

1шт.

14

L30725

RING

- bearing retaining

1шт.

15

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- pump drive gear

1шт.

16

E114258

RING

- bearing locating

1шт.

17

N7147

GEAR

- pump drive

1шт.

18

492-11038

LOCK WASHER,3/8"

2шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" -16 NC x 1-1/4", plated

2шт.

20

E114259

SUPPORT

- auxiliary pump drive bearing

1шт.

21

N7265

RING

- bearing retaining

1шт.

22

ST204A

BALL BEARING,35mm ID x 71.99mm OD x 17mm W

BEARING - pump drive gear

1шт.

23

E114258

RING

- bearing locating

1шт.

24

N7203

GEAR

- auxiliary pump drive

1шт.

25

E114258

RING

- bearing locating, idler gear, small

1шт.

26

S89658

RING

- bearing locating, idler gear, large

1шт.

27

N7148

GEAR

- pump drive idler

1шт.

28

A26537

BALL BEARING,34.99mm ID x 80mm OD x 21mm W

BEARING - idler stub shaft

1шт.

29

S89658

RING

- bearing retaining

1шт.

30

E114258

RING

- bearing locating

1шт.

31

N7149

SHAFT

- stub, idler gear

1шт.

32

211-206

BALL,1/4" Dia

- 1/4", grade 25, chrome alloy, lock, stub shaft

1шт.
