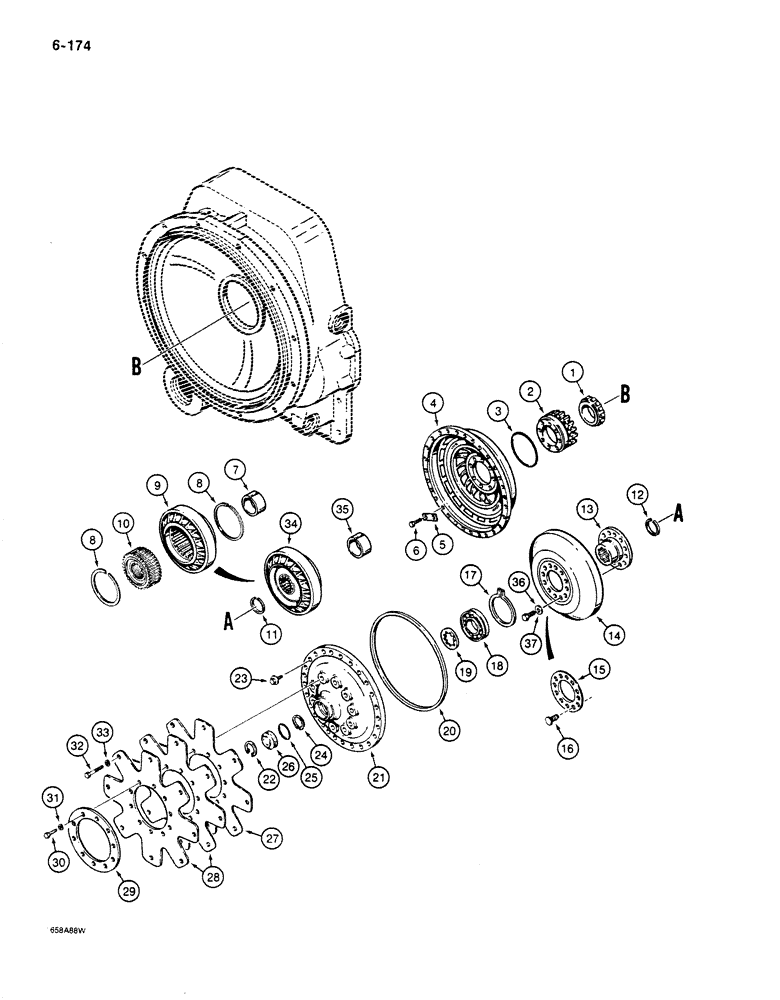

Запчасти Case 680K (6-174) - TRANSMISSION IMPELLER, TURBINE AND FLEX PLATE (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - forward and reverse, see Figure 6-172 for transmission options, parts list Figures 6-172 through 6-192, Includes: Ref. 1 - 31

1шт.

1

N7257

BEARING, ROLLER, CYL,45mm ID x 74.94mm OD x 18.99mm

BEARING - impeller hub gear

1шт.

2

N7191

GEAR

- impeller hub

1шт.

3

E114281

O-RING,3.63mm Thk x 92.89mm ID, 75 Duro

- impeller hub

1шт.

4

N7192

IMPELLER

- torque converter

1шт.

5

E114283

LOCK

TAB - lock, Serial Range: impeller-hub

4шт.

6

25770R1

BOLT,Hex, 3/8" - 24 x 3/4", Gr 8

- hex head, 3/8" - 24 NF x 3/4", grade 8

8шт.

7

N14257

SPACER

- vane, used with N7686 clutch, 1-1/16" long

1шт.

8

N7262

RING, SNAP

RING - freewheel outer race, used with N7686 clutch

2шт.

9

N7377

MEMBER

STATOR - converter, used with N7686 clutch

1шт.

10

N7686

CLUTCH ASSEMBLY

CLUTCH - freewheel

1шт.

11

E114286

CIRCLIP

RING - retaining, bearing, small

1шт.

12

E114288

RING

- retaining, hub

1шт.

13

N7378

BRACKET

HUB - turbine

1шт.

14

N7379

TURBINE

- shift

1шт.

15

E135855

WASHER

RING - retainer, turbine to hub, if used

1шт.

16

D142272

LOCK BOLT,Locking, Hex, 3/8" - 24 x 3/4", Gr 8

BOLT - special, turbine to hub, if used

12шт.

17

E114290

RING

- locating, hub bearing

1шт.

18

E114291

BALL BEARING

BEARING - turbine hub

1шт.

19

E114292

WASHER

- bearing retaining

1шт.

20

W530446

O-RING,Square, 2.69mm Thk x 64.52mm ID

RING -, Serial Range: impeller-cover

1шт.

N14131

COVER

ASSEMBLY - impeller, Includes: Ref. 21, 22

1шт.

21

NSS

NOT SOLD SEPARAT

COVER - impeller

1шт.

22

S300892

SNAP RING

RING - snap, bore plug retainer

1шт.

23

D58177

CAPTIVE WASHER SCREW,3/8" - 16 x 1"

BOLT - hex head, 3/8" - 16 NC x 1", special

24шт.

24

E114288

RING

- snap, turbine retaining

1шт.

25

22277R1

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

- impeller cover, bore plug

1шт.

26

E114296

PLUG

- bore

1шт.

D142271

KIT

- flex plate, drive, Includes: Ref. 27 - 31

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE - flex, drive, threaded bolt holes

1шт.

28

NSS

NOT SOLD SEPARAT

PLATE - flex, drive

2шт.

29

E114300

PLATE

RING - flex plate

1шт.

30

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

10шт.

31

492-11038

LOCK WASHER,3/8"

10шт.

32

414-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- hex head, 3/8" - 24 NF x 1-3/4", plated

8шт.

33

492-11038

LOCK WASHER,3/8"

8шт.

34

N7688

STATOR

HUB - impeller, with fixed stator, may be converted to free wheeling stator by ordering Ref. 7 - 10

1шт.

35

N7687

SPACER

- vane, used with N7688 hub, 1-3/8" long

1шт.

36

A18033

SCREW

- hex head, 3/8" - 24 NF x 1-3/4", if used

12шт.

37

496-21041

WASHER,13/32" x 13/16" x .089", HDN

If used 13/32" x 13/16" x .089", HDN

12шт.
