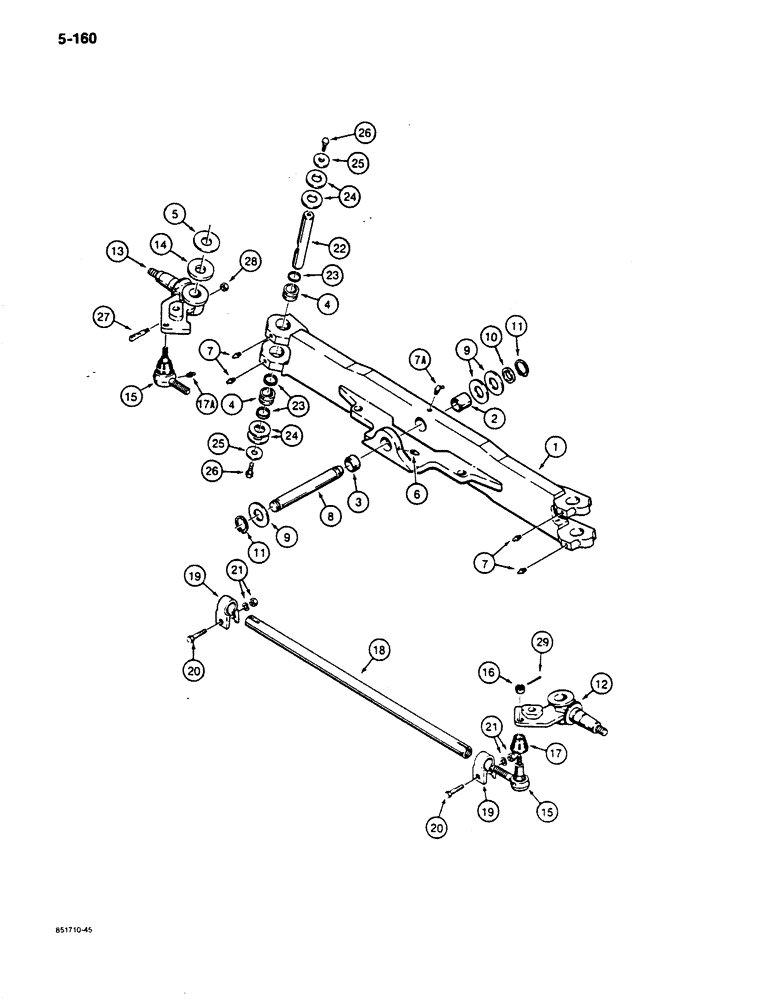

Запчасти Case 680K (5-160) - L109624 FRONT AXLE, SPINDLES AND TIE ROD (05) - STEERING

1

L109624

AXLE

ASSEMBLY - front steering, if used, also see front steering axle assembly on Figure 5-158, see Figure 5-166 for tires and wheels used with this axle assembly, Includes: Ref. 2 - 5

1шт.

2

L109416

BUSHING

- axle to chassis, front

1шт.

3

L109415

BUSHING

BUSING - axle to chassis, rear

1шт.

4

L109617

BUSHING

- steering arm pin

4шт.

5

L109621

SHIM,.25" Thk

Thrust washer .25" Thk

2шт.

6

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

7

77081

FITTING

- grease, 45 degree, special short, 1/8" NPT

4шт.

7a

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Special short 90º, 1/8" NPT x .84" lg

1шт.

8

L101397

SHAFT

PIN - pivot, Serial Range: axle-chassis

1шт.

9

D143408

WASHER,51.56mm ID x 101.6mm OD x 1.98mm Thk

SHIM -, Serial Range: axle-chassis

1шт.

10

495-81282

WASHER,2 1/16" x 3" x .109"

- flat, 2", special, plated

1шт.

11

103-16200

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

2шт.

12

L109622

SPINDLE

ARM - steering, spindle, right-hand

1шт.

13

L109623

SPINDLE

ARM - steering, spindle, left-hand, Includes: Ref. 14

1шт.

14

L109621

SHIM,.25" Thk

Thrust washer, Used with L109622 and L109623 steering arms .25" Thk

1шт.

L101306

ROD

ASSEMBLY - tie, front steering, Includes: Joint Assy and Ref. 15 - 21

1шт.

N7373

END

JOINT ASSEMBLY - ball, tie rod to spindle, left-hand, Includes: Ref. 15 - 17

1шт.

N7376

END ASSY.

JOINT ASSEMBLY - ball, tie rod to spindle, right-hand, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

JOINT - ball, tie rod

1шт.

16

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8" - 18 NF, plated

1шт.

17

A31186

BOOT

SEAL - dust cover

1шт.

17a

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

18

N7374

TUBE

- tie rod

1шт.

446308C91

CLAMP

ASSEMBLY, Includes: Ref. 19 - 21

2шт.

19

NSS

NOT SOLD SEPARAT

CLAMP - ball joint retaining

1шт.

20

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex head, 5/8" -11 NC x 2-3/4", plated

1шт.

21

230-41110

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8" - 11 NC, plated, includes lock washer

1шт.

22

L109616

PIN

- steering arm

2шт.

23

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

- steering arm pin

6шт.

24

495-81230

WASHER,2.31" ID x 3.5" OD x 0.13" Thk

- flat, 2-1/4", plated, used as a spacer

1шт.

25

95-81123

WASHER,0.81" ID x 3" OD x 0.24" Thk

- flat, 3/4", special, steering arm pin

4шт.

26

413-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

- hex head, 3/4" - 10 NC x 1-1/4", plated

4шт.

27

L101420

PIN

- lock, steering arm

2шт.

28

131-1330

JAM NUT,Jam, 5/8"-18

NUT - hex, jam, self-locking, 5/8" - 18 NF, plated

2шт.

29

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.
