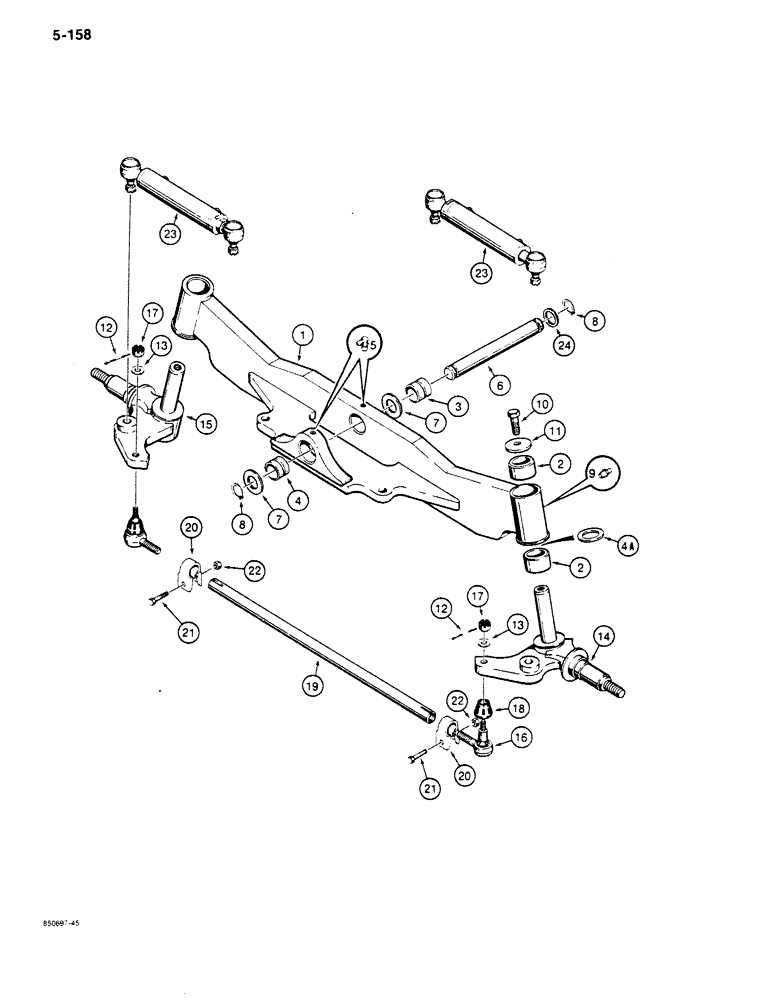

Запчасти Case 680K (5-158) - L73640 FRONT AXLE, SPINDLES AND TIE ROD (05) - STEERING

1

L73640

CENTER AXLE

AXLE ASSEMBLY - front steering, if used, also see front steering axle assembly on Figure 5-160, see Figure 5-164 for tires and wheels used with this assembly, Includes: Ref. 2 - 4A

1шт.

2

L71756

BUSHING,61.98mm ID x 66.65mm OD x 38.1mm L

- steering arm pin

4шт.

3

L109417

BUSHING

-, Serial Range: axle-chassis

1шт.

4

L109415

BUSHING

- axle to chassis, rear

1шт.

4a

L71369

SHIM

- thrust, steering

2шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Special short 90º, 1/8" NPT x .84" lg

2шт.

6

L101397

SHAFT

PIN - pivot, Serial Range: axle-chassis

1шт.

7

D143408

WASHER,51.56mm ID x 101.6mm OD x 1.98mm Thk

SHIM -, Serial Range: axle-chassis

1шт.

8

103-16200

SNAP RING,#200, Ext

Ring, Snap, , Pin #200, Ext

2шт.

9

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

10

7703572

BOLT,Hex 3/4" - 10 x 1 1/2", Gr 5

- hex head, 3/4" - 10 NC x 1-1/2", plated

2шт.

11

A61406

WASHER

- steering arm pin

2шт.

12

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

13

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

2шт.

14

L105731

SPINDLE

- includes king pin, steering, right-hand

1шт.

15

L105732

SPINDLE

- includes king pin, steering, left-hand

1шт.

L70639

ROD

ASSEMBLY - tie, front steering, Includes: Joint Assy and Ref. 16 - 18

1шт.

D66470

BALL JOINT

JOINT ASSEMBLY - ball, tie rod to spindle, right-hand, Includes: Ref. 16 - 18

1шт.

D66467

ARTICULATION

JOINT ASSEMBLY - ball, tie rod to spindle, left-hand, Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

JOINT - ball, tie rod

1шт.

17

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8" - 18 NF, plated

1шт.

18

A31186

BOOT

- dust cover

1шт.

19

D66468

TUBE

- tie rod

1шт.

225265R1

CLAMP

ASSEMBLY - ball joint retaining, Includes: Ref. 20 - 22

2шт.

20

NSS

NOT SOLD SEPARAT

CLAMP - ball joint

1шт.

21

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2", plated

2шт.

22

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

2шт.

23

G102602

CYLINDER

ASSEMBLY - steering, parts list Figure 5-156

2шт.

24

95-81155

WASHER,52.38mm ID x 76.2mm OD x 3.35mm Thk

- flat, 2", special

1шт.
