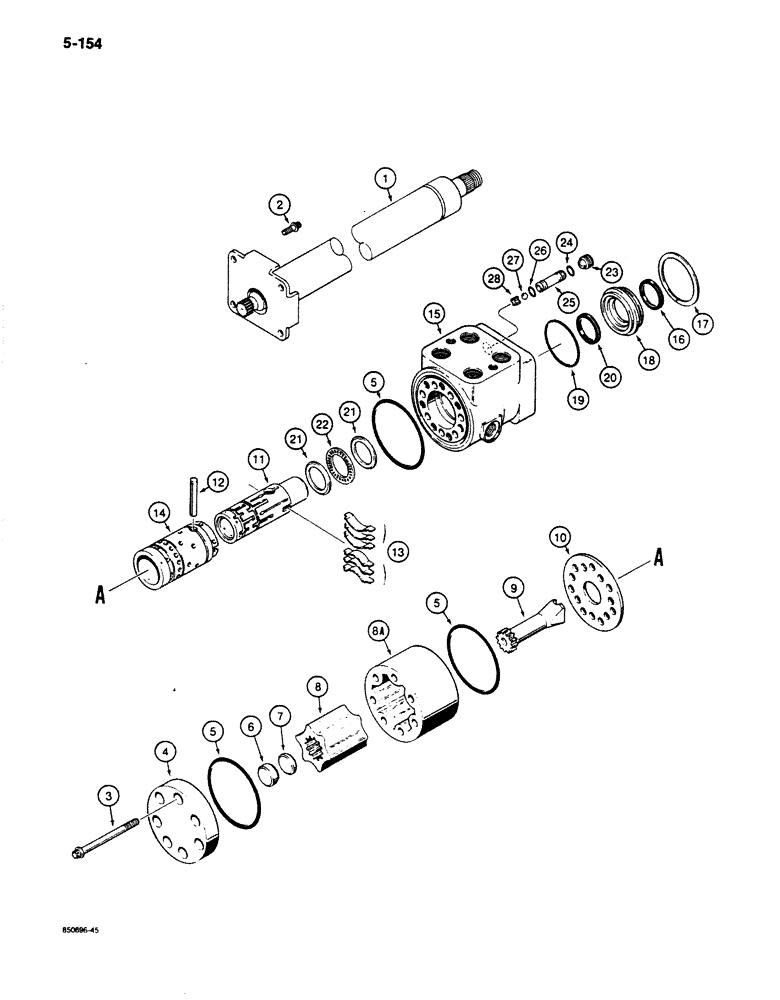

Запчасти Case 680K (5-154) - L102601 STEERING COLUMN AND CONTROL VALVE (05) - STEERING

L102601

LOCK VALVE

VALVE ASSEMBLY - steering control, includes steering column, Includes: Ref. 1 - 28

1шт.

1

D80622

STEERING COLUMN

COLUMN ASSEMBLY - steering, component parts not serviced separately

1шт.

2

166-42

12 PT SCREW,Flg, 3/8" - 16 x 5/8", Gr 8

BOLT - Ferry head, 3/8" - 16 NC x 5/8", grade 8

2шт.

245616A1

PUMP

VALVE ASSEMBLY - steering control, Includes: Ref. 3 - 28

1шт.

3

79-1532

12 PT SCREW,Flg, 5/16" - 24 x 2", Gr 8

BOLT - Ferry head, 5/16" -24 NF x 2", grade 8

7шт.

4

136493A1

COVER

- end

1шт.

5

238-5040

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

-040, 70 Duro, 2.864" ID x .070" Thk

3шт.

Part of seal kit D82802

1шт.

6

S110168

SPACER

- large

1шт.

7

N7162

SPACER

- small

1шт.

1343636C1

ROTOR

GEROTOR SET - steering control valve, Includes: Ref. 8, 8A

1шт.

8

NSS

NOT SOLD SEPARAT

ROTOR - steering control valve

1шт.

8a

NSS

NOT SOLD SEPARAT

STATOR - steering control valve

1шт.

9

18-128

DRIVE

SHAFT - drive, gerotor set

1шт.

10

136493A1

COVER

PLATE - spacer

1шт.

S115563

BODY

SPOOL ASSEMBLY - control valve, Includes: Ref. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL - sleeve

1шт.

12

L30888

PIN

- sleeve

1шт.

13

N14250

KIT

SPRING - spool

6шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE - spacer plate

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - steering control valve

1шт.

Note lower port. Actual port is on top, 7/16-20 UNF. Four corner ports are 3/4-16 UNF. Two middle holes are .375-24 UNF - 2B.

1шт.

16

18-137

OIL SEAL

- bushing

1шт.

Part of seal kit D82802

1шт.

17

18-1696

SEALING RING

RING - retaining, bushing

1шт.

18

18-1695

BUSHING

- seal

1шт.

19

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

Body -225, 70 Duro, 1.859" ID x .139" Thk

1шт.

Part of seal kit D82802

1шт.

20

201893H1

SEALING RING

SEAL - ring

1шт.

Part of seal kit D82802

1шт.

21

D82804

RACE

WASHER - thrust, control valve

2шт.

22

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST, Control valve

1шт.

23

D82805

SET SCREW

SCREW - set, housing

1шт.

24

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, Spool

1шт.

Part of seal kit D82802

1шт.

25

D82806

VALVE SEAT

SPOOL - ball retainer

1шт.

26

L30893

O-RING,1/16" Thk x 5/16" ID

- spool, 7/16 x 5/16 x 1/16 in

1шт.

Part of seal kit D82802

1шт.

27

211-1010

BALL,5/16" OD

- 5/16", grade 200, chrome alloy steel

1шт.

28

2-2059

RETAINER

- ball

1шт.

D82802

SEAL PACKAGE

KIT - seal, Includes: Ref. 5, 16, 19, 20, 24, 26

1шт.
