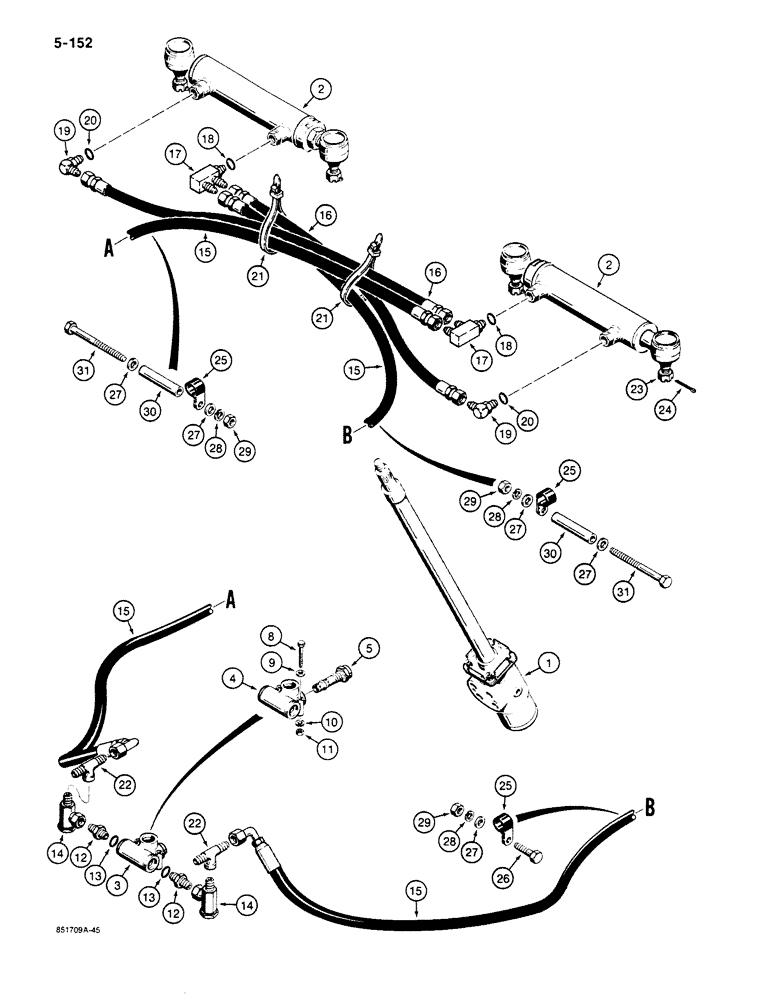

Запчасти Case 680K (5-152) - STEERING HYDRAULIC CIRCUIT, STEERING CONTROL VALVE TO CYL., HOSES MOUNTED BEHIND STEERING CYL. (05) - STEERING

1

L102601

LOCK VALVE

VALVE ASSEMBLY - steering control, parts list Figure 5-154

1шт.

2

G102602

CYLINDER

ASSEMBLY - steering, parts list Figure 5-156

2шт.

3

L59037

LOCK VALVE

VALVE ASSEMBLY - circuit relief, steering, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

5

18-226

CARTRIDGE

ASSEMBLY - relief, Includes: Ref. 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

CARTRIDGE - relief, non-adjustable, not shown

1шт.

7

R31000

SEAL KIT

KIT - repair, seal, not shown, includes (4) O-rings and (2) backup washers

1шт.

8

7701485

BOLT,Hex, 1/4" - 20 x 2", Gr 5

- hex head, 1/4" - 20 NC x 2", plated

2шт.

9

95-21031

WASHER,1/4"

- flat, , plated 1/4"

2шт.

10

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4" - 20 NC, plated

2шт.

12

218-5442

HYD CONNECTOR,3/4"-16 O-Ring x 3/8" NPTF

ADAPTER - straight, check valve to relief valve, Includes: Ref. 13

2шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

14

L59038

LOCK VALVE

VALVE - check, steering control valve

2шт.

15

L108303

HOSE

- 85" (2159 mm) long, Serial Range: valve-cylinders

2шт.

16

L103800

HOSE,0.38" ID x 40.00", SAE 100R1 Type A

Right Hand to Left Hand, Cylinders 0.38" ID x 40.00", SAE 100R1 Type A

2шт.

17

L57911

FITTING

- special, closed end of cylinder, Includes: Ref. 18

2шт.

19

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree adjustable, rod end of cylinder, Includes: Ref. 20

2шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

22

218-573

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Fem Br

- at check valve

2шт.

23

425-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex, slotted, 7/8" - 14 NF, plated

4шт.

25

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- hose

3шт.

26

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", plated

1шт.

27

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 3/8", hardened, plated

5шт.

28

492-11038

LOCK WASHER,3/8"

3шт.

29

425-106

NUT,3/8"-16, Cl 5

3шт.

30

221338H1

SPACER,10.3mm ID x 15.88mm OD x 50.8mm L

- 2" long, hose clamp

2шт.

31

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex head, 3/8" - 16 NC x 3-1/2", plated

2шт.

24

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

4шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Fitting

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Elbow

1шт.
