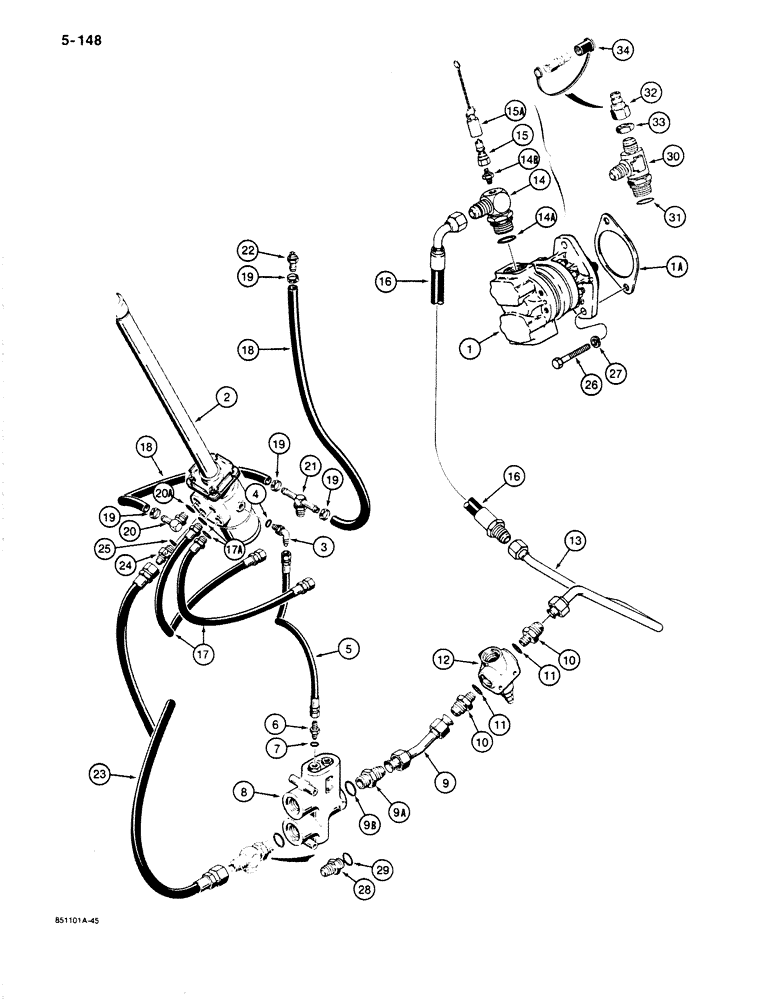

Запчасти Case 680K (5-148) - STEERING HYDRAULIC CIRCUIT, STEERING PUMP TO STEERING CONTROL VALVE (05) - STEERING

1

D127916

PUMP

ASSEMBLY - steering hydraulic, parts list Figure 8-286

1шт.

1a

144169C2

GASKET,0.79mm Thk

- hydraulic pump

1шт.

2

L102601

LOCK VALVE

VALVE ASSEMBLY - steering control, parts list Figure 5-154

1шт.

3

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, adjustable, Includes: Ref. 4

1шт.

4

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Elbow

1шт.

5

183531C1

HOSE,6.35 mm ID x 686.00, SAE 100R1 CLASS 7

- 27" (686 mm) long, flow control valve to steering control valve

1шт.

6

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, Incl. Ref. 7

1шт.

7

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, Adapter

1шт.

8

L102602

LOCK VALVE

VALVE ASSEMBLY - flow control, parts list Figure 8-334

1шт.

9

L103972

TUBE,0.75" OD x 6.4, 1.85" L

- relief to flow control

1шт.

9a

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, male, Incl. Ref. 9B

1шт.

9b

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

10

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, male, Includes: Ref. 11

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

12

D131348

LOCK VALVE

VALVE ASSEMBLY - relief, parts list Figure 8-336

1шт.

13

L110972

TUBE,0.75" OD

- supply to relief

1шт.

14

H289058

ADAPTER

ELBOW - 90 degree, special, if used, Includes: Ref. 14A

1шт.

14a

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow, if used

1шт.

14b

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

CONNECTOR, , Straight, if used 1/4"-18 NPTF

1шт.

15

S206607

DISC

COUPLING - pressure check, if used

1шт.

15a

S206608

CAP

- dust, if used

1шт.

16

L110999

HOSE

- 23" (584 mm) long, pump to relief valve

1шт.

17

L103395

HOSE,0.38" ID x 18.00", SAE 100R1

- 18" (457 mm) long, steering cylinders, Includes: Ref. 17A

2шт.

17a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Hose

1шт.

18

S118388X

LARGE HOSE,12.7mm ID x 6350mm L, SAE 100R3

HOSE - 16" (406 mm) long, return

4шт.

19

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

4шт.

20

217-348

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/4" - 16 Male ORB

- stem, 90 degree, adjustable, Includes: Ref. 20A

1шт.

20a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Stem fitting

1шт.

21

L100139

TEE

- hose, mounts in upper port of L59037 relief valve, Ref. 3 on Figure 5-152

1шт.

22

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

stem, straight 1/2" Hose X 3/8" NPTF Beaded

1шт.

23

H262048

HOSE ASSY.

HOSE - 39" (991 mm) long, steering supply, see Figure 8-282 Ref. 33 for tee

1шт.

24

L104449

LOCK VALVE

VALVE - check, steering, Includes: Ref. 25

1шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Check valve

1шт.

26

814-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 8.8

- hex head, 12 mm - 1.75 x 75 mm, plated

2шт.

27

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm, plated

2шт.

28

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, Ref 29 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

30

218-5585

TEE,37 Degree, 1 1/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

- adjustable, male, if used, Includes: Ref. 31

1шт.

31

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tee, if used

1шт.

32

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

COUPLING ASSEMBLY - quick disconnect, component parts not serviced separately, if used, Includes Ref. 33

1шт.

33

425-1120

NUT,1 1/4"-12, G5

- hex, 1-1/4" - NF, plated

1шт.

34

H434163

DUST CAP

CAP - dust, coupling, if used

1шт.
