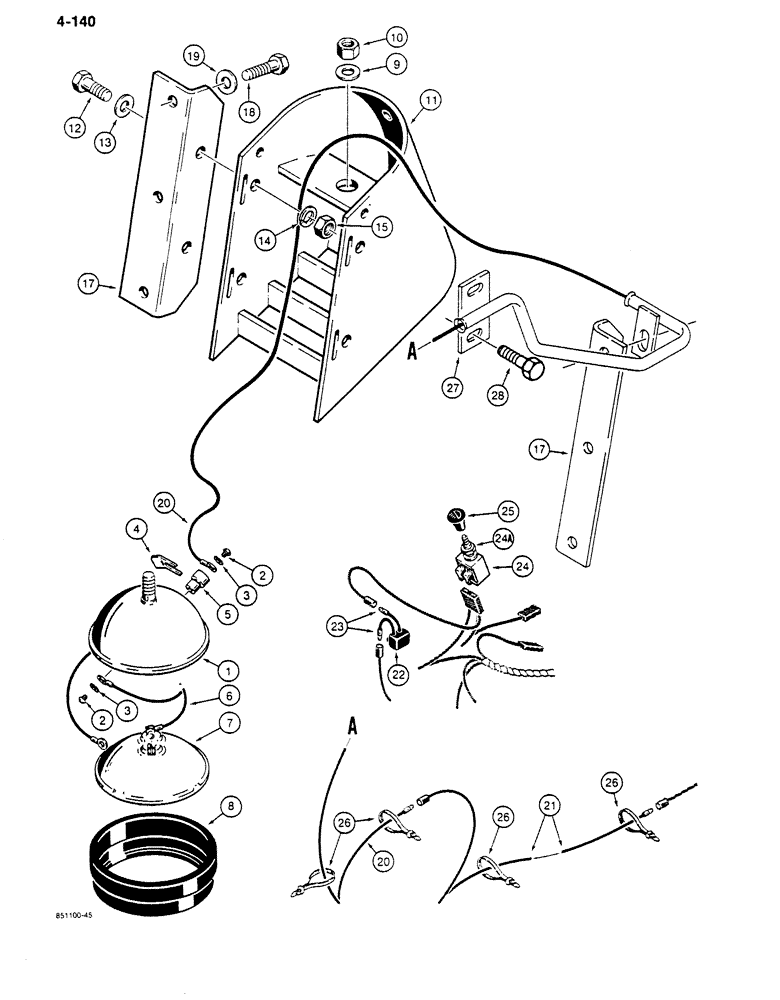

Запчасти Case 680K (4-140) - 24 VOLT DIPPER LAMP, USED WITH EXTENDABLE DIPPER (04) - ELECTRICAL SYSTEMS

L45149

HEADLIGHT

LAMP ASSEMBLY - dipper arm, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

2

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

- machine, round head slotted, No. 8 - 32 NC x 1/4", plated

2шт.

3

493-21017

LOCK WASHER,Int Tooth, #8

WASHER - internal tooth lock, No. 8, plated

2шт.

4

10927

SPRING

- lamp

1шт.

5

68417D

INSULATOR

- lamp

1шт.

6

A40033

ELECTRICAL WIRE

WIRE - lamp

1шт.

7

A25212

LAMP

BULB - sealed beam, 24 volt, No. 4589

1шт.

8

D31441

RETAINER

- lamp

1шт.

9

495-11053

WASHER,1/2", SAE

1шт.

10

230-4108

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

11

D41427

SHIELD

- dipper lamp

1шт.

12

354276X1

SCREW

BOLT - hex head, 1/2" -13 NC x 1-1/4", plated

4шт.

13

95-21056

WASHER,1/2"

- flat, , plated 1/2"

4шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

17

L101220

BRACKET

- dipper lamp mounting

2шт.

18

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

19

R24323

WASHER

- special

4шт.

20

L100002

ELECTRICAL WIRE

WIRE - lamp to switch wire

1шт.

21

L104338

ELECTRICAL WIRE

WIRE - dipper lamp

1шт.

22

H335976

CIRCUIT-BREAKER

BREAKER - circuit, 10 ampere

1шт.

23

L10051

TERMINAL CONNECTOR,Male

CONNECTOR - Male

2шт.

24

D74330

SWITCH

- dipper lamp, Includes: Ref. 24A

1шт.

24a

N7557

NUT

- SPECIAL, 3/8" - 24 NF, switch retaining

1шт.

25

D70448

KNOB

- dipper lamp

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

27

L109165

TUBE,11.27, 6.8" L

- lamp wire guard

1шт.

28

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", plated, replaces existing 1-1/4" bolt

2шт.
