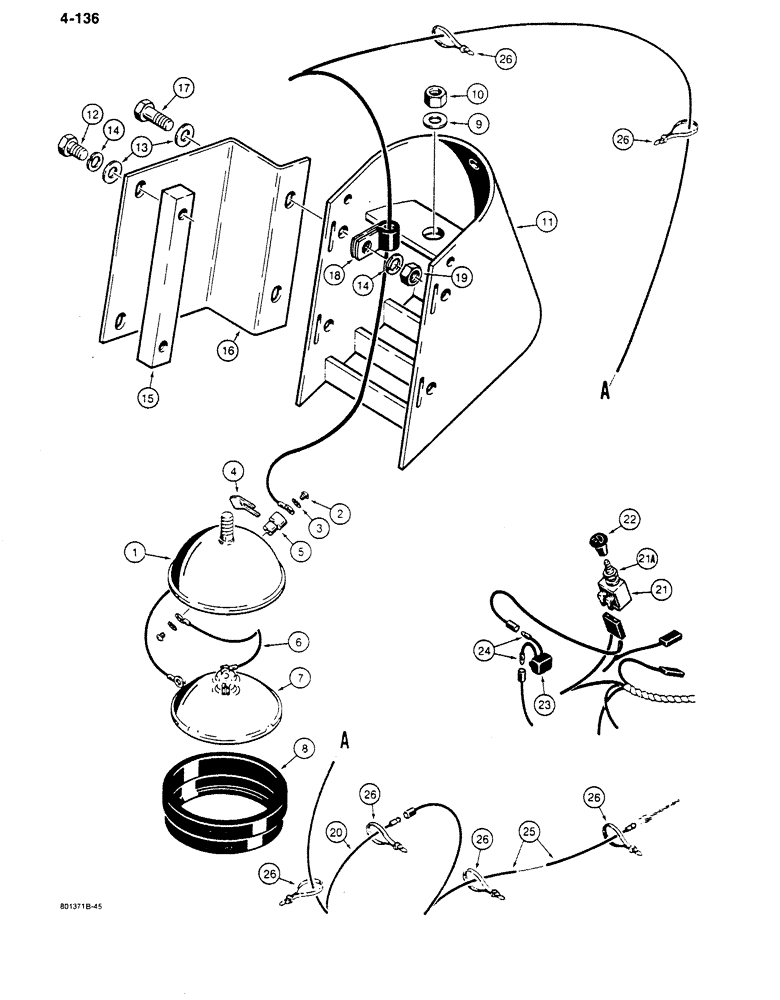

Запчасти Case 680K (4-136) - 24 VOLT DIPPER LAMP, USED WITH NON-EXTENDABLE DIPPER (04) - ELECTRICAL SYSTEMS

L45149

HEADLIGHT

LAMP ASSEMBLY - dipper arm, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

2

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

- machine, round head slotted, No. 8 - 32 NC x 1/4", plated

2шт.

3

493-21017

LOCK WASHER,Int Tooth, #8

WASHER - internal tooth lock, No. 8, plated

2шт.

4

10927

SPRING

- lamp

1шт.

5

68417D

INSULATOR

- lamp

1шт.

6

A40033

ELECTRICAL WIRE

WIRE - lamp

1шт.

7

A25212

LAMP

BULB - sealed beam, 24 volt, No. 4589

1шт.

8

D31441

RETAINER

- lamp

1шт.

9

495-11053

WASHER,1/2", SAE

1шт.

10

230-4108

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

11

D41427

SHIELD

- dipper lamp

1шт.

12

7771769

BOLT

- hex head, 1/2" - 13 NC x 3/4", plated

4шт.

13

95-21056

WASHER,1/2"

- flat, , plated 1/2"

8шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

15

L50502

BLOCK

- tapped, welded on

2шт.

16

L58510

PLATE ASSY.

PLATE - mounting, dipper lamp

2шт.

17

354276X1

SCREW

BOLT - hex head, 1/2" - 13 NC x 1-1/4", plated

4шт.

18

NLS

NO LONGER SERVICED

- wire

1шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

20

L79986

ELECTRICAL WIRE

WIRE - to dipper lamp, 209" (5308 mm) long

1шт.

21

D74330

SWITCH

- dipper lamp, Includes: Ref. 21A

1шт.

21a

N7557

NUT

- special, 3/8" - 24 NF, switch retaining

1шт.

22

D70448

KNOB

- dipper lamp

1шт.

23

H335976

CIRCUIT-BREAKER

BREAKER - circuit, 10 ampere

1шт.

24

L10051

TERMINAL CONNECTOR,Male

TERMINAL - bullet

2шт.

25

L104338

ELECTRICAL WIRE

WIRE - dipper lamp

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

14шт.
