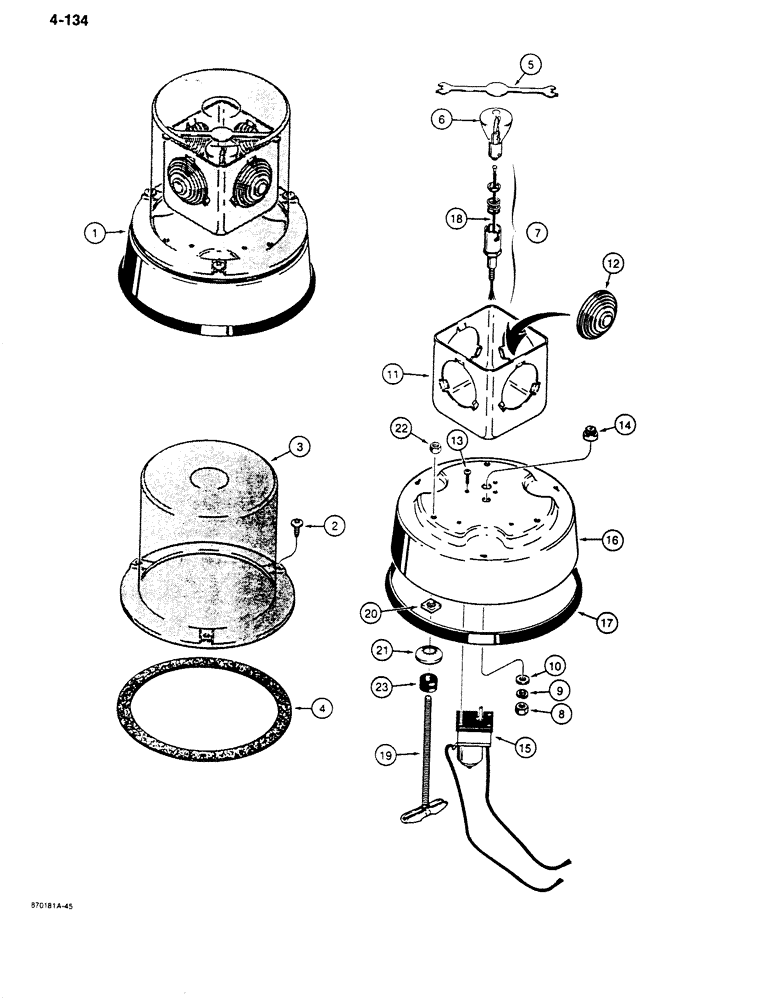

Запчасти Case 680K (4-134) - 12 VOLT ROTATING BEACON (04) - ELECTRICAL SYSTEMS

1

D137275

LIGHT, WARNING

BEACON ASSEMBLY - rotating, cab models, 360 degree, 12 volt, amber lens, Includes: Ref. 2 - 26

1шт.

2

187-39

SELF-TAP SCREW,Rd Hd, #12 x 5/8"

SCREW - round head, self-tapping, No. 12 x 5/8"

3шт.

3

N8426

LENS

DOME - rotating beacon

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET - dome

1шт.

5

NSS

NOT SOLD SEPARAT

STRAP - basket

1шт.

6

NLS

NO LONGER SERVICED

- 12 volt, No. 1195

1шт.

7

N8430

SOCKET

- beacon

1шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated

1шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

10

495-21038

WASHER,5/16"

1шт.

11

NSS

NOT SOLD SEPARAT

BASKET - less lenses

1шт.

12

N8423

GASKET

LENS - beacon

4шт.

13

182-47

SCREW,Sl Pan Hd, #6 - 32 x 5/8"

- machine, pan head slotted, No. 6 - 32 NC x 5/8"

3шт.

14

NSS

NOT SOLD SEPARAT

GEAR - beacon

1шт.

15

N14442

MOTOR

- beacon, 12 volt, includes connector which is not serviced separately

1шт.

16

NSS

NOT SOLD SEPARAT

BASE - beacon

1шт.

17

N8422

GASKET

- base

1шт.

18

NSS

NOT SOLD SEPARAT

WIRE - jumper, Serial Range: bulb-motor

1шт.

L35092

KIT

- mounting, includes instruction sheet, Includes: Ref. 19 - 26

1шт.

19

L35148

BOLT

- toggle, No. 10 - 24 NC x 4"

3шт.

20

129-47

NUT

- square, No. 10 - 24 NC, if used

3шт.

21

L35146

LOCK WASHER

WASHER - lock, No. 10

3шт.

22

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

3шт.

23

F13115

GROMMET

- rubber, mounting

3шт.

24

T29401

NUT

- twist-on, wire, not shown, not required

1шт.

25

A43211

GROMMET

- rubber, wire, if used, not shown

1шт.

26

L35145

HARNESS

WIRE - 8 foot block, not shown

1шт.
