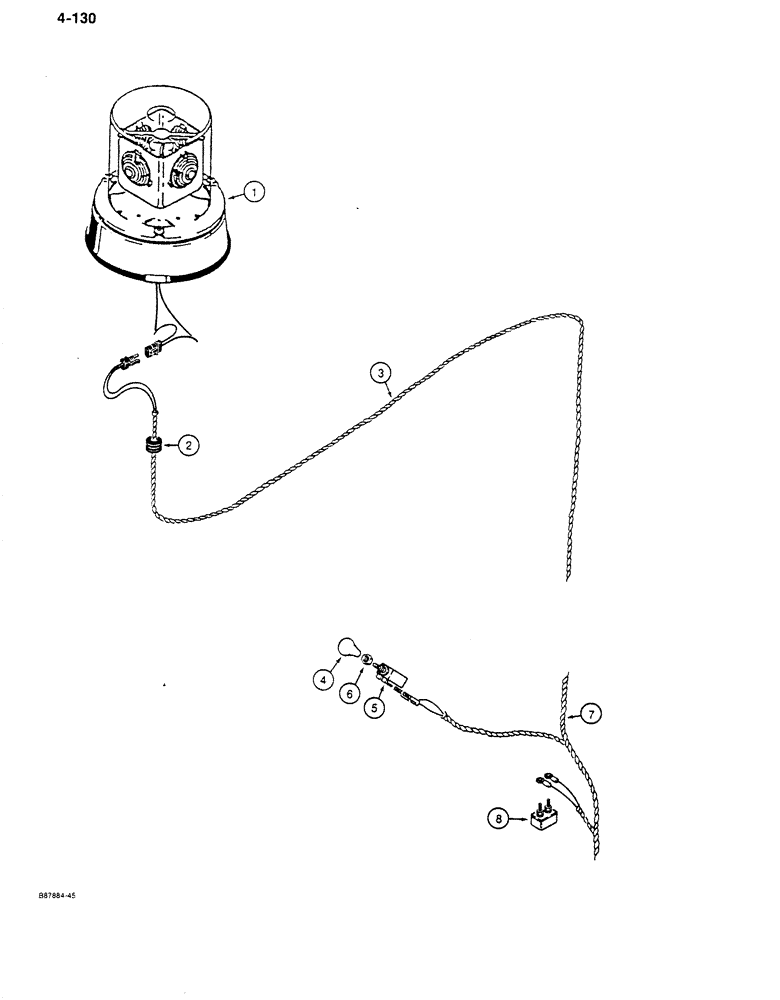

Запчасти Case 680K (4-130) - 12 VOLT ROTATING BEACON AND CIRCUIT, CAB OR CANOPY (04) - ELECTRICAL SYSTEMS

1

D137275

LIGHT, WARNING

BEACON ASSEMBLY - rotating, 12 volt, amber lens, parts list Figure 4-134

1шт.

2

248-2373

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

Wire 1/2" ID x 1 1/4" Groove Dia, Str Cut

1шт.

3

REF

INSTRUCTION

HARNESS - cab or canopy, see Figure 4-110 for canopy harness and Figure 4-114 or 9-484 for cab harness

1шт.

4

D92573

BUTTON

- switch

1шт.

5

D74330

SWITCH

- rotating beacon, Includes: Ref. 6

1шт.

6

N7557

NUT

- special, 3/8" -24 NF, switch retaining

1шт.

7

REF

INSTRUCTION

HARNESS - instrument, see Figure 4-100 for instrument panel harness

1шт.

8

D137004

BREAKER

- circuit, 10 amperes

1шт.
