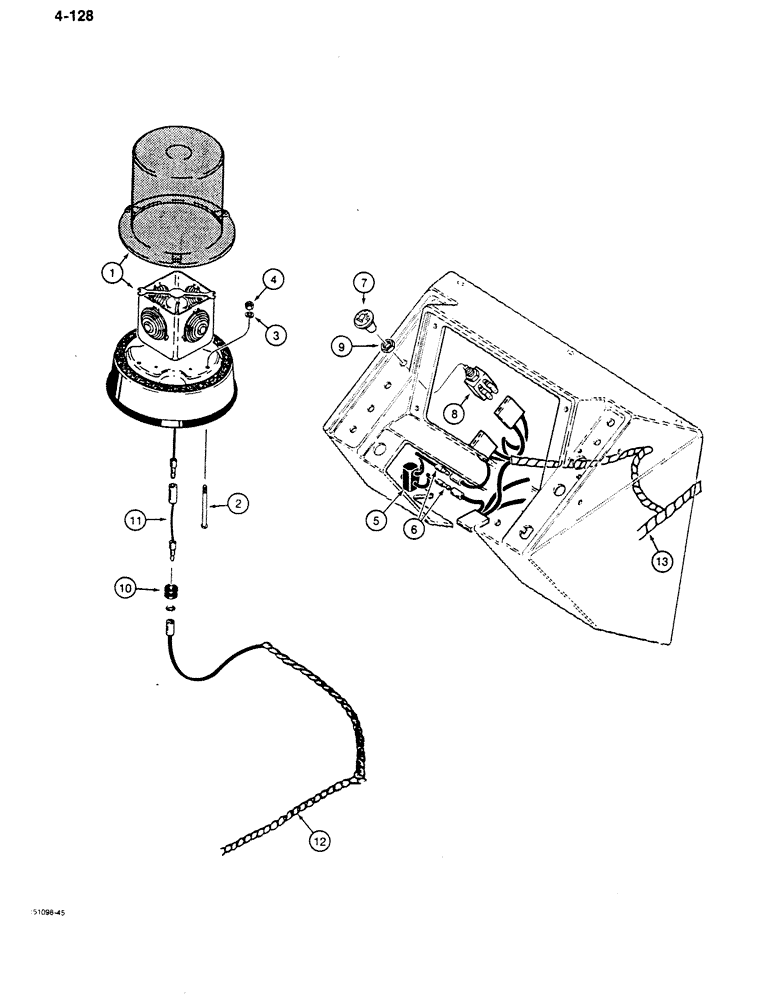

Запчасти Case 680K (4-128) - 24 VOLT ROTATING BEACON AND CIRCUIT, CAB OR CANOPY (04) - ELECTRICAL SYSTEMS

1

367751A1

BEACON ROTATING

BEACON ASSEMBLY - rotating, 24 volt, amber lens, parts list Figure 4-132

1шт.

2

169-111

SCREW,Sl Fil Hd, #10 - 24 x 3"

- machine, Fillister head, No. 10 - 24 NC x 3"

3шт.

3

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

4

225-14110

NUT,#10-24

3шт.

5

H335976

CIRCUIT-BREAKER

BREAKER - circuit, 10 ampere

1шт.

6

L10051

TERMINAL CONNECTOR,Male

CONNECTOR - , circuit breaker to harness Male

2шт.

7

D92573

BUTTON

- switch

1шт.

8

D74330

SWITCH

- rotating beacon, Includes: Ref. 9

1шт.

9

N7557

NUT

- special, 3/8" - 24 NF, switch retaining

1шт.

10

A23870

GROMMET

- wire

1шт.

11

D129852

ELECTRICAL WIRE

WIRE - jumper

1шт.

12

REF

INSTRUCTION

HARNESS - cab or canopy, see Figure 4-108 for canopy and Figure 4-112 for cab harness

1шт.

13

REF

INSTRUCTION

HARNESS - instrument, see Figure 4-98 for instrument panel harness

1шт.
