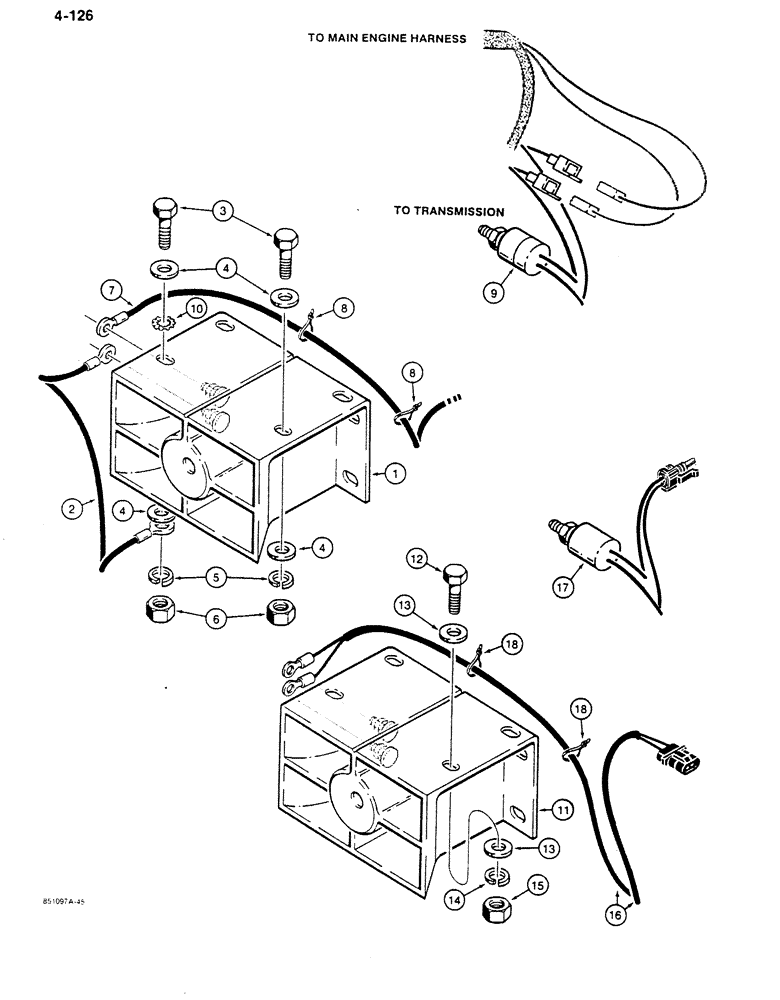

Запчасти Case 680K (4-126) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

D121972

ALARM

- backup, electric, rectangualar type, used on models with 24 volt electrical circuit

1шт.

2

L59563

ELECTRICAL WIRE

WIRE - ground, used on models with 24 volt electrical circuit

1шт.

3

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16" - 18 NC x 1", plated, used on models with 24 volt electrical circuit

4шт.

4

495-21038

WASHER,5/16"

Used on models with 24 volt electrical circuit 5/16"

8шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , used on models with 24 volt electrical circuit 5/16"

4шт.

6

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated, Used on models with 24 volt electrical circuit

4шт.

7

L104269

ELECTRICAL WIRE

WIRE - harness to backup alarm, used on models with 24 volt electrical circuit

1шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon, used on models with 24 volt electrical circuit

1шт.

9

L112588

SWITCH

- pressure, alarm, to transmission, used on models with 24 volt electrical circuit

1шт.

10

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, , Used on models with 24 volt electrical circuit Ext-Int Tooth, 5/16"

1шт.

11

D121972

ALARM

- backup, electric, rectangular type, used on models with 12 volt electrical circuit

1шт.

12

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16" - 18 NC x 1", plated, used on models with 12 volt electrical circuit

4шт.

13

495-21038

WASHER,5/16"

Used on models with 12 volt electrical circuit 5/16"

8шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , used on models with 12 volt electrical circuit 5/16"

4шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated, Used on models with 12 volt electrical circuit

4шт.

16

D137816

HARNESS

WIRE - harness to backup alarm, used on models with 12 volt electrical circuit

1шт.

17

D147334

IGNITION SWITCH

SWITCH - pressure, alarm, to transmission, used on models with 12 volt electrical circuit

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon, used on models with 12 volt electrical circuit

1шт.
