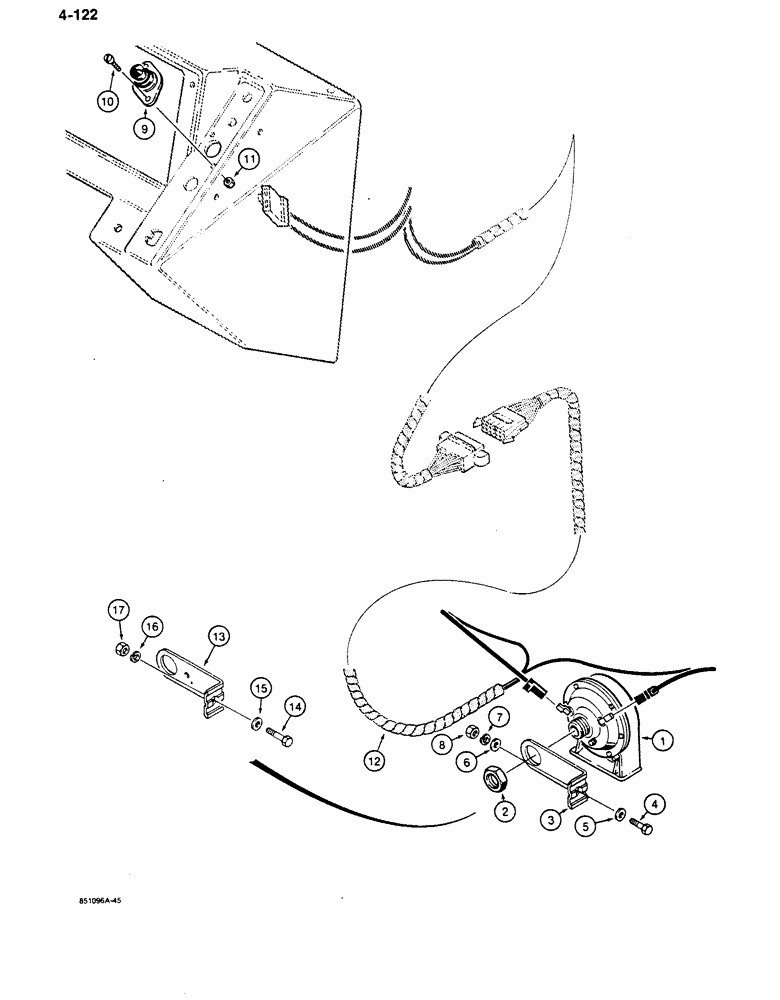

Запчасти Case 680K (4-122) - 24 VOLT HORN (04) - ELECTRICAL SYSTEMS

1

346582A1

KIT

HORN - 24 volt

1шт.

2

L30866

LOCK NUT

- horn mounting

1шт.

3

L73799

BRACKET

- horn mounting, uses existing 5/16" coolant recover bottle mounting hardware, if used

1шт.

4

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16" - 18 NC x 1-1/4", plated, if used

1шт.

5

495-11034

WASHER,5/16", SAE

flat, if used 5/16", SAE

1шт.

6

495-21038

WASHER,5/16"

If used 5/16"

1шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , if used 5/16"

1шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated, If used

1шт.

9

D67872

SWITCH

- push button, horn

1шт.

10

459-1108

SCREW,Slotted Pan Hd, #10-32 x 1/2"

- machine, pan head slotted, No. 10-32 NF x 1/2", plated

2шт.

11

193-1000

NUT,Keps, w/LW,#10-32

ASSEMBLY - includes lock washer, No. 10 - 32 NF, plated

2шт.

12

REF

INSTRUCTION

HARNESS - front, see Figures 4-88 through 4-92 for front harness and clamps

1шт.

13

D136410

BRACKET

- horn mounting, at heater hose P-clamp on chassis, uses 3/8" hardware, if used

1шт.

14

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", plated, if used

1шт.

15

495-21044

WASHER,3/8"

If used 3/8"

1шт.

16

492-11038

LOCK WASHER,3/8"

if used 3/8"

1шт.

17

425-106

NUT,3/8"-16, Cl 5

If used 3/8"-16, G5

1шт.
