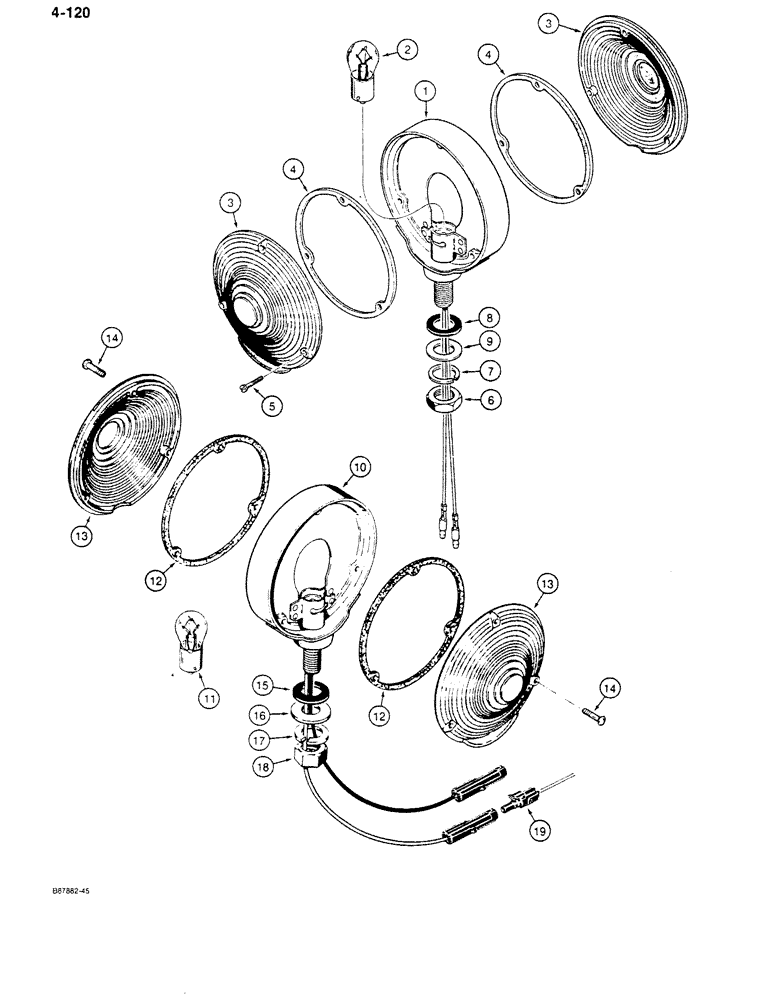

Запчасти Case 680K (4-120) - TRACTOR LAMPS, TURN SIGNAL AND FLASHER (04) - ELECTRICAL SYSTEMS

D126642

LAMP BASE

LAMP ASSEMBLY - turn signal and flasher, used on models with 24 volt electrical circuit, Includes: Ref. 1 - 9

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

2

A15084

LAMP

BULB - lamp, No. 1683

1шт.

L32214

LENS

KIT - lens replacement, Includes: Ref. 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

LENS - signal lamp

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET - lens

1шт.

5

459-11012

SCREW,Slotted Pan Hd, #10-32 x 3/4"

- machine, round head slotted, No. 6 - 32 NC x 5/8", plated

3шт.

6

704148

NUT

- hex, 1/2" - 20 NF, plated

1шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

8

L32256

WASHER

- rubber, special

1шт.

9

95-21056

WASHER,1/2"

- flat, , plated 1/2"

1шт.

197594A1

LAMP

ASSEMBLY - turn signal and flasher, used on models with 12 volt electrical circuit, Includes: Ref. 10 - 19

2шт.

10

NSS

NOT SOLD SEPARAT

BODY - signal and flasher lamp

1шт.

11

A41264

BULB,#1156, 12V

1шт.

L32214

LENS

KIT - lens replacement, Includes: Ref. 12 - 14

2шт.

12

NSS

NOT SOLD SEPARAT

GASKET - lens

1шт.

13

NSS

NOT SOLD SEPARAT

LENS - amber

1шт.

14

459-11012

SCREW,Slotted Pan Hd, #10-32 x 3/4"

- machine, round head slotted, No. 6 - 32 NC x 5/8", plated

3шт.

15

L32256

WASHER

BUSHING - rubber

1шт.

16

95-21056

WASHER,1/2"

- flat, , plated 1/2"

1шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

18

704148

NUT

- hex, 1/2" - 20 NF, plated

1шт.

19

NSS

NOT SOLD SEPARAT

CONNECTOR - body, connects to white ground wire

1шт.
