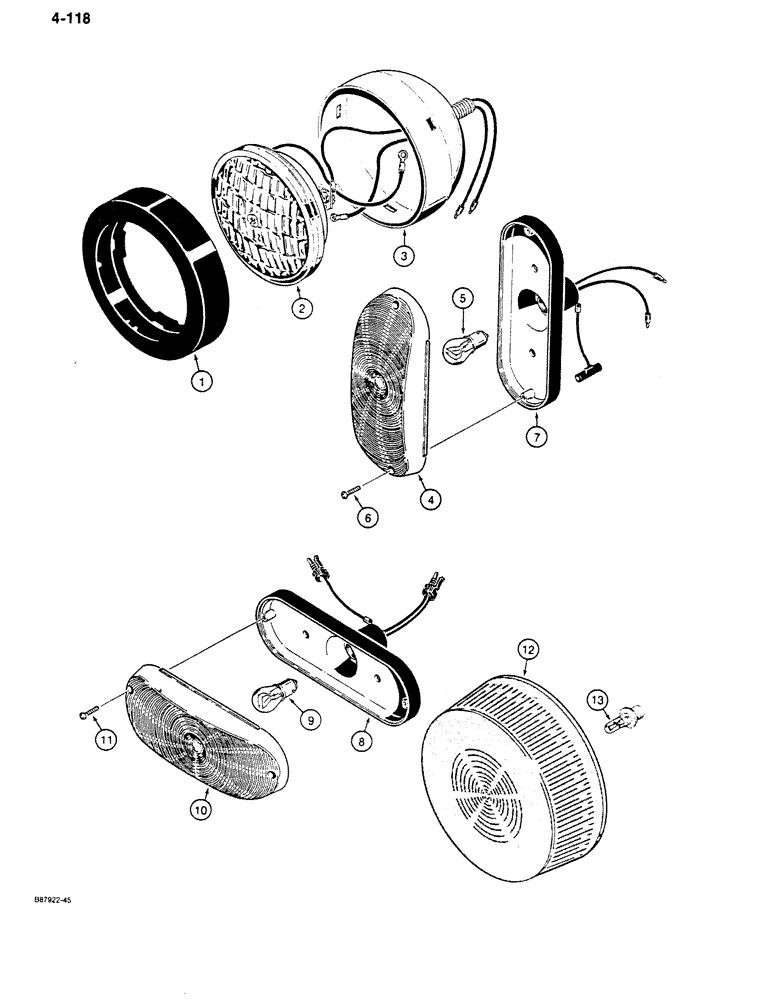

Запчасти Case 680K (4-118) - TRACTOR LAMPS, STOP AND TAIL LAMPS (04) - ELECTRICAL SYSTEMS

L104605

LAMP

ASSEMBLY - stop and tail, used on canopy models without flasher, if used, used on models with 24 volt electrical circuit, Includes: Ref. 1 - 3

1шт.

1

A25213

RETAINER

- lamp

1шт.

2

N7125

LAMP

BULB - lamp, No. 4237

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

D126641

LAMP

ASSEMBLY - stop and tail, used on cab or canopy models, used on models with 24 volt electrical circuit, Includes: Ref. 4 - 7

2шт.

4

N6836

LENS

- lamp

1шт.

5

L33194

BULB

- lamp, No. 1662

1шт.

6

261-14310

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

SCREW - round head, self-tapping, No.6 - 32 NC x 5/8", plated

2шт.

7

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

D137293

LAMP

ASSEMBLY - stop and tail, used on cab or canopy models, used on models with 12 volt electrical circuit, Includes: Ref. 8 - 11

2шт.

8

NSS

NOT SOLD SEPARAT

BODY - lamp, complete

1шт.

9

T34857

BULB,C6, #1157, 12.8V

- No. 1157, stop and tail

1шт.

10

N6836

LENS

- red, lamp

1шт.

11

261-14310

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

SCREW - round head, self-tapping, No. 6 - 32 NC x 5/8", plated

2шт.

A187704

LAMP

ASSEMBLY - tail, used on canopy models without flashers, if used, used on models with 12 volt electrical circuit, Includes: Ref. 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

LENS - includes body, lamp, complete

1шт.

13

D71346

TAIL LAMP,12V

BULB - No. 168, lamp

1шт.
