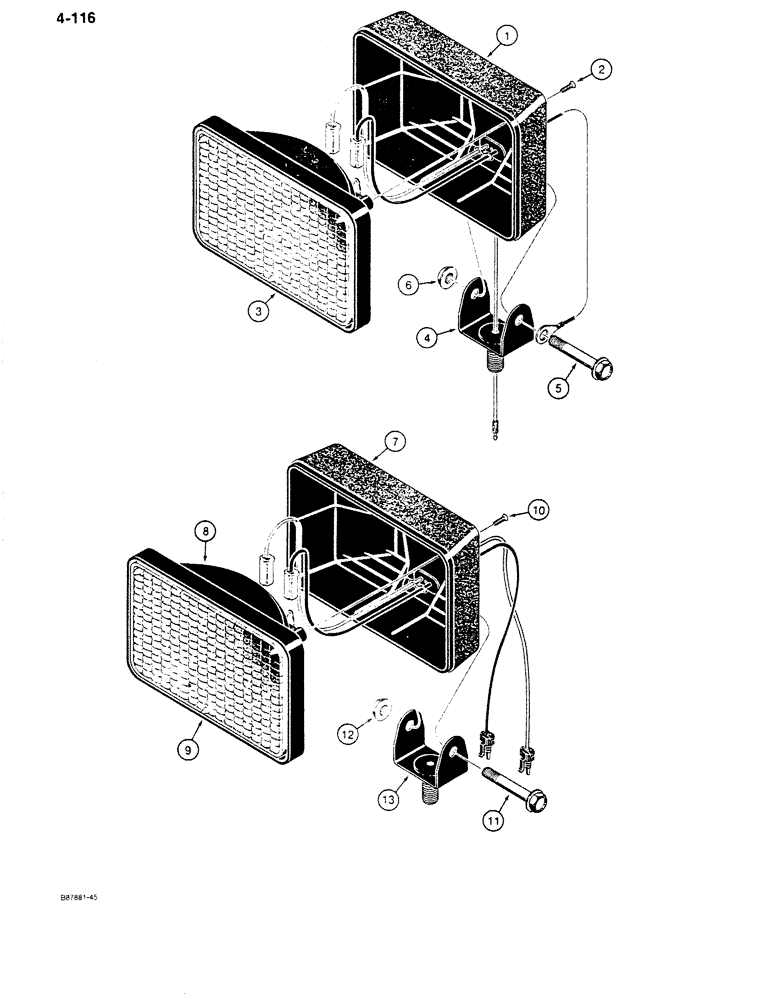

Запчасти Case 680K (4-116) - TRACTOR LAMPS (HALOGEN), FRONT DRIVING AND REAR FLOOD LAMPS, USED ON MODELS W/ CAB OR CANOPY (04) - ELECTRICAL SYSTEMS

F96875

LAMP BASE

LAMP ASSEMBLY - front driving, cab models only, without bracket (Ref. 4), for service order F96876 lamp and remove item 4 bracket, used on models with 24 volt electrical circuit, Includes: Ref. 1 - 6

2шт.

F96876

LAMP

ASSEMBLY - front driving and rear flood, with bracket (Ref. 4) used on models with 24 volt electrical circuit, Includes: Ref. 1 - 6

3-4шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - lamp

1шт.

2

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - pan head, self-tapping, No. 8 -18 NC x 1/2"

2шт.

3

103653A1

HEADLIGHT,24V, 60W

BULB - sealed beam

1шт.

4

N8347

SUPPORT

BRACKET - lamp, used with rear flood lamps

1шт.

5

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

6

232-5345

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, Flg, 5/16"-18

1шт.

ZAA7189850

HEADLIGHT

LAMP ASSEMBLY - front driving and rear flood, on cab models Ref. 13 bracket is not used on front lamps, used on models with 12 volt electrical circuit, Includes: Ref. 7 - 13

3-4шт.

7

NSS

NOT SOLD SEPARAT

SHELL - lamp

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - shell

1шт.

9

N13100

LAMP

BULB - halogen

1шт.

10

273-5048

SELF-TAP SCREW,Slotted Flat Hd, #8 x 1/2"

SCREW - pan head, self-tapping, No. 8 x 1/2"

2шт.

11

121-232

SERRATED BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

12

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16" - 18 NC, plated

1шт.

13

N8347

SUPPORT

BRACKET - lamp

1шт.
