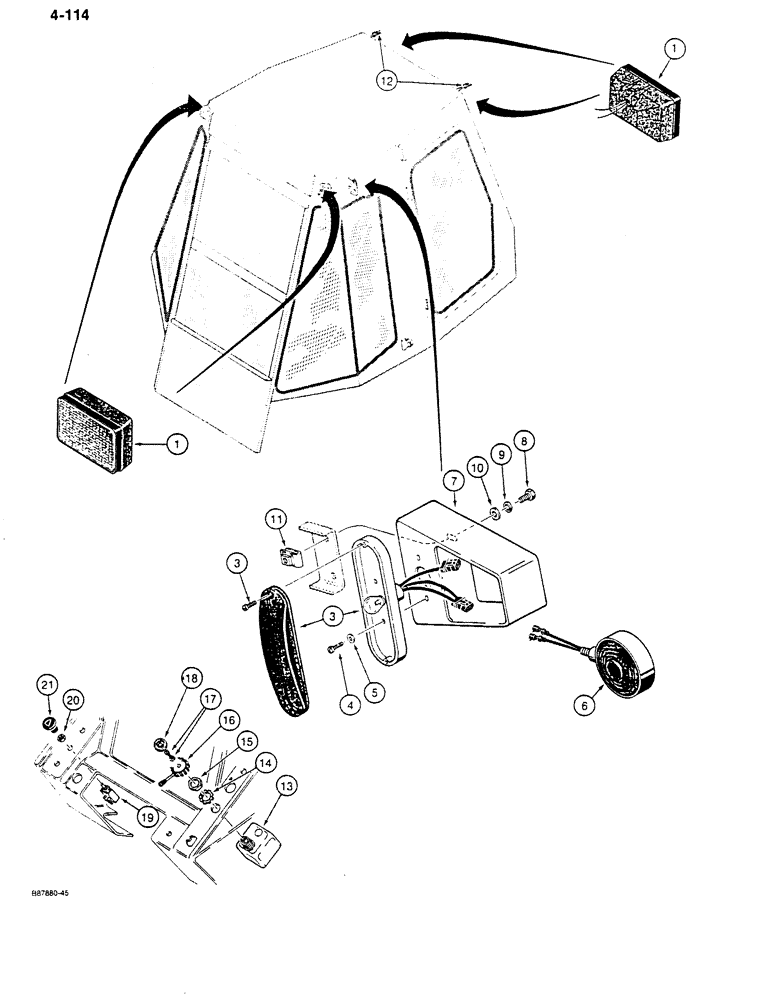

Запчасти Case 680K (4-114) - 12 VOLT TRACTOR LAMP ELECTRICAL CIRCUIT, WITH CAB (04) - ELECTRICAL SYSTEMS

1

ZAA7189850

HEADLIGHT

LAMP ASSEMBLY - front driving and rear flood, halogen, front driving used without hinge bracket, parts list Figure 4-116, for lamp mounting see Figure 9-466, for cab harness see Figure 9-484

4шт.

3

D137293

LAMP

ASSEMBLY - stop and tail, parts list Figure 4-118

2шт.

4

187-1917

SELF-TAP SCREW,Pan Hd, #8-16 x 5/8"

SCREW - pan head, self-tapping, No. 8 x 5/8", plated

4шт.

5

280299

WASHER,0.19" ID x 0.44" OD x 0.05" Thk

4шт.

6

197594A1

LAMP

ASSEMBLY - flasher and turn signal, parts list Figure 4-120

2шт.

7

D120124

BRACKET

- side lamps

2шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16" - 18 NC x 1", plated

4шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

495-21038

WASHER,5/16"

4шт.

11

131-636

SPRING NUT,J, Ret, 5/16"-18

- J-type, 5/16" - 18 NC

4шт.

12

D137814

HARNESS

- cab, see Figure 9-484 for cab harness and control panel

1шт.

13

1987422C1

SWITCH

- turn signal

1шт.

14

493-41078

LOCK WASHER,Ext Tooth, 3/4"

WASHER - external tooth lock, 3/4", plated

1шт.

15

D91352

JAM NUT

- special

1шт.

16

A177140

KNOB

- turn signal switch

1шт.

17

193-556

SCREW,SEMS, Pan Hd, #5-40 x 1/2"

ASSEMBLY - includes lock washer, No. 5-40 NC x 1/2", black

1шт.

18

A160035

PLATE

- knob, turn signal switch insert

1шт.

19

D74330

SWITCH

- flasher, see Figure 4-100 for front and rear lamp switches

1шт.

20

N7557

NUT

- special, 38" - 24 NF, switch retaining

1шт.

21

D88134

KNOB

- flasher switch

1шт.
