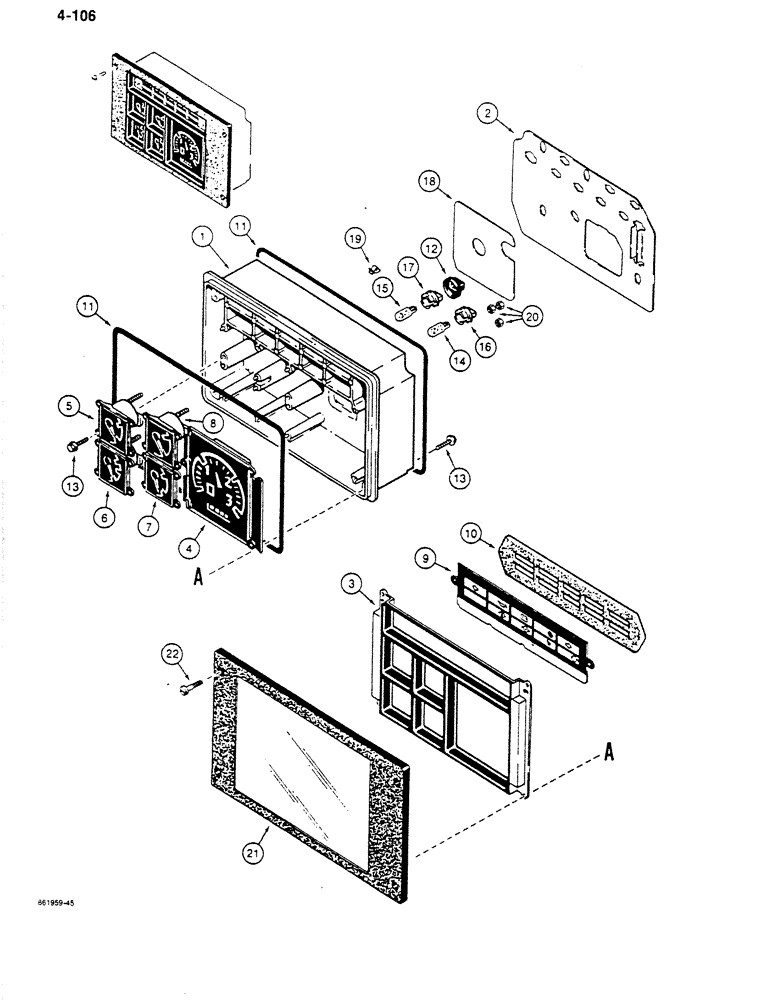

Запчасти Case 680K (4-106) - INSTRUMENT CLUSTER, USED ON MODELS WITH 12 VOLT ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

D136683

CLUSTER

ASSEMBLY - instrument, 12 volt electrical, Includes: Ref. 1 - 21

1шт.

1

N13545

INSTRUMENT PANEL

- instrument cluster

1шт.

2

H422774

BOARD, PRINTED CIRCU

BOARD - circuit, printed, instrument cluster, not shown

1шт.

3

N14227

COVER

- instrument cluster

1шт.

4

N13543

TACHOMETER

GAUGE - tachometer, includes hourmeter

1шт.

5

N13542

GAUGE

- water temperature

1шт.

6

D71338

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

7

N14633

GAUGE

- air pressure

1шт.

8

N13546

GAUGE

- oil temperature

1шт.

9

D146335

BAND

LENS - identification, warning lamps

1шт.

10

K262040

GASKET

- lens

1шт.

11

K965954

GASKET,4.45mm Thk x 249.68mm ID

- instrument cluster

2шт.

12

K965958

BOOT

- rubber

3шт.

13

A45093

SCREW,Hex Slotted, 12.70"

- special

12шт.

14

D71346

TAIL LAMP,12V

BULB - warning, No. 168

8шт.

15

3221006R1

BULB,W10/3, 12V, 3W

- illumination, No. 194

3шт.

16

N8481

HOLDER

SOCKET - lamp

8шт.

17

A47125

PEDESTAL

SOCKET - lamp, green

3шт.

18

H422758

GASKET,1.52mm Thk

- housing

1шт.

19

H422766

CLIP, SPRING

CLIP - gauges

12шт.

20

225-14106

NUT,#6-32

3шт.

21

N14225

SHIELD

- instrument cluster

1шт.

22

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 - 24 NC x 1/2", plated

4шт.
