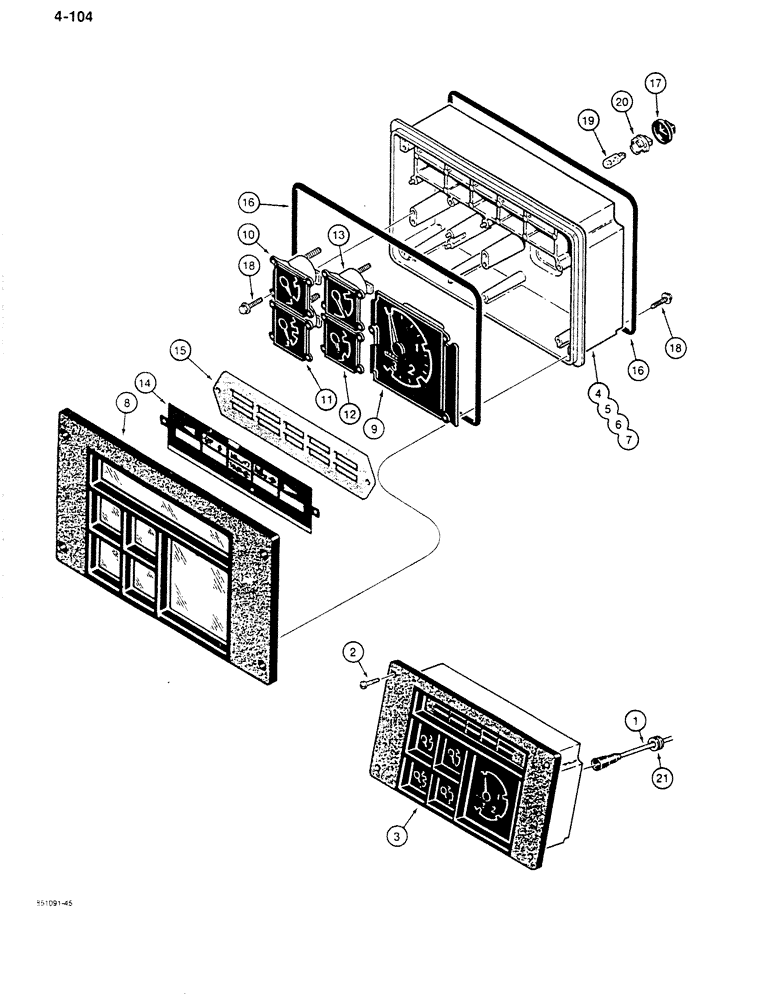

Запчасти Case 680K (4-104) - INSTRUMENT CLUSTER, USED ON MODELS WITH 24 VOLT ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

1

L111569

CABLE

- tachometer flex drive

1шт.

2

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 - 24 NC x 1/2", plated

4шт.

3

L60702

COIL

CLUSTER ASSEMBLY - instrument, 24 volt electrical, Includes: D71335 and Ref. 4 - 20

1шт.

D71335

CASE ASSY.

CASE ASSEMBLY - instrument cluster, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

CASE - instrument cluster

1шт.

5

H422774

BOARD, PRINTED CIRCU

BOARD - circuit, printed, instrument cluster

1шт.

6

NSS

NOT SOLD SEPARAT

CLIP - gauges

12шт.

7

NSS

NOT SOLD SEPARAT

GASKET - case

1шт.

8

A45007

LENS

COVER - instrument cluster

1шт.

9

N6805

TACHOMETER

GAUGE - tachometer, includes hourmeter

1шт.

10

N7179

ELECTRICAL GAUGE

GAUGE - water temperature

1шт.

11

N7180

FUEL GAUGE

GAUGE - fuel level

1шт.

12

N7181

ELECTRICAL GAUGE

GAUGE - air pressure

1шт.

13

N7182

ELECTRICAL GAUGE

GAUGE - oil temperature

1шт.

14

N6809

INDICATOR

LENS - identification, warning lamps

1шт.

15

K262040

GASKET

- lens

1шт.

16

K965954

GASKET,4.45mm Thk x 249.68mm ID

- instrument cluster

2шт.

17

K965958

BOOT

- lamp socket, rubber

3шт.

18

A45093

SCREW,Hex Slotted, 12.70"

- special

12шт.

19

N8330

LAMP

- illumination

11шт.

20

N8481

HOLDER

SOCKET - lamp

11шт.

21

248-21110

GROMMET,1" ID x 1 3/8" Groove Dia

- tach cable

1шт.
