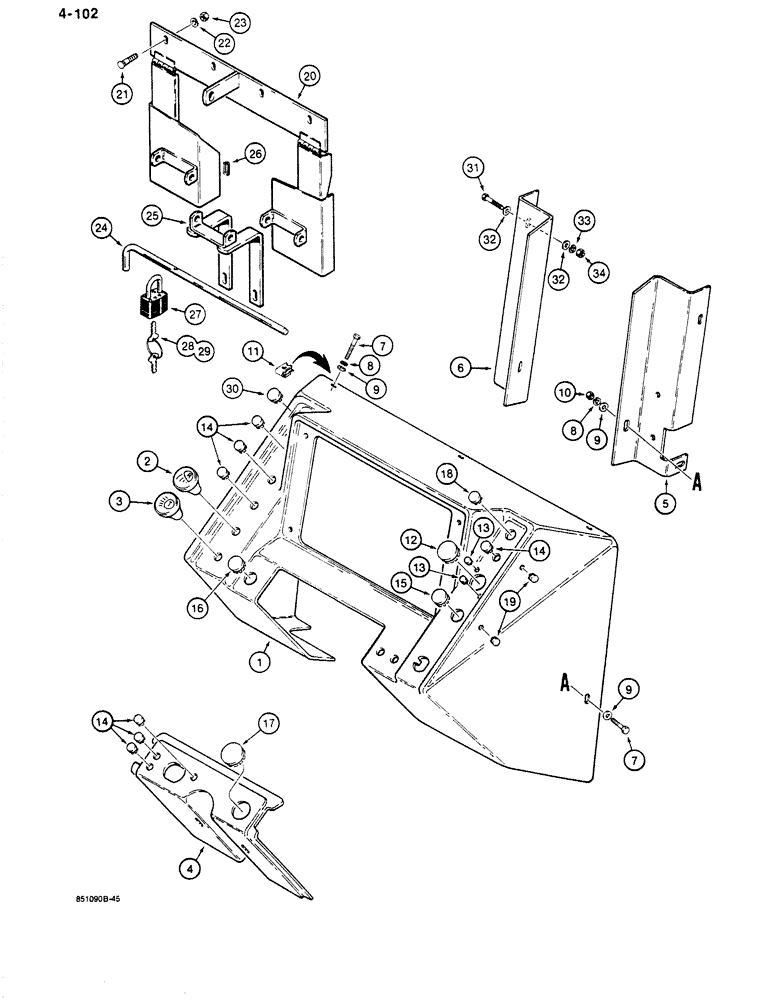

Запчасти Case 680K (4-102) - INSTRUMENT PANEL AND COVERS (04) - ELECTRICAL SYSTEMS

1

D123199

PANEL

- instrument, tractor

1шт.

2

D70448

KNOB

- switch, flood lamp

1шт.

3

D70446

KNOB

- switch, lamp

1шт.

4

D123198

PANEL, INSTRUMENTS

BRACKET - instrument panel

1шт.

5

D143750

BRACKET

- instrument panel mounting, right-hand

1шт.

6

L108800

BRACKET

- instrument panel mounting, left-hand

1шт.

7

353669X1

SCREW

BOLT - hex head, 1/4" - 20 NC x 1", plated

5шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

9

95-21031

WASHER,1/4"

- flat, , plated 1/4"

7шт.

10

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4" - 20 NC, plated

2шт.

11

131-630

SPRING NUT,Tinn, U, 1/4"-20

- U-type, 1/4" - 20 NC

3шт.

12

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

13

353-400

PLUG,Dome, .250" hole, Nylon

2шт.

14

60-4258T1

PLUG

- nylon, 3/8"

7шт.

15

472429C1

PLUG

Nylon, 3/4"

1шт.

16

353-407

PLUG,Dome, .687" hole, Nylon

- nylon, 11/16"

1шт.

17

353-412

PLUG,Dome, 1.093" hole, Nylon

- nylon, 1-3/32"

1шт.

18

353-403

PLUG,Dome, .437" hole, Nylon

1шт.

19

60-4582T1

PLUG

- nylon, 5/16", both sides

4шт.

20

L1036333

COVER - instrument panel, anti-vandalism, if used

1шт.

21

411-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT - carriage, 5/16" - 18 NC x 3/4", plated

4шт.

22

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

23

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated

4шт.

24

L106334

HANDLE

- instrument panel cover, anti-vandalism

1шт.

25

L106905

BRACKET

- instrument panel cover lock, uses existing steering column clamp and hardware

1шт.

26

REF

INSTRUCTION

TRIM - edge, 2-1/4" (57 mm) long, cut to required length from D52812, see below

2шт.

27

R29556

LOCK

PADLOCK - includes keys, Includes: Ref. 28, 29

1шт.

28

D93753

PADLOCK

KEY - for Master padlock only

2шт.

29

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

30

353-404

PLUG,Dome, .500" hole, Nylon

Used on models with 12 volt electrical circuit only Dome, .500" hole, Nylon

1шт.

31

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", plated

4шт.

32

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 3/8", hardened, plated

8шт.

33

492-11038

LOCK WASHER,3/8"

4шт.

34

425-106

NUT,3/8"-16, Cl 5

4шт.

D52812

RUBBER STRIP

TRIM - edge, 83" (2108 mm) long, bulk

1шт.
