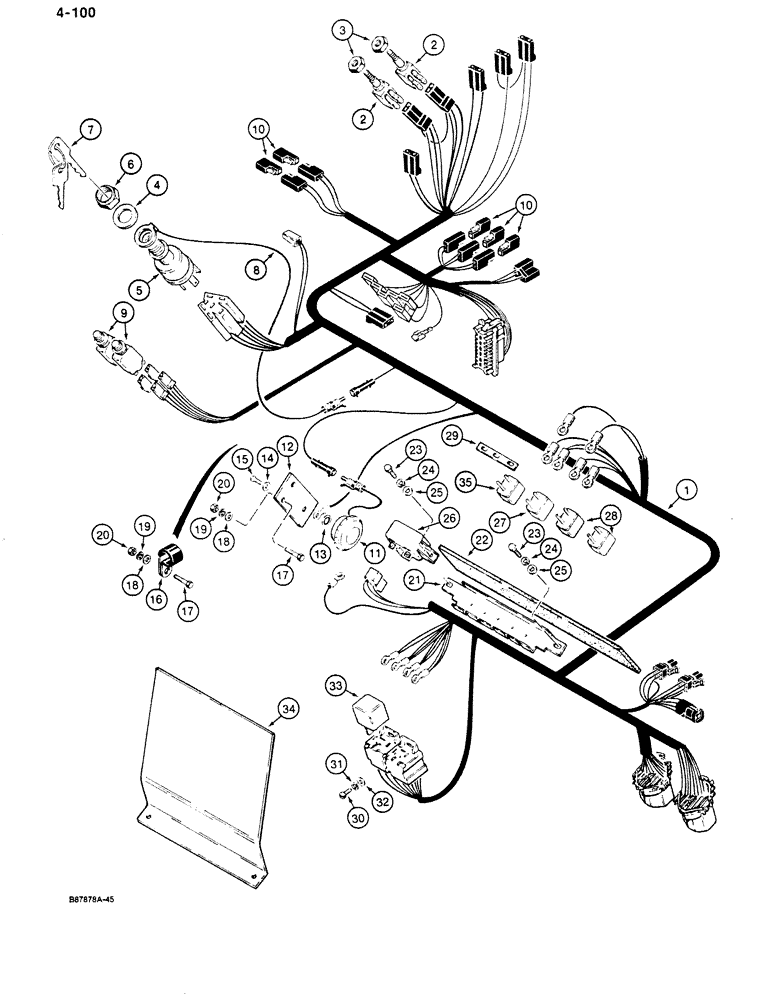

Запчасти Case 680K (4-100) - 12 VOLT ELECTRICAL CIRCUIT, INSTRUMENT HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

D137811

HARNESS

- instrument

1шт.

2

D74330

SWITCH

- lamp, Includes: Ref. 3

2шт.

3

N7557

NUT

- special, 3/8" - 24 NF, switch retaining

1шт.

4

L31557

WASHER

- special, if used

1шт.

307871A1

CONNECTION,ELECTRIC

SWITCH ASSEMBLY - includes keys, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

SWITCH - without keys

1шт.

6

A77314

NUT

- key switch mounting

1шт.

7

307852A1

SET OF 2 KEYS

Metal Without Padding

1шт.

8

D137820

HARNESS

WIRE - ignition, Serial Range: switch-ground

1шт.

9

D141170

BREAKER

- circuit, 12 ampere

2шт.

10

L71879

DIODE ELEMENT,400V, 3A

DIODE - isolation

5шт.

11

D137308

ALARM

- warning, buzzer

1шт.

12

L105849

BRACKET

- insulating

1шт.

13

493-21017

LOCK WASHER,Int Tooth, #8

WASHER - internal tooth lock, No. 8, plated

1шт.

14

280299

WASHER,0.19" ID x 0.44" OD x 0.05" Thk

1шт.

15

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- machine, pan head slotted, No. 8 - 32 NC x 1/2", plated

1шт.

16

515-23254

CLAMP,1", Insul, 3/8" Bolt

Harness 1", Insul, 3/8" Bolt

1шт.

17

353669X1

SCREW

BOLT - hex head, 1/4" - 20 NC x 1", plated

3шт.

18

95-21031

WASHER,1/4"

- flat, , plated 1/4"

3шт.

19

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

20

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4" - 20 NC, plated

3шт.

21

D75355

BRACKET

- circuit breaker mounting

1шт.

22

K303176

FOAM

STRIP - 1-29/32" (49 mm) wide x 14-23/32" (374 mm) long x 5/32" (4 mm) thick, foam, adhesive back

1шт.

23

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/4" - 20 NC x 3/4", plated

3шт.

24

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

25

95-21031

WASHER,1/4"

- flat, , plated 1/4"

3шт.

26

1546541C1

RELAY

- starter

1шт.

27

D137003

BREAKER

- circuit, 20 amperes

1шт.

28

D137002

BREAKER

- circuit, 30 amperes

2шт.

29

D137652

BAR

PLATE - circuit breaker bar

1шт.

30

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 -24 NC x 1/2", plated

2шт.

31

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

32

495-81252

WASHER,#12

(Flat, 1/4" x 9/16" x 1/16"), plated #12

2шт.

33

314451A1

RELAY

- 30 amperes, cab and main

2шт.

D128310 relay is marked 40 amp on the relay. This is the resistance rating. The inductive rating is 30 amps. We use this inductive rating in our literature.

1шт.

34

D138725

GUARD

PLATE - harness guard

1шт.

35

D137004

BREAKER

- circuit, 15 amperes

1шт.
