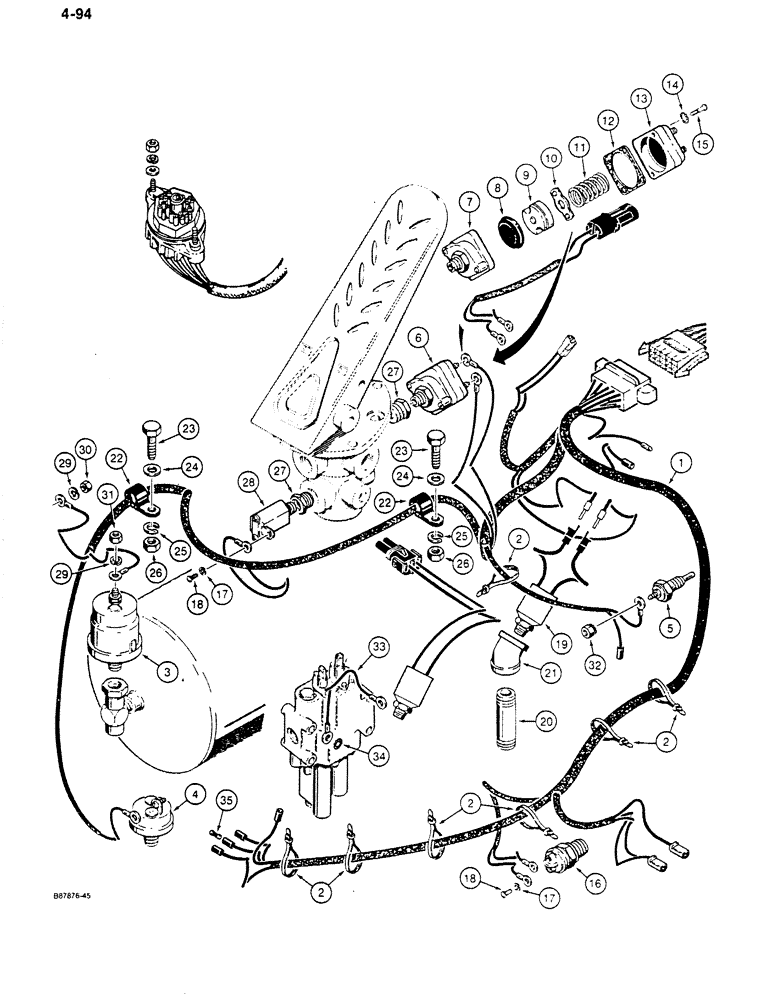

Запчасти Case 680K (4-094) - ELECTRICAL CIRCUIT, REAR HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

D129700

HARNESS

- rear, used on models with 24 volt electrical circuit

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

L109945

TRANSMITTER

SENDER - air pressure

1шт.

4

D65457

SWITCH

- air parking brake

1шт.

5

L104249

SWITCH

SENDER - converter oil temperature, used on models with 24 volt electrical circuit

1шт.

6

L47989

SWITCH

- stop lamp, Includes: Ref. 7 - 15

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - switch

1шт.

8

L33201

DIAPHRAGM

- piston

1шт.

9

L33202

PISTON

- switch

1шт.

10

L33203

TERMINAL STRIP

STRIP - contact

1шт.

11

L33204

SPRING

- piston return

1шт.

12

L33205

GASKET

- cover

1шт.

13

L33206

COVER

- switch

1шт.

14

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

15

70-11012

SCREW,Slotted Pan Hd, #10-24 x 3/4"

- machine, pan head slotted, No. 10 - 24 NC x 3/4"

2шт.

16

E114399

SWITCH

- neutral start

1шт.

17

492-11008

LOCK WASHER,#8

Washer, Lock, #8

3шт.

18

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

3шт.

19

L109377

SWITCH

- clutch pressure, used on models with 24 volt electrical circuit

1шт.

20

221-1138

PIPE,Nipple, 1/4" NPT x 2 1/2"

NIPPLE - 1/4"NPT x 2-1/2", clutch pressure switch

1шт.

21

221-1366

ELBOW

- 45 degree, 1/4" NPT

1шт.

22

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- 5/16", harness, if used

2шт.

23

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", plated, if used

2шт.

24

495-21044

WASHER,3/8"

If used 3/8"

2шт.

25

492-11038

LOCK WASHER,3/8"

if used 3/8"

2шт.

26

425-106

NUT,3/8"-16, Cl 5

If used 3/8"-16, G5

2шт.

27

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

- 1/2" x 1/4" NPT

2шт.

28

L70507

SWITCH

- low air pressure

1шт.

29

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

30

225-14110

NUT,#10-24

1шт.

31

225-14210

NUT,#10-32

1шт.

32

193-1000

NUT,Keps, w/LW,#10-32

ASSEMBLY - includes lock washer, No. 10 - 32 NF, plated, oil temperature sender

1шт.

33

L108391

ELECTRICAL WIRE

WIRE - ground, loader control valve, uses valve mounting bolt, used on models with 24 volt electrical circuit

1шт.

34

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - internal-external tooth lock, 1/2", plated

1шт.

35

223-38

FUSE,3 Amp, Type 3AG

- 3 amperes, 3 AG, hydraulic boom lock, used on models with 24 volt electrical circuit

1шт.
