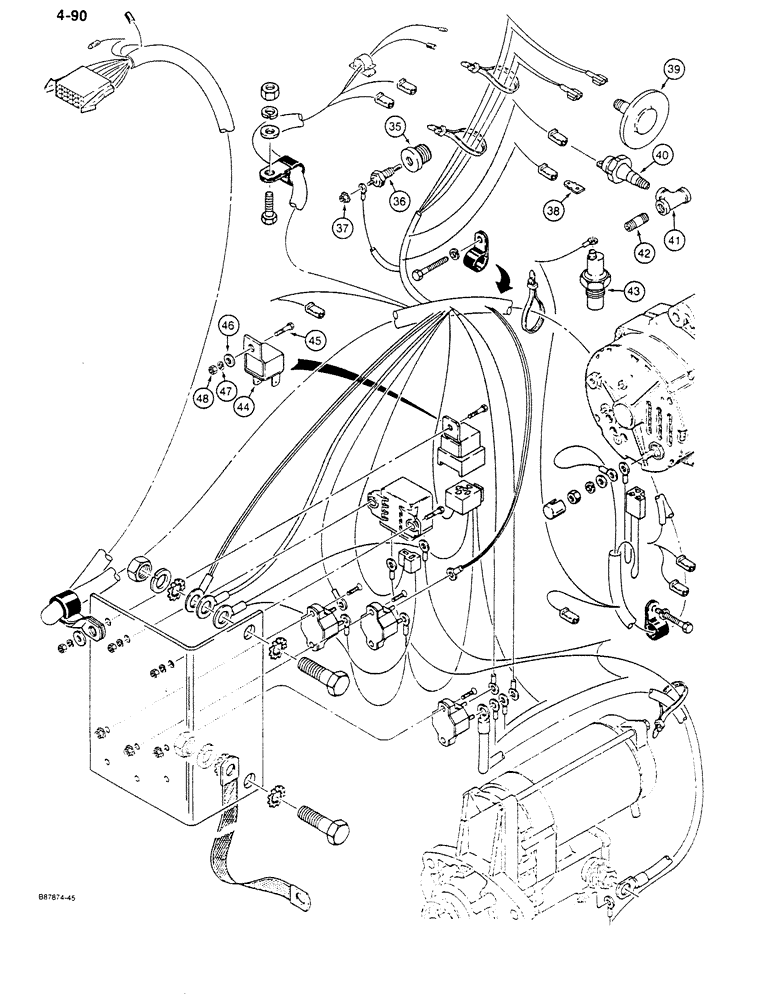

Запчасти Case 680K (4-090) - 24 VOLT ELECTRICAL CIRCUIT, FRONT HARNESS AND CONNECTIONS (CONTD) (04) - ELECTRICAL SYSTEMS

35

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

- 3/4" x 1/2" NPT, water temperature sender

1шт.

36

L104249

SWITCH

SENDER - water temperature

1шт.

37

193-1000

NUT,Keps, w/LW,#10-32

ASSEMBLY - includes lock washer, No. 10 - 32 NF, plated

1шт.

38

D131876

TERMINAL STRIP

TERMINAL - straight tab, at fuel shutoff solenoid, included on engine

1шт.

39

REF

INSTRUCTION

SENDER - air cleaner restriction indicator, see Figure 2-16 for air cleaner and connecting parts

1шт.

40

D63294

PRESSURE SWITCH

SENDER - oil pressure

1шт.

41

221-1421

TEE,Pipe, 1/8" NPT

- 1/8" NPT

1шт.

42

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE - 1/8" NPT x 1"

1шт.

43

L107257

SWITCH

SENDER - temperature

1шт.

44

198162A1

RELAY

- cab, used with Ref. 45 - 48

1шт.

45

70-11012

SCREW,Slotted Pan Hd, #10-24 x 3/4"

- machine, pan head slotted, No. 10 - 24 NC x 3/4"

1шт.

46

495-31025

WASHER,3/16"

-flat, 3/16"

1шт.

47

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

48

225-14110

NUT,#10-24

1шт.

D137516

ELECTRICAL WIRE

KIT - harness, includes instruction sheet, Includes: Ref. 49 - 52

1шт.

49

D137515

HARNESS

- front, used with Bosch or Delco-Remy alternator, not shown

1шт.

50

D136499

ELECTRICAL WIRE

WIRE - jumper, used on models with Delco-Remy alternator only, not shown

1шт.

51

245428C1

CONNECTOR,ELECTRIC

CONNECTOR - harness to alternator, used with Ref. 50 wire on models with Delco-Remy alternator only, not shown

1шт.

52

877291R1

ELEC CONNECTOR,Female

CONNECTOR - harness to alternator, used on models with Bosch alternator only, not shown

1шт.
