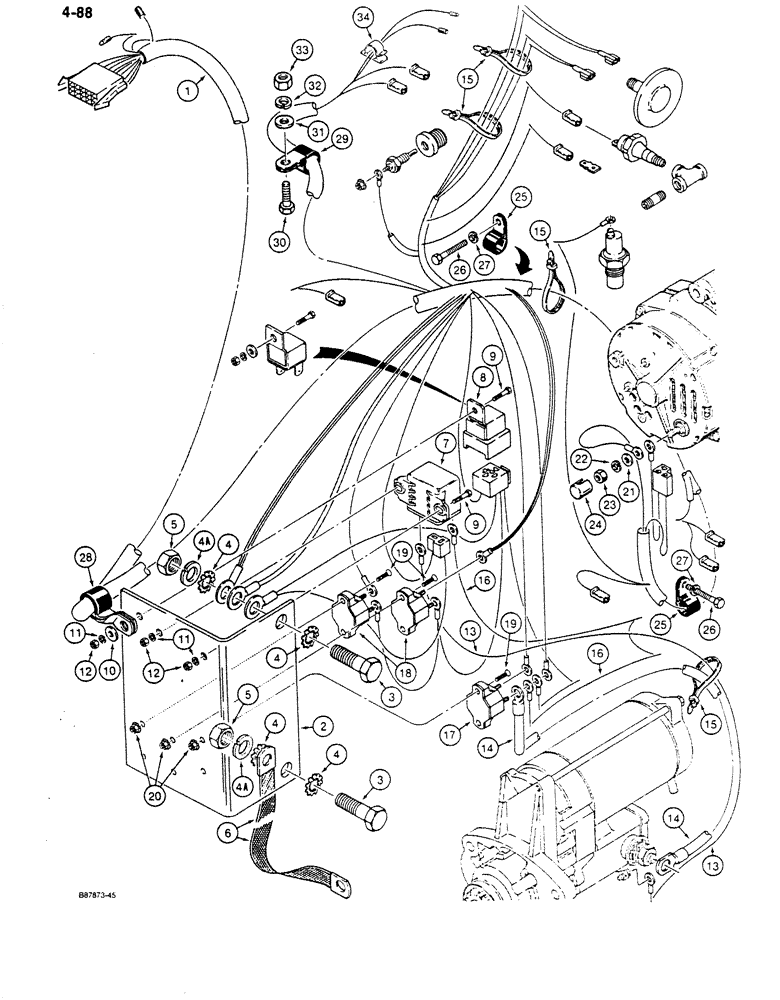

Запчасти Case 680K (4-088) - 24 VOLT ELECTRICAL CIRCUIT, FRONT HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

D131261

HARNESS

- front, used on models with Delco-Remy alternator, for service order D137516 harness kit (Ref. 49 - 52) on Figure 4-90

1шт.

1a

D136816

HARNESS

- front, used on models with Bosch alternator, not shown, for service order D137516 harness kit (Ref. 49 - 52) on Figure 4-90

1шт.

2

D131267

BRACKET

- relay and circuit breaker

1шт.

3

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

4

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - internal-external tooth lock, 1/2", plated

4шт.

4a

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

6

D127106

STRAP

- ground, starter to chassis frame

1шт.

7

120398A1

RELAY

- starter, magnetic switch

1шт.

8

L114539

RELAY

- cab, magnetic switch, no longer available, for service order L118429 relay, 182-127 screw, 192-18 lock washer, 95-3 flat washer, and 129-17 nut (Ref. 44 - 48)

1шт.

9

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/4" - 20 NC x 3/4", plated

2-3шт.

10

95-21031

WASHER,1/4"

- flat, , plated, cab relay only, if used 1/4"

1шт.

11

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2-3шт.

12

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4" - 20 NC, plated

2-3шт.

13

D131303

ELECTRICAL WIRE

WIRE - starter to starter relay

1шт.

14

D131302

CABLE PULLING GRIP

CABLE - starter to 20 ampere circuit breaker

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

16

D131274

ELECTRICAL WIRE

WIRE - starter relay to 20 ampere circuit breaker

1шт.

17

L115179

BREAKER

- circuit, 20 ampere

1шт.

18

L114199

BREAKER

- circuit, 30 ampere

2шт.

19

182-129

SCREW,Sl Pan Hd, #10 - 24 x 1"

- machine, pan head slotted, No. 10 - 24 NC x 1", circuit breaker

6шт.

20

9419337

NUT

ASSEMBLY - includes lock washer, No. 10 - 24 NC, plated

6шт.

21

495-81252

WASHER,#12

(Flat, 1/4" x 9/16" x 1/16"), plated, Harness at alternator #12

1шт.

22

892-1106

LOCK WASHER,M6

plated M6

1шт.

23

825-1406

NUT,M6, Cl 8

1шт.

24

L106774

CAP

- alternator output

1шт.

25

49836

CLAMP

- harness

3шт.

26

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 mm - 1.75 x 25 mm, plated

3шт.

27

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm, plated

3шт.

28

L100108

CLAMP

- 1/2", uses existing cab relay mounting hardware

1шт.

29

49859

CLAMP

- harness

2шт.

30

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", plated

2шт.

31

495-21044

WASHER,3/8"

2шт.

32

492-11038

LOCK WASHER,3/8"

2шт.

33

425-106

NUT,3/8"-16, Cl 5

2шт.

34

L54606

CLIP

- harness, at air cleaner and hydraulic oil filter

1шт.
